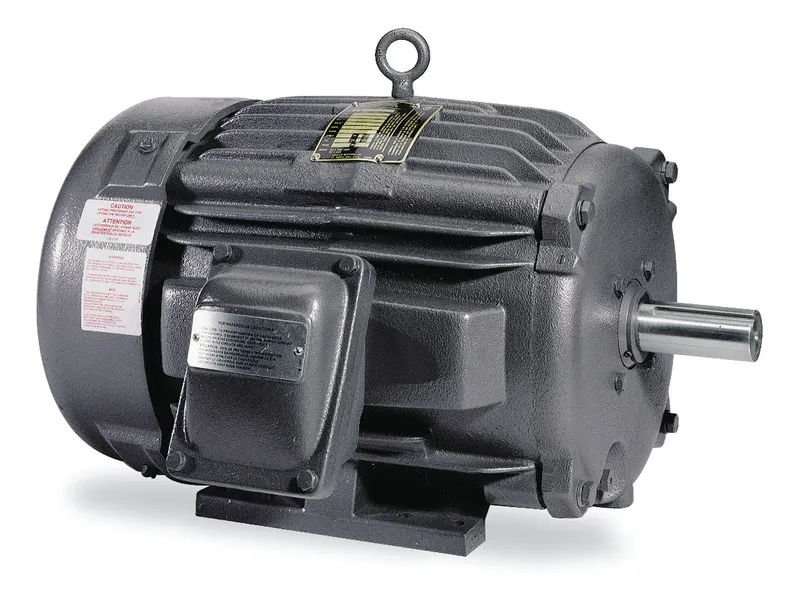

2/3HP,1460/1760RPM,3PH,50/60HZ,182T

Name: 2/3HP,1460/1760RPM,3PH,50/60HZ,182T
Brand: ABB
SKU: EM7142T-C

MPN: EM7142T-C · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can EM7142T-C be shipped?

EM7142T-C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up EM7142T-C in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for EM7142T-C and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EM7142T-C, subject to availability and destination.

2.000 hp, 3.000 hp, 1755//1465 RPM, 3PH, 230/460//190/380 V, 60//50 Hz, XPFC, 182T, F1

Specifications

Additional Information

ABB Type Designation	2/3HP,1460/1760RPM,3PH,50/60HZ,182T
Ambient Temperature	40 °C
Brake Present	No
Brand / Label	Baldor-Reliance
Catalog Number	EM7142T-C
Certification Agency	CSA, CSA EEV, UL, UR
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Design	B
Dimension Diagram	06LYJ016
Efficiency Level	2015 Small Motor Standard, IE3, Not Regulated / Exempt, Premium Efficiency (NEMA 12-12)
Enclosure Type	XPFC
ETIM 7	EC001851 - Electric motor
Explosion Proof Group Class	CLI GP C,D, CLII GP F,G G
Explosion Protection	Explosion-proof
Frame Material	Iron
Frame Size	Undefined
Frequency (f)	50 Hz, 60 Hz Hz
Global Commercial Alias	EM7142T-C
Gross Weight	62.652 kg kg
Horsepower Rating UL/CSA	2.000 Hp, 3.000 Hp
IDEA Granular Category Code (IGCC)	1325 >> General purpose motor AC
Insulation Class	B
Invoice Description	2.000 hp, 3.000 hp, 1755//1465 RPM, 3PH, 230/460//190/380 V, 60//50 Hz, XPFC, 182T, F1 V
Made To Order	No
Marketing Description	2.000 hp, 3.000 hp, 1755//1465 RPM, 3PH, 230/460//190/380 V, 60//50 Hz, XPFC, 182T, F1 V
Minimum Order Quantity	0.000 piece
Motor Base Type	Rigid
Motor Frame Size	182T
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Order Multiple	0.000 piece
Power Factor	77 %
Product Name	Explosion Proof Motors
Product Net Depth / Length	17.56 in
Product Net Weight	62.652 kg kg
Quote Only	No
Rated Current (In)	8.2 A, 4.1 A, 7 A, 3.5 A A
Rated Efficiency	89.5 %
Rated Speed	1,755 r/min, 1,465 r/min
RoHS Declaration	RoHS Compliant
Selling Unit of Measure	piece
Service Factor Percentage	1.00 %
Shaft Diameter	1.125 in
Standards	NEMA
Starting of Motor	Direct On Line
Stocked At (Warehouses)	China, Fort Smith, Arkansas, United States, Alaska, United States
Temperature Class	T4
Type of Duty	CONT
UNSPSC	26101112
Voltage Rating	460 V, 380 V, 230 V, 190 V V
