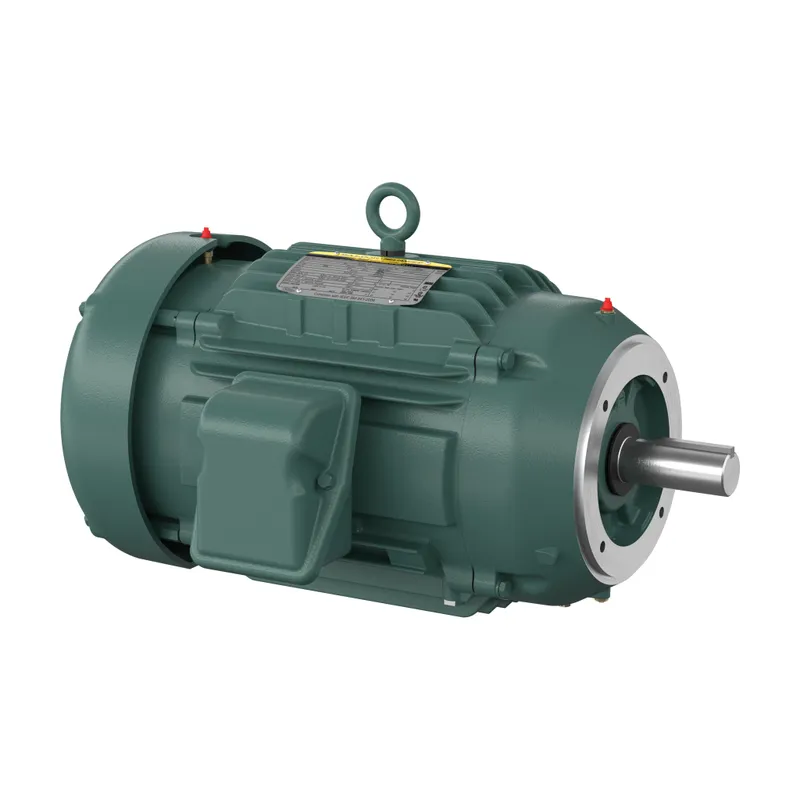

ABB 15HP,3510RPM,3PH,60HZ,254TC,0934M,T

Name: ABB 15HP,3510RPM,3PH,60HZ,254TC,0934M,T
Brand: ABB
SKU: 15HP,3510RPM,3PH,60HZ,254TC,0934M,T

MPN: 15HP,3510RPM,3PH,60HZ,254TC,0934M,T · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	IEEE 841XL Motors
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 15HP,3510RPM,3PH,60HZ,254TC,0934M,T be shipped?

15HP,3510RPM,3PH,60HZ,254TC,0934M,T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 15HP,3510RPM,3PH,60HZ,254TC,0934M,T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 15HP,3510RPM,3PH,60HZ,254TC,0934M,T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 15HP,3510RPM,3PH,60HZ,254TC,0934M,T, subject to availability and destination.

Severe Duty Motor 15 Hp 460 V (VECP82394T-4)

Specifications

Ordering

Catalog Number	VECP82394T-4
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	2P
Number of Speeds	Single Speed
Power Factor	89 %
Rated Efficiency	91 %
Service Factor	1.15
Temperature Class	T3C
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	3600 r/min
Output Power	15 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	TEFC
Explosion Proof Group Class	Class I, Group A, B, C & D A
Frame Material	Cast Iron
Motor Frame Size	254TC
Motor Base Type	No Mounting
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	19.625 in
Product Net Weight	304 lb
Product Net Width	23.75 in
Dimension Diagram	09LYK208

Certificates and Declarations

Certification Agency	CCSA US, CSA EEV, NEMA_PREMIUM, UR
IDEA Granular Category Code (IGCC)	1325 >> General purpose motor AC
ETIM 7	EC001851 - Electric motor
