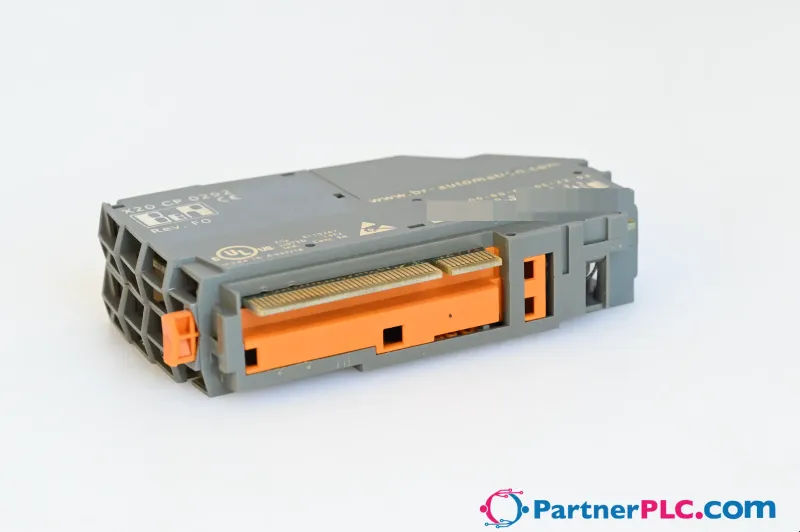

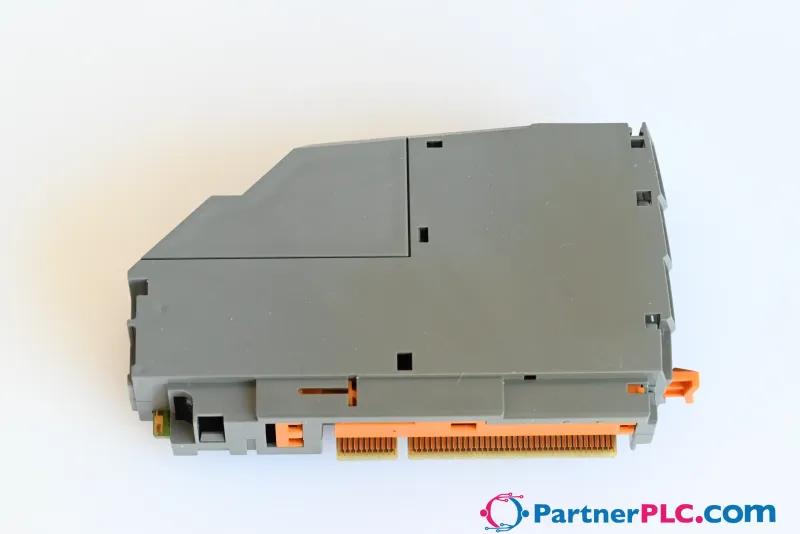

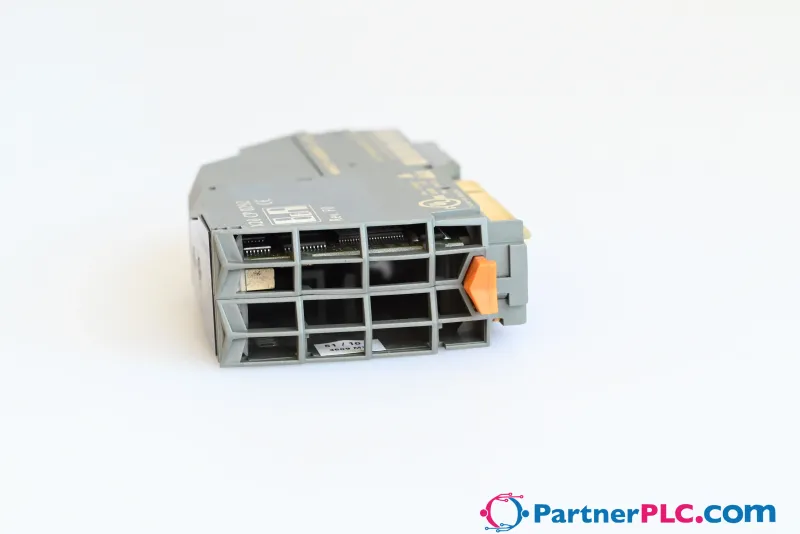

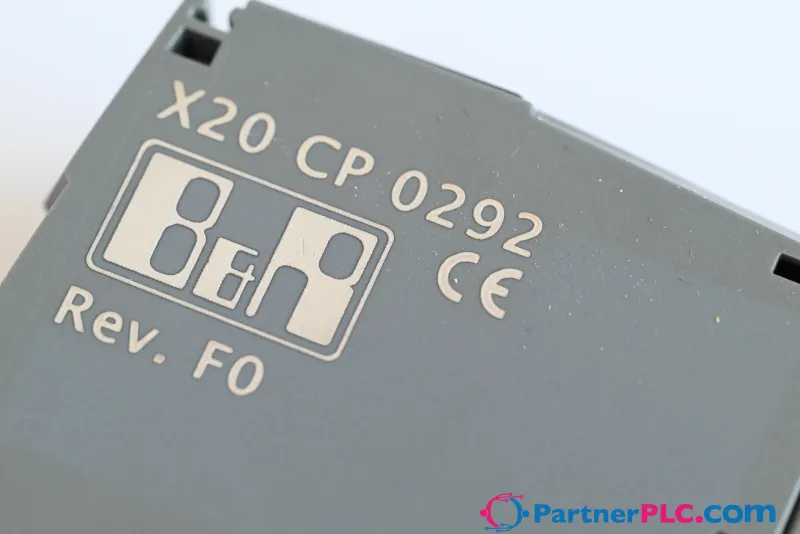

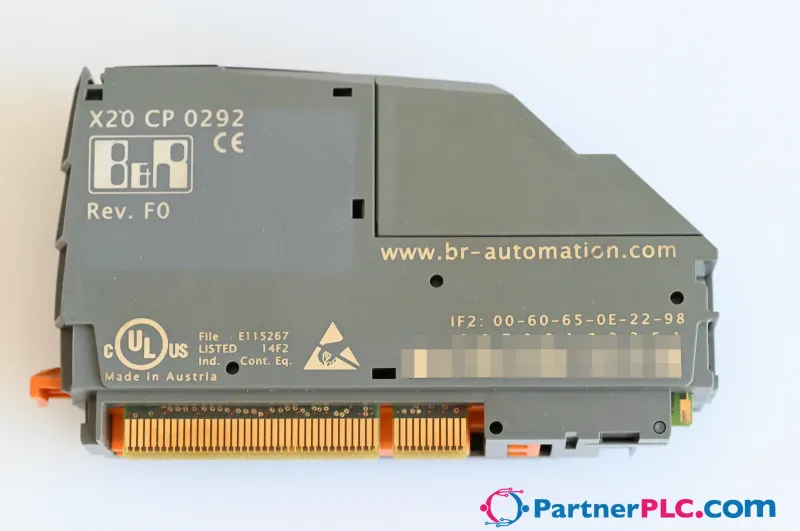

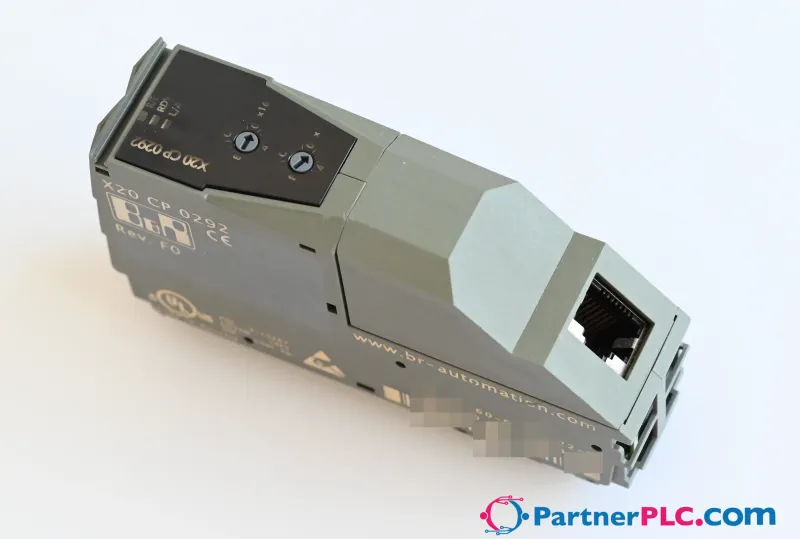

B&R X20CP0292 New Rev. F0 – Embedded µP25 with additional I/O processor
MPN: X20CP0292 · Brand: B&R
€528.94 excl. VAT & shipping
Request a Quote
12-month warranty
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | In stock — 5 available |
| Category | CPU & Controllers |
| Warranty | 12-month |
| Weight | 0.5 kg |
| Country of origin | AT |
Shipping & availability
When can X20CP0292 be shipped?
X20CP0292 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.
Can I pick up X20CP0292 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like X20CP0292.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20CP0292, subject to availability and destination.
• Embedded µP25 with additional I/O processor
• 750 kB User SRAM
• 3 MB User FlashPROM
• Onboard Ethernet
• Only 37.5 mm wide
• Battery-free
The X20CP0292 is the most powerful of the X20 Compact CPUs. Equipped with Embedded μP 25 and additional memory, it is predestined for basic drive and visualization applications.
The network capability of the CPU is ensured by an onboard Ethernet interface.
Accessories
Required accessories (order separately)
| X20TB12 | Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl… |
| X20PS9502 | Undefined — Supply for Compact or Fieldbus CPU, X2X Link network and internal I/O power supply; Cost-effective power supply module for small X20 system… |
| X20PS9500 | Undefined — Supply for Compact or Fieldbus CPU, X2X Link network and internal I/O power supply; Electrical isolation of supply and CPU / X2X Link power… |
| X20BB27 | Undefined — Base for all X20 Compact CPUs; RS232 connection; CAN bus connection; Integrated terminating resistor for CAN bus The bus module is the base… |
| X20BB22 | Undefined — Base for all X20 Compact CPUs; RS232 connection The bus module is the base for all X20 Compact CPUs. The left and right end cover plates ar… |
Specifications
Short description
| Interfaces | 1x onboard Ethernet |
| System module | CPU |
General information
| Diagnostics – CPU function | Yes, using LED status indicator |
| Diagnostics – Ethernet | Yes, using LED status indicator |
| Diagnostics – Overtemperature | Yes, using software |
| Support – ACOPOS support | Yes, via CAN bus |
| Support – Visual Components support | Yes |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5 |
| Certifications – DNV | Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck) |
| Certifications – CCS | Yes |
| Certifications – LR | ENV1 |
| Certifications – KR | Yes |
| Certifications – ABS | Yes |
| Certifications – BV | EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck |
| Certifications – KC | Yes |
| B&R ID code | 0x22A6 |
| Status indicators | CPU function, Ethernet |
| Temperature sensor | Yes |
| Power consumption | 3 W |
| Additional power dissipation caused by actuators (resistive) [W] | - |
Controller
| Processor – Type | Embedded µP 25 |
| Permanent variables – Retention time | >10 years |
| Permanent variables – Memory | 2.75 kB FRAM " data-placement="top" data-html="true" data-container="body" data-content="This FRAM stores its contents ferroelectrically. A backup battery is therefore no longer required."> |
| Standard memory – User PROM | 3 MB FlashPROM |
| Standard memory – User RAM | 750 kB SRAM " data-placement="top" data-html="true" data-container="body" data-content="Not backed up."> |
| Real-time clock " data-placement="top" data-html="true" data-container="body" data-content="The real-time clock is backed up for approx. 1000 hours by a gold foil capacitor. The gold foil capacitor is completely charged after 18 continuous hours of operation."> | Yes, resolution 1 s, -18 to 28 ppm accuracy at 25°C |
| Integrated I/O processor | Processes I/O data points in the background |
| Backup battery | No |
| Shortest task class cycle time | 2 ms |
| Typical instruction cycle time | 0.5 µs |
Interfaces
| Interface IF2 – Physical layer | 100BASE-TX |
| Interface IF2 – Half-duplex | Yes |
| Interface IF2 – Full-duplex | No |
| Interface IF2 – Autonegotiation | No |
| Interface IF2 – Auto-MDI/MDIX | Yes |
| Interface IF2 – Signal | Ethernet |
| Interface IF2 – Variant | 1x RJ45 shielded |
| Interface IF2 – Line length | Max. 100 m between 2 stations (segment length) |
| Interface IF2 – Transfer rate | 100 Mbit/s |
| On base module – X20BB22 " data-placement="top" data-html="true" data-container="body" data-content="For technical data, see the data sheet for power supply module X20PS9500."> | Compact CPU base module with integrated RS232 interface |
| On base module – X20BB27 " data-placement="top" data-html="true" data-container="body" data-content="For technical data, see the data sheet for power supply module X20PS9502."> | Compact CPU base module with integrated RS232 and CAN interface |
Electrical properties
| Electrical isolation | PLC isolated from Ethernet (IF2) |
Operating conditions
| Mounting orientation – Horizontal | Yes |
| Mounting orientation – Vertical | Yes |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Horizontal mounting orientation | -25 to 60°C |
| Temperature – Vertical mounting orientation | -25 to 50°C |
| Temperature – Derating | - |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Note | Order 1x terminal block X20TB12 separately. ; Order 1x power supply module X20PS9500 or X20PS9502 separately.; Order 1x Compact CPU base X20BB22 or X20BB27 separately. |
| Pitch " data-placement="top" data-html="true" data-container="body" data-content="Pitch is based on the width of Compact CPU base X20BB22 or X20BB27. Power supply module X20PS9500 or X20PS9502 is always required for the CPU."> | 37.5 +0.2 mm |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Data sheet X20CP02xx | PDF · 8 MB · 2.25 (06/24/2020) - EN |
| X20 Package leaflet ATEX/CSA | PDF · 2 MB · 1.4 (09/17/2024) |
| X20 System User´s Manual | PDF · 50 MB · 4.40 (03/10/2026) - EN |
CAD & dimension drawings
| 3D File DXF/STEP X20 Electronic module | ZIP · 10 KB · 1.0 (10/17/2005) |
| 3D File DXF/STEP X20CP029X | ZIP · 177 KB · 1.00 (09/24/2019) |
| 3D File STEP X20 I/O-Slice | ZIP · 872 KB · 1.1 (03/13/2019) |
Certificates (12)
| 2226379 CSA Certificate of Compliance X20 X67 | PDF · 205 KB · 2026_09 (09/21/2026) |
| 64331_A1 BV Certificate of Compliance X20 | PDF · 1 MB · 2026_05 (05/05/2026) |
| ABS Certificate of Product Design Assessment - X20 IO Series | PDF · 454 KB · 2.00 (01/13/2025) |
| CCS Type Approval Certificate - X20 | PDF · 285 KB · 1.00 (06/28/2024) |
| E115267 UL Certificate of Compliance X20 | PDF · 3 MB · 2026_08_27 (08/27/2026) |
| EU Data Act - X20 PLC - Connected Product Information Notice | PDF · 91 KB · 1.00 (09/30/2025) |
| FTZU 09 ATEX 0083X | PDF · 771 KB · 3.00 (10/12/2021) |
| KR Type Approval Certificate MIL39390-AC003 (X20 System) | PDF · 320 KB · 2.0 (05/05/2025) |
| Lloyds Register (X20 only) | PDF · 884 KB · 1.30 (07/07/2025) |
| RINA Type Approval Certificate - X20 / Power Panel T30 | PDF · 1 MB · 1.00 (05/07/2021) |
| TAA00000BJ DNV Type Approval Certificate X20 | PDF · 186 KB · 13.0 (05/04/2026) |
| X20, X67 KC certificates | PDF · 7 MB · 2.00 (08/17/2026) |
