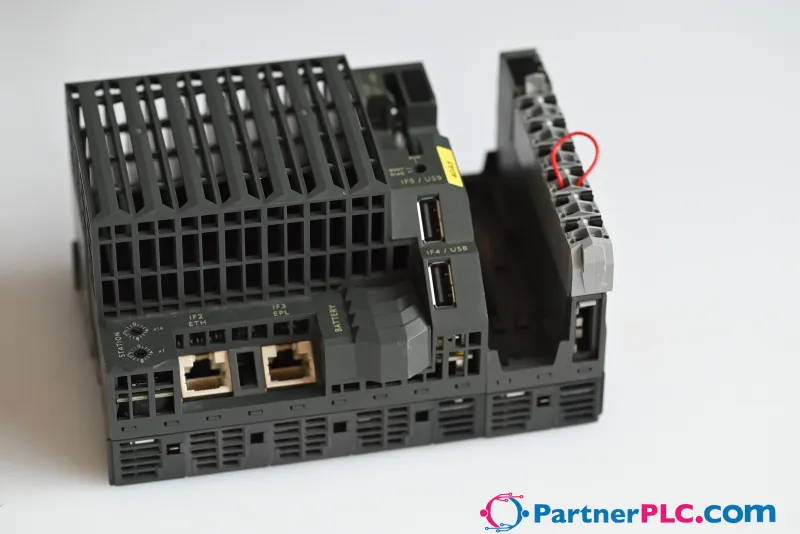

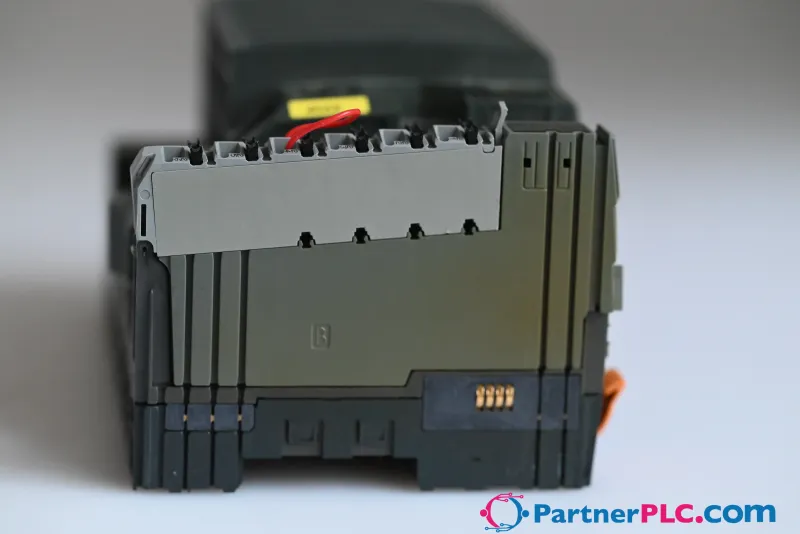

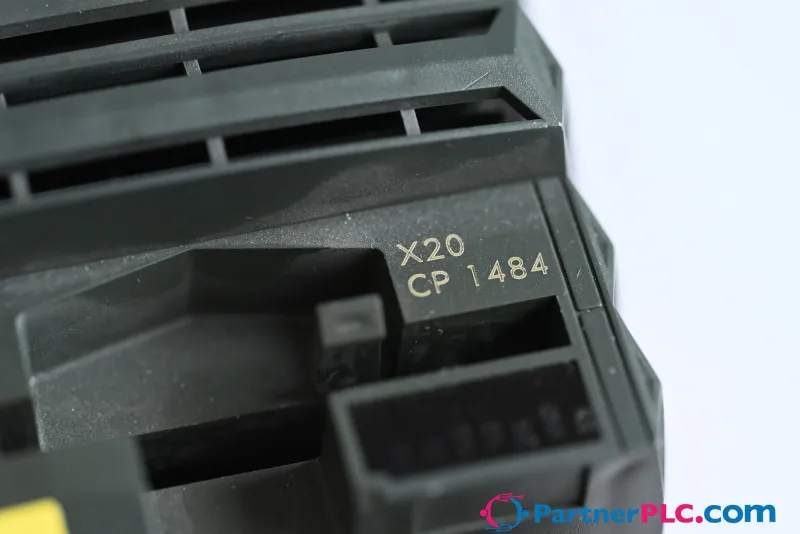

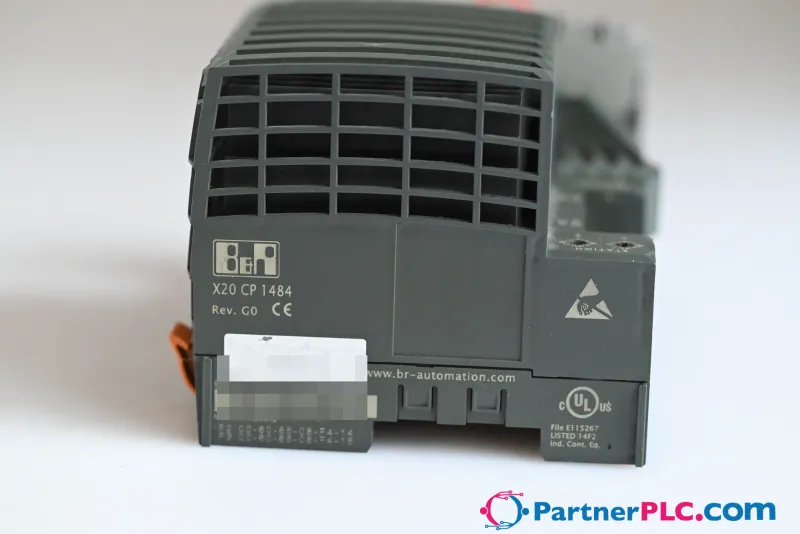

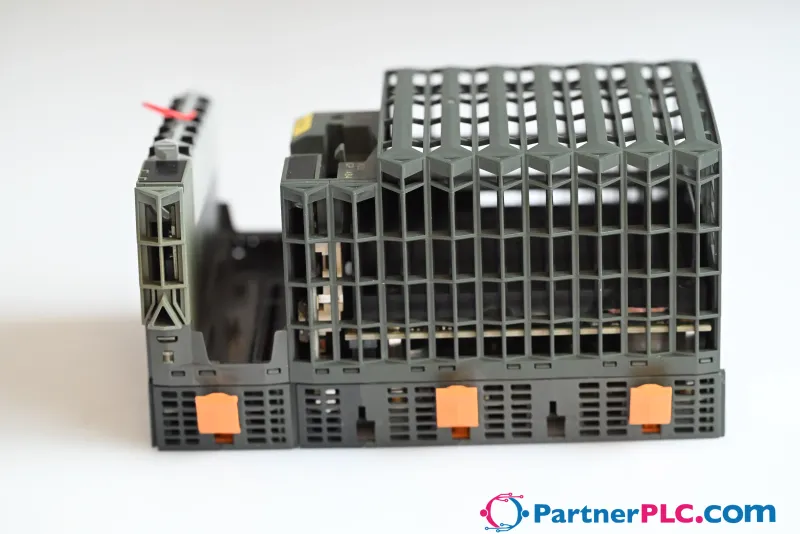

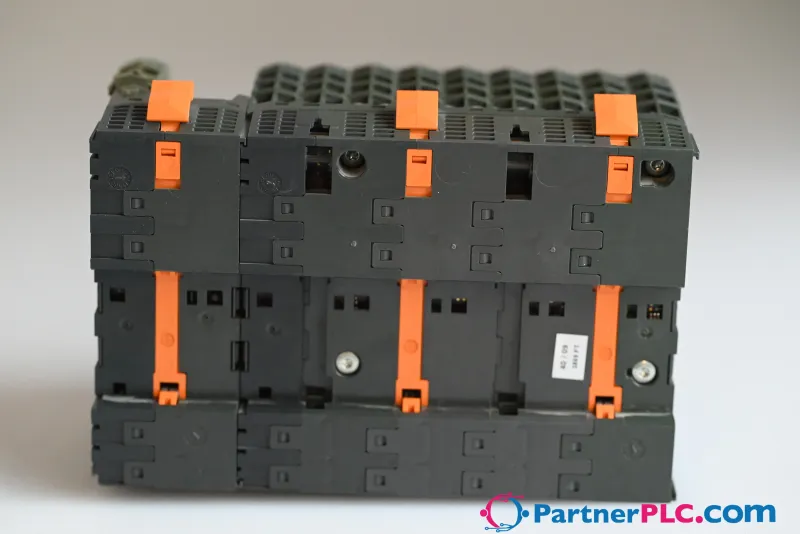

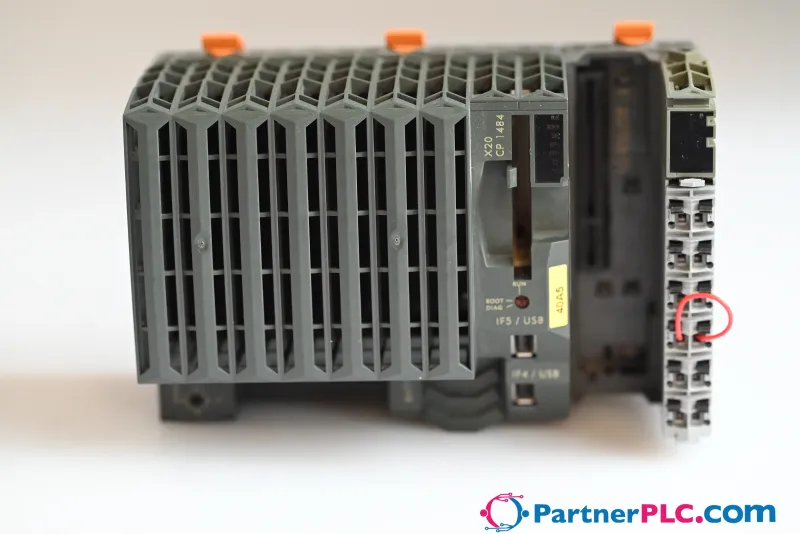

B&R X20CP1484 Used Rev. G0

Name: B&R X20CP1484 Used Rev. G0
Brand: B&R
SKU: X20CP1484
Price: 439.90 EUR
Availability: InStock

MPN: X20CP1484 · Brand: B&R

€439.90 excl. VAT & shipping

Request a Quote

3-month warranty

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	In stock — 1 available
Category	CPU & Controllers
Warranty	3-month
Weight	0.5 kg
Country of origin	AT
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can X20CP1484 be shipped?

X20CP1484 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.

Can I pick up X20CP1484 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like X20CP1484.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20CP1484, subject to availability and destination.

• Intel Celeron 266 Performance with additional I/O processor

• Ethernet, POWERLINK and USB onboard

• 1 slot for modular interface expansion

• CompactFlash as removable application memory

• Fan-free

• Extremely compact

The X20CP1484 is the smallest Celeron based CPU for the X20 System. However, its shortest cycle time of 800 µs still shows its power. The basic features are the same as those of the larger types.

Ethernet and USB are onboard. In addition, the CPU has a POWERLINK connection for real-time communication. The only differences from the X20CP3484 are that the X20CP1484 only has one slot for interface modules and a smaller width.

The CPU models X20CP1484 and X20CP1484-1 differ only by SDRAM size.

Accessories

Required accessories (order separately)

5CFCRD.2048-06	CompactFlash cards — 2 GBSLC flash CompactFlash card
0CFCRD.8192E.02	CompactFlash cards — CompactFlash 8 GB extended temp.
0CFCRD.4096E.02	CompactFlash cards — CompactFlash 4096 MB extended temp.
0CFCRD.2048E.02	CompactFlash cards — CompactFlash 2048 MB extended temp.
0CFCRD.1024E.02	CompactFlash cards — CompactFlash 1024 MB extended temp.
0CFCRD.0512E.02	CompactFlash cards — CompactFlash 512 MB extended temp.
0CFCRD.016GE.02	CompactFlash cards — CompactFlash 16 GB extended temp.

Optional accessories (2)

4A0006.00-000	Batteries — Lithium battery, 3 V / 950 mAh, button cell
0AC201.91	Batteries — Lithium batteries 4 pcs., 3 V / 950 mAh button cell

Specifications

Short description

Interfaces	1x RS232, 1x Ethernet, 1x POWERLINK V1/V2, 2x USB, 1x X2X Link
System module	CPU

General information

Diagnostics – Battery	Yes, using LED status indicator and software
Diagnostics – CPU function	Yes, using LED status indicator
Diagnostics – CompactFlash	Yes, using LED status indicator
Diagnostics – Ethernet	Yes, using LED status indicator
Diagnostics – POWERLINK	Yes, using LED status indicator
Diagnostics – Overtemperature	Yes, using LED status indicator
Support – ACOPOS support	Yes
Support – Visual Components support	Yes
Internal power consumption of X2X Link and I/O power supply " data-placement="top" data-html="true" data-container="body" data-content="The specified values are maximum values. The exact calculation is available for download as a data sheet with the other module documentation on the B&R website."> – Bus	1.42 W
Internal power consumption of X2X Link and I/O power supply " data-placement="top" data-html="true" data-container="body" data-content="The specified values are maximum values. The exact calculation is available for download as a data sheet with the other module documentation on the B&R website."> – Internal I/O	0.6 W
Electrical isolation – IF1 - IF2	Yes
Electrical isolation – IF1 - IF3	Yes
Electrical isolation – IF1 - IF4	No
Electrical isolation – IF1 - IF5	No
Electrical isolation – IF1 - IF6	Yes
Electrical isolation – IF2 - IF4	Yes
Electrical isolation – IF2 - IF5	Yes
Electrical isolation – IF3 - IF4	Yes
Electrical isolation – IF3 - IF5	Yes
Electrical isolation – IF4 - IF5	No
Electrical isolation – IF4 - IF6	Yes
Electrical isolation – IF5 - IF6	Yes
Electrical isolation – PLC - IF1	No
Electrical isolation – PLC - IF2	Yes
Electrical isolation – PLC - IF3	Yes
Electrical isolation – PLC - IF4	No
Electrical isolation – PLC - IF5	No
Electrical isolation – PLC - IF6	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck)
Certifications – CCS	Yes
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck
Certifications – KC	Yes
B&R ID code	0x23A5
Cooling	Fanless
Status indicators	CPU function, overtemperature, Ethernet, POWERLINK, CompactFlash, battery
Diagnostics - Fan	-
Power consumption without memory card, interface module and USB	10.5 W
Additional power dissipation caused by actuators (resistive) [W]	-

CPU and X2X Link power supply

Input voltage	24 VDC -15% / +20%
Input current	Max. 2.2 A
Fuse	Integrated, cannot be replaced
Reverse polarity protection	Yes

X2X Link power supply output

Nominal output power	7 W
Parallel connection	Yes " data-placement="top" data-html="true" data-container="body" data-content="In parallel operation, it is only permitted to expect 75% of the nominal power. It is important to make sure that all power supply units operated in parallel are switched on and off at the same time.">
Redundant operation	Yes

Input I/O power supply

Input voltage	24 VDC -15% / +20%
Fuse	Required line fuse: Max. 10 A, slow-blow

Output I/O power supply

Nominal output voltage	24 VDC
Permissible contact load	10 A

Power supply - General information

Diagnostics – RS232 data transfer	Yes, using LED status indicator
Diagnostics – Module run/error	Yes, using LED status indicator and software
Diagnostics – Overload	Yes, using LED status indicator and software
Electrical isolation – I/O supply - I/O power supply	No
Electrical isolation – CPU/X2X Link supply - CPU/X2X Link power supply	Yes
Status indicators	Overload, operating status, module status, RS232 data transfer

Controller

Processor – Type	Celeron 266 (compatible)
Processor – L2 cache	-
Processor – L1 cache for data and program code	2x 16 kB
Data buffering – Battery monitoring	Yes
Data buffering – Lithium battery	At least 3 years
Standard memory – RAM	32 MB SDRAM
Standard memory – User RAM	1 MB SRAM " data-placement="top" data-html="true" data-container="body" data-content="Minus the set remanent variables.">
CompactFlash slot	1
Real-time clock	Nonvolatile, resolution 1 s, -20 to 20 ppm accuracy at 25°C
FPU	Yes
Integrated I/O processor	Processes I/O data points in the background
Modular interface slots	1
Remanent variables	Max. 64 kB " data-placement="top" data-html="true" data-container="body" data-content="Configurable in Automation Studio.">
Shortest task class cycle time	800 µs
Typical instruction cycle time	0.007 µs

Interfaces

Interface IF1 – Type	RS232
Interface IF1 – Variant	Connection via 12-pin terminal block TB12
Interface IF1 – Transfer rate	Max. 115.2 kbit/s
Interface IF2 – Type	Ethernet
Interface IF2 – Variant	Shielded RJ45
Interface IF2 – Line length	Max. 100 m between 2 stations (segment length)
Interface IF2 – Transfer rate	10/100 Mbit/s
Interface IF3 – Fieldbus	POWERLINK V1/V2
Interface IF3 – Type	100BASE-T (ANSI/IEEE 802.3)
Interface IF3 – Variant	Shielded RJ45
Interface IF3 – Line length	Max. 100 m between 2 stations (segment length)
Interface IF3 – Transfer rate	100 Mbit/s
Interface IF4 – Type	USB 1.1
Interface IF4 – Variant	Type A
Interface IF4 – Max. output current	0.5 A
Interface IF5 – Type	USB 1.1
Interface IF5 – Variant	Type A
Interface IF5 – Max. output current	0.5 A
Interface IF6 – Type	X2X Link master
Interface IF6 – Quantity	1

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	0 to 55°C
Temperature – Vertical mounting orientation	0 to 50°C
Temperature – Derating	-
Temperature – Storage	-25 to 70°C
Temperature – Transport	-25 to 70°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Dimensions – Width	150 mm
Dimensions – Height	99 mm
Dimensions – Depth	85 mm
Note	Order application memory (CompactFlash) separately ; Backup battery included in delivery ; X20 end cover plate (right) included in delivery ; 12-pin X20 terminal block included in delivery ; Interface module slot covers included in delivery
