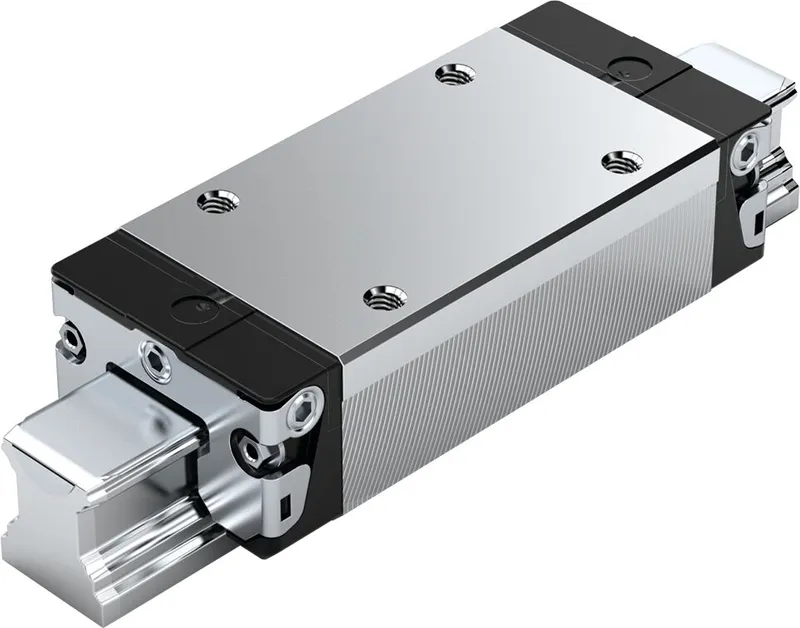

BALL RUNNER BLOCK RESIST NRII KWD-030-SLS-C2-P-0

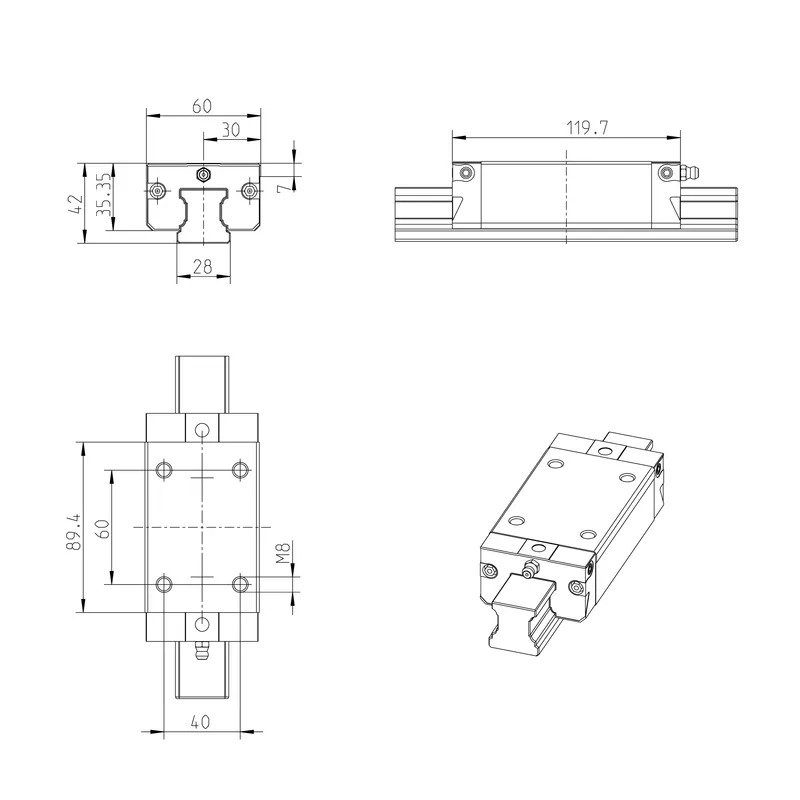

The ball runner block made of Resist NRII is corrosion-resistant and highly precise. Additionally, it is characterized by the following product features:<br>Size 30<br>Format SLS: Width = slimline, length = long, height = standard<br>Runner block body and all steel components made of corrosion-resistant steel as per DIN 10088<br>Preload class C2: Medium preload<br>Accuracy class P: Precision<br>Without ball chain<br>Without preservation<br>Without initial lubrication<br>Without attachment element, left (front reference edge)<br>Without attachment element, right (front reference edge)<br>Straight lube connection loosely attached.<br>Runner block body in standard version<br>Overall length of the runner block = 119.7 mm<br>Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy. Area of application: For restricted space in the transverse direction All metal parts are made of corrosion resistant steel Maximum precision Patented entry zone increases the travel accuracy up to a factor of six Significantly reduced frictional oscillations and low friction force level, particularly under external load Can be used on all SNS ball guide rails Available in five common sizes Lube fittings with metal threads on all sides The same high load ratings in all four main directions of loading Long-term lubrication is possible over several years Minimum quantity lubrication system with integrated reservoir for oil lubrication Optimized entry-zone geometry and high number of balls minimize variation in elastic deflection Attachments on the ball runner block can be mounted from above
