Cold plate or feed-through mounting Parts

Showing 25–34 of 34 partsPage 2 of 2

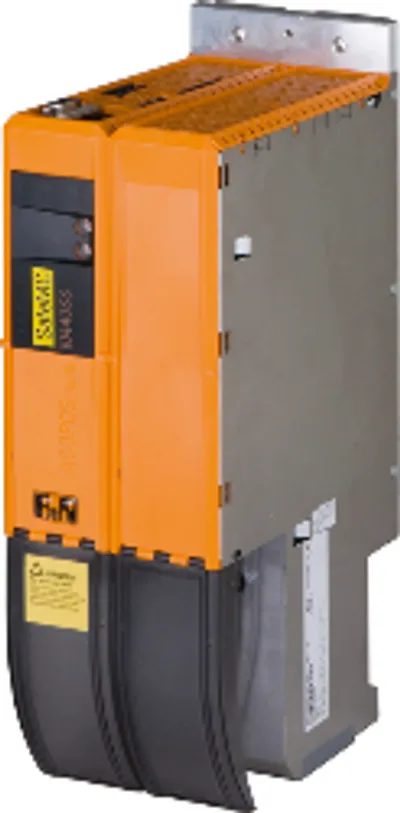

B&R 8BVI0330HCSS.000-4 – ACOPOSmulti3 SafeMOTION EnDat 2.2 Gen2 inverter moduleAvailable on requestB&R 8BVI0330HCSS.000-4 – ACOPOSmulti3 SafeMOTION EnDat 2.2 Gen2 inverter module
MPN: 8BVI0330HCSS.000-4 · B&R
Price on request
Request a quote
B&R 8BVI0660HCSS.008-4 – ACOPOSmulti3 SafeMOTION EnDat 2.2 Gen2 inverter moduleAvailable on requestB&R 8BVI0660HCSS.008-4 – ACOPOSmulti3 SafeMOTION EnDat 2.2 Gen2 inverter module
MPN: 8BVI0660HCSS.008-4 · B&R
Price on request
Request a quote
B&R 8BVI0055HCSA.000-1 – Clearly structured, straightforward implementation via…Available on requestB&R 8BVI0055HCSA.000-1 – Clearly structured, straightforward implementation via…
MPN: 8BVI0055HCSA.000-1 · B&R
Price on request
Request a quote

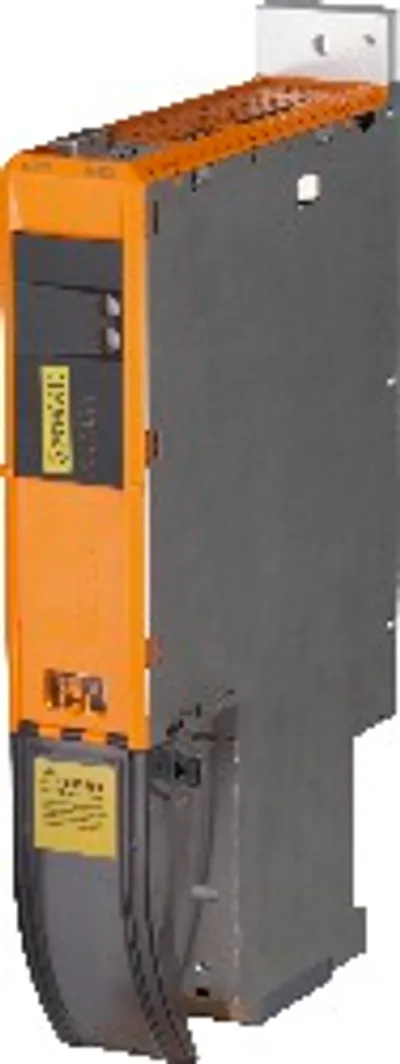

B&R 8BVI0110HCSA.000-1 – ACOPOSmulti SafeMOTION SinCos inverter module, 15.1 A, ASAvailable on requestB&R 8BVI0110HCSA.000-1 – ACOPOSmulti SafeMOTION SinCos inverter module, 15.1 A, AS
MPN: 8BVI0110HCSA.000-1 · B&R
Price on request
Request a quote
B&R 8BVI0440HCSA.000-1 – ACOPOSmulti SafeMOTION SinCos inverter module, 44 A, ASAvailable on requestB&R 8BVI0440HCSA.000-1 – ACOPOSmulti SafeMOTION SinCos inverter module, 44 A, AS
MPN: 8BVI0440HCSA.000-1 · B&R
Price on request
Request a quote

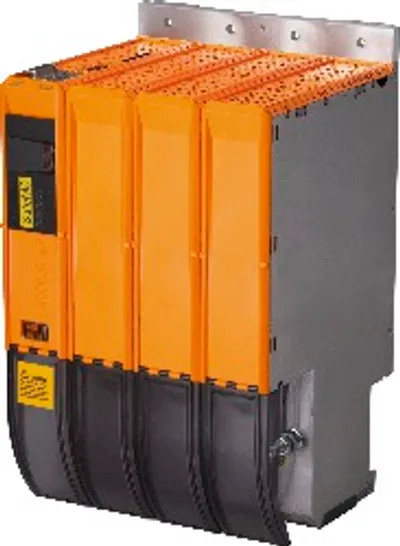

B&R 8BVI0880HCSA.004-1 – ACOPOSmulti SafeMOTION SinCos inverter module, 88 A, ASAvailable on requestB&R 8BVI0880HCSA.004-1 – ACOPOSmulti SafeMOTION SinCos inverter module, 88 A, AS
MPN: 8BVI0880HCSA.004-1 · B&R
Price on request
Request a quote

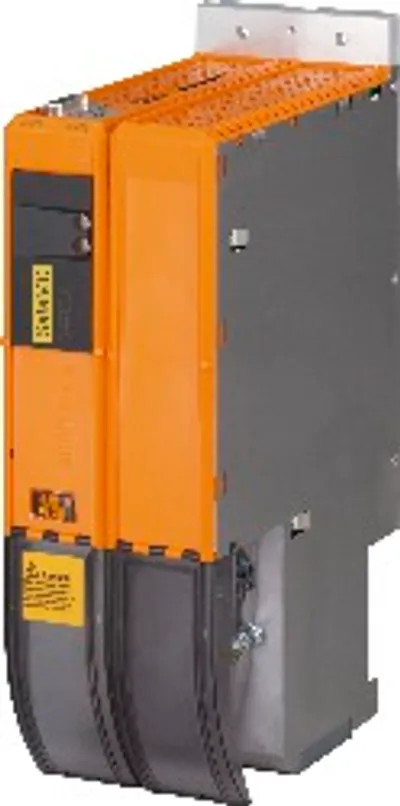

B&R 8BVI0220HCSA.000-1 – ACOPOSmulti SafeMOTION SinCos inverter module, 22 A, ASAvailable on requestB&R 8BVI0220HCSA.000-1 – ACOPOSmulti SafeMOTION SinCos inverter module, 22 A, AS
MPN: 8BVI0220HCSA.000-1 · B&R
Price on request
Request a quote
B&R 8BVI0330HCSA.000-1 – ACOPOSmulti SafeMOTION SinCos inverter module, 33 A, ASAvailable on requestB&R 8BVI0330HCSA.000-1 – ACOPOSmulti SafeMOTION SinCos inverter module, 33 A, AS
MPN: 8BVI0330HCSA.000-1 · B&R
Price on request
Request a quote
B&R 8BVI0660HCSA.000-1 – ACOPOSmulti SafeMOTION SinCos inverter module, 66 A, ASAvailable on requestB&R 8BVI0660HCSA.000-1 – ACOPOSmulti SafeMOTION SinCos inverter module, 66 A, AS
MPN: 8BVI0660HCSA.000-1 · B&R
Price on request
Request a quote
B&R 8BVI0014HCSA.000-1 – ACOPOSmulti SafeMOTION SinCos inverter module, 1.9 A, ASAvailable on requestB&R 8BVI0014HCSA.000-1 – ACOPOSmulti SafeMOTION SinCos inverter module, 1.9 A, AS
MPN: 8BVI0014HCSA.000-1 · B&R
Price on request
Request a quote

Compare Cold plate or feed-through mounting

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNContinuous power consumption " data-placement="top" data-html="true" data-container="body" data-content="Valid under the following conditions: 750 VDC DC bus voltage, 5 kHz switching frequency, 40°C ambient temperature, installation elevation <500 m above sea level, no derating due to cooling type.">Reduction of continuous current depending on installation elevation – Starting at 500 m above sea levelContinuous power per motor connection " data-placement="top" data-html="true" data-container="body" data-content="Valid under the following conditions: 750 VDC DC bus voltage, 5 kHz switching frequency, 40°C ambient temperature, installation elevation <500 m above sea level, no derating due to cooling type.">Continuous current per motor connection " data-placement="top" data-html="true" data-container="body" data-content="Valid under the following conditions: 750 VDC DC bus voltage, 5 kHz switching frequency, 40°C ambient temperature, installation elevation <500 m above sea level, no derating due to cooling type.">Peak current
8BVI0330HCSS.000-424.4 kW3.3 A eff per 1000 m24 kW33 A eff83 A eff
8BVI0660HCSS.008-448.8 kW—48 kW66 A eff132 A eff
8BVI0055HCSA.000-15.6 kW0.76 A eff per 1000 m5.5 kW7.6 A eff18.9 A eff
8BVI0110HCSA.000-111.2 kW1.51 A eff per 1000 m11 kW15.1 A eff37.7 A eff
8BVI0440HCSA.000-132.5 kW4.4 A eff per 1000 m32 kW44 A eff88 A eff
8BVI0880HCSA.004-165 kW8.8 A eff per 1000 m64 kW88 A eff176 A eff
8BVI0220HCSA.000-116.2 kW2.2 A eff per 1000 m16 kW22 A eff55 A eff
8BVI0330HCSA.000-124.4 kW3.3 A eff per 1000 m24 kW33 A eff83 A eff
8BVI0660HCSA.000-148.8 kW6.6 A eff per 1000 m48 kW66 A eff132 A eff
8BVI0014HCSA.000-11.46 kW0.19 A eff per 1000 m1.4 kW1.9 A eff4.7 A eff

Common to all listed parts

Voltage – Nominal750 VDC
Input voltage25 VDC ±1.6%
Output voltage – DC bus voltage (U DC ): 260 to 315 VDC25 VDC * (U DC /315)
Output voltage – DC bus voltage (U DC ): 315 to 800 VDC24 VDC ±6%
Quantity2
Protective measures – Overload protectionYes
Nominal switching frequency5 kHz
Possible switching frequencies " data-placement="top" data-html="true" data-container="body" data-content="B&R recommends operating the module at its nominal switching frequency. Operating the module at a higher switching frequency for application-specific reasons reduces the continuous current and increases CPU utilization.">5 / 10 / 20 kHz
