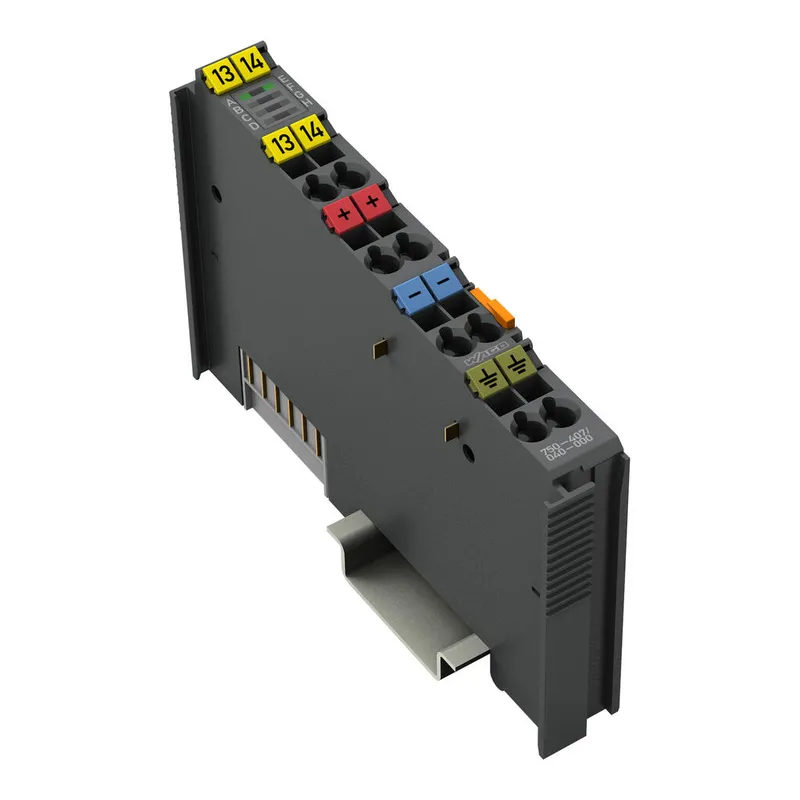

2-channel digital input; 220 VDC; 3 ms; Extreme
رقم القطعة (MPN): 750-407/040-000 · العلامة التجارية: Wago
السعر عند الطلب
طلب عرض سعر
ضمان 12 شهرًا (جديد) · 3 أشهر (مستعمل/مجدد)
إرجاع خلال 30 يومًا، دون رسوم إعادة تخزين على القطع غير المستخدمة
يُشحن عبر
معلومات سريعة
| التوفر | يُؤكَّد عند الطلب |
| الفئة | I/O Systems |
| دورة الحياة | active |
| الضمان | 12 شهرًا (جديد) · 3 أشهر (مستعمل/مجدد) |
الشحن والتوفر
متى يمكن شحن 750-407/040-000؟
750-407/040-000 يُورَّد عند الطلب — اطلب عرض سعر وسنؤكد التوفر الدقيق ومدة الشحن لهذه الوحدة تحديدًا.
هل يمكنني استلام 750-407/040-000 شخصيًا؟
قد يكون الاستلام الشخصي من مستودعنا في غرونينغن، هولندا ممكنًا — تواصل معنا قبل الطلب للتحقق من التوفر وترتيب موعد الاستلام.
هل التوصيل السريع متاح؟
نعم — اذكر ذلك عند طلب عرض سعر لـ750-407/040-000 وسنُدرج خيارات التوصيل السريع في ردنا.
مصنعنا متوقف عن العمل ونحتاج هذا بشكل عاجل — هل يمكنكم المساعدة؟
في حالة عطل حرج، تواصل معنا مباشرة على +31 (0)50-7110348 أو sales@partnerplc.com — يمكننا النظر في توصيل بواسطة ساعٍ في نفس اليوم أو توصيل مخصص عاجل لـ750-407/040-000، حسب التوفر والوجهة.
<p>This digital input module receives control signals from field devices (e.g., sensors).</p><p>The module is a 4-wire device allowing direct connection of sensors with functional ground contact.</p><p>Each input module has a 3.0 ms noise-rejection filter.</p><p>Field and system levels are electrically isolated.</p><p>When using the functional ground CAGE CLAMP<sup>®</sup> connection, the field power must be reapplied after every seven digital input modules (750-407/040-000)!</p><p></p><p><b>The device is ideal for operation in extreme environments thanks to:</b></p><ul><li>An extended temperature range</li><li>Greater immunity to impulse voltages and electromagnetic interference</li><li>Higher vibration and shock resistance</li></ul>
المواصفات
Technical data
| Number of digital inputs | 2 |
| Total number of channels (module) | 2 |
| Signal type | Digital |
| Signal type (voltage) | 220 VDC |
| Sensor supply | 220 VDC |
| Sensor connection | 2 x (2-wire, 3-wire, 4-wire) |
| Input characteristic | high-side switching |
| Input filter | 3 ms |
| Input current per channel for signal (1) typ. | 1.2 mA |
| Voltage range for signal (0) | −3 … +100 VDC |
| Voltage range for signal (1) | 160 … 286 VDC |
| Input data width (internal) max. | 2 Bit |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 5 mA |
| Supply voltage (field) | 220 VDC (-20 … +25 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
| Indicators | LED (A, E) green: Status DI 1, DI 2 |
| Number of incoming power jumper contacts | 3 |
| Number of outgoing power jumper contacts | 3 |
| Current carrying capacity (power jumper contacts) | 10 A |
| Derating | Current via power jumper contacts (max.): 10 mA (surrounding air (operating) temperature < 60 °C); 8 A (surrounding air (operating) temperature: 60 … 70 °C) |
Safety and protection
| Dielectric strength | 2.5 kVAC / 3.5 kVDC; per EN 60870-2-1 |
| Rated impulse withstand voltage | 5.0 kV (EN 60870-2-1 / Class VW3); 4.0 kV (UL 508); 4.0 kV (EN 60664-1 / to 4,000 m ASL); 2.5 kV (EN 60664-1 / > 4,000 m to 5,000 m ASL) |
| Protection type | IP20 |
| Overvoltage category | Nominal voltage 220 V: IV (EN 60664-1 / up to 5,000 m above sea level) |
| Pollution degree | 2 per EN 60664-1 |
Connection data
| Connection technology: I/O | 8 x CAGE CLAMP® (inputs) |
| Connectable conductor materials | Copper |
| Connection type | Input |
| Solid conductor | 0.25 … 2.5 mm² / 24 … 14 AWG |
| Fine-stranded conductor | 0.25 … 2.5 mm² / 24 … 14 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Physical data
| Width | 12 mm / 0.472 inches |
| Height | 100 mm / 3.937 inches |
| Depth | 67.8 mm / 2.669 inches |
| Depth from upper-edge of DIN-rail | 60.6 mm / 2.386 inches |
Mechanical data
| Mounting type | DIN-35 rail |
Material data
| Color | dark gray |
| Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 1.032 MJ |
| Weight | 47 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | -40 … +70 °C |
| Ambient temperature (storage) | -40 … +85 °C |
| Ambient temperature (installation) | -20 … +70 °C |
| Operating altitude | without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.) |
| Mounting position | Horizontal left, horizontal up, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Relative humidity (with condensation) | Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation) |
| Vibration resistance | According to type test for marine classification (ABS, BV, DNV, IACS, LR): acceleration: 5g, IEC 60068-2-6, EN 60870-2-2, IEC 60721-3-1, -3, EN 50155, EN 61373 |
| Shock resistance | per IEC 60068-2-27 (10g/16 ms/half-sine/1,000 shocks; 25g/6 ms/half-sine/1,000 shocks), EN 50155, EN 61373 |
| EMC immunity to interference | per EN 61000-6-1, -2; EN 61131-2; marine applications; EN 50121-3-2; EN 50121-4, -5; EN 60255-26; EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994 |
| EMC emission of interference | per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5 |
| Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| Product Group | 15 (I/O System) |
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4050821481911 |
| Customs tariff number | 85389099990 |
Product Classification
| UNSPSC | 32151705 |
| eCl@ss 10.0 | 27-24-26-04 |
| eCl@ss 9.0 | 27-24-26-04 |
| ETIM 9.0 | EC001599 |
| ETIM 10.0 | EC001599 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 7439-92-1 |
| REACH Candidate List Substance | Diboron trioxide, Lead, Lead monoxide, Perfluorobutane sulfonic acid (PFBS) and its salts |
| RoHS Compliance Status | Compliant,No Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | 80f1a6ee-42ba-4c49-b1d8-ad1ecc20949f |
| SCIP notification number (Belgium) | 08c598fd-b92c-4d93-8672-9e39bbc7af28 |
| SCIP notification number (Bulgaria) | b260d96e-fed8-40ce-bca4-a3bbc5e587fe |
| SCIP notification number (Czech Republic) | c7f54835-71f1-4e3d-811c-ae0020fb7ef1 |
| SCIP notification number (Denmark) | 241695f2-9b38-4f70-b1c0-23cd78661c78 |
| SCIP notification number (Finland) | 48e16d37-2111-4d67-9b26-5402e0a59732 |
| SCIP notification number (France) | 530d12cf-194b-4eb6-bef0-8e6cc29145b0 |
| SCIP notification number (Germany) | 1c40fcca-549c-4dda-bec8-55f885c4bac8 |
| SCIP notification number (Hungary) | 0e9d7b20-c7b8-4bd1-b9c4-6395db5d2900 |
| SCIP notification number (Italy) | 15636019-5f01-406e-af06-81ed108ce853 |
| SCIP notification number (Netherlands) | 5cd45b71-7b1f-4a00-b6be-cb95b15baff3 |
| SCIP notification number (Poland) | 9a607e1f-824a-4631-be52-da15e242031c |
| SCIP notification number (Romania) | 2c17a631-b802-4567-b5f9-116f6f292c4a |
| SCIP notification number (Sweden) | 07f99a6d-33d1-4bb1-a019-b24859a55ffa |
