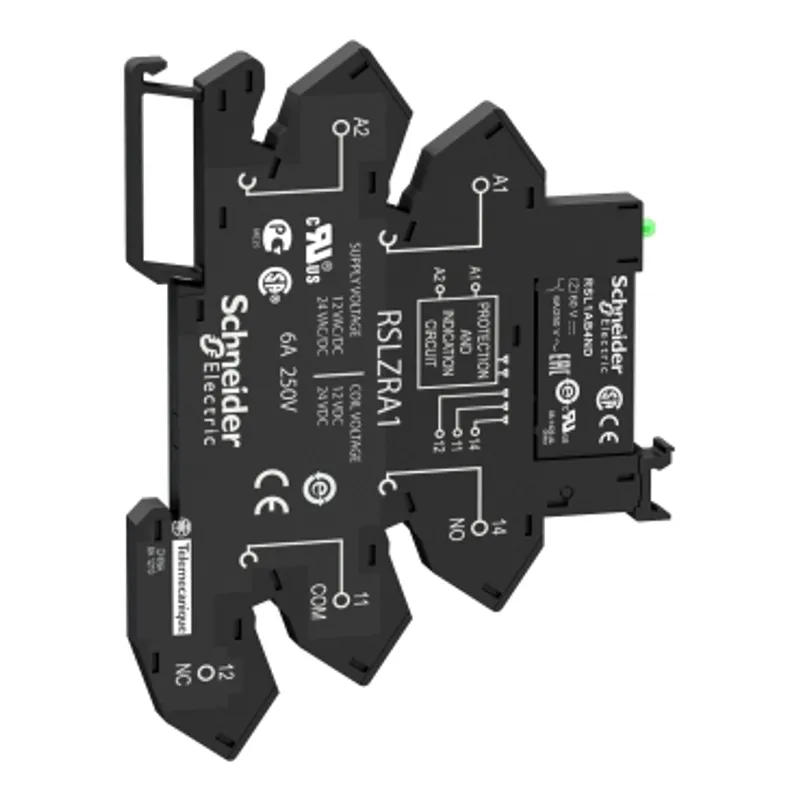

slim interface relay, Harmony Electromechanical Relays, pre assembled, 6A, 1CO, with LED, spring terminals, 230V AC/DC
Teklif İsteyin
Hızlı bilgiler
| Uygunluk | Talep üzerine onaylanır |
| Kategori | Harmony Electromechanical Relays |
| Yaşam döngüsü | active |
| Garanti | 12 ay (yeni) · 3 ay (kullanılmış/yenilenmiş) |
| Ağırlık | 0.03 kg |
Gönderim ve uygunluk
RSL1PRPU ne zaman gönderilebilir?
RSL1PRPU talep üzerine temin ediliyor — bir teklif isteyin, bu spesifik ürün için tam uygunluk ve gönderim süresini onaylayalım.
RSL1PRPU ürününü şahsen teslim alabilir miyim?
Groningen, Hollanda'daki depomuzdan şahsen teslim alma mümkün olabilir — sipariş vermeden önce uygunluğu kontrol etmek ve bir teslim alma zamanı ayarlamak için bizimle iletişime geçin.
Ekspres teslimat mevcut mu?
Evet — RSL1PRPU için teklif isterken bunu belirtin, yanıtımızda ekspres gönderim seçeneklerini de sunalım.
Fabrikamız durdu ve buna acilen ihtiyacımız var — yardımcı olabilir misiniz?
Kritik bir arıza durumunda doğrudan +31 (0)50-7110348 numarasından veya sales@partnerplc.com adresinden bizimle iletişime geçin — uygunluk ve varış yerine bağlı olarak RSL1PRPU için aynı gün kurye veya özel taşıma seçeneklerini değerlendirebiliriz.
This Harmony RSL slim interfacing plug-in relay has a coil control voltage of 60V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 6A. It has large choice of number of contacts for high rated current use. It also offers LED indicator and protection circuit. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. One of the slimiest interface relay on the market, with 6mm width, it can be installed nearly anywhere. It is compatible with high breaking capacity or low-level current application requirements. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night.
Teknik özellikler
Specifications
| Range of product | Harmony Electromechanical Relays |
| Series name | RSL series |
| Product or component type | Pre-assembled plug-in relay with socket |
| Relay type | Slim interface relay |
| Contact operation | Standard |
| Contacts type and composition | 1 C/O |
| status LED | With |
| [Uc] control circuit voltage | 230 V AC/DC |
| [Ithe] conventional enclosed thermal current | 6 A at -40…55 °C |
| fixing mode | Plastic compression spring |
| Average resistance | 20500 Ohm network: DC at 23 °C +/- 10 % |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC |
| [Ie] rated operational current | 6 A 1 C/O (AC-1/DC-1) conforming to IEC/UL |
| minimum switching current | 100 mA |
| Minimum switching voltage | 12 V |
| [Ui] rated insulation voltage | 250 V conforming to IEC, 277 V conforming to cUL |
| Minimum switching capacity | 120 mW |
| Maximum switching voltage | 277 V |
| Drop-out voltage threshold | >= 0.05 Uc |
| Load current | 6 A at 250 V AC 0.5 mm mounting distance |
| Electrical durability | 60000 cycles for resistive load, 6 A at 250 V, AC-1 |
| Maximum switching capacity | 1500 VA, 150 W |
| Operating time | 5 ms reset, 12 ms |
| Terminals description ISO n°1 | (A1-A2)CO, (11-12-14)OC |
| Average coil consumption | 0.17 W, DC |
| Mechanical durability | 10000000 cycles |
| Safety reliability data | B10d = 60000 |
| Operating rate | <= 72000 cycles/hour no-load, <= 360 cycles/hour under load |
| Control type | Without lockable test button |
| Compatibility code | RSL |
| Reset time | 20 ms |
| Contact terminal arrangement | Separate |
| Connections - terminals | Spring terminals, 1 x 0.2...1 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end, Spring terminals, 1 x 0.2...1 x 1.5 mm² (AWG 24...AWG 16) solid without cable end |
| Clamping force | 10…40 N |
| Protection category | RT III |
| Mounting support | 35 mm symmetrical DIN rail |
| Operating position | Any position |
| Test levels | Level A group mounting |
| Device presentation | Complete product |
| Sale per indivisible quantity | 10 |
| Contacts material | Silver alloy (AgSnO2) |
| Shape of pin | Flat (PCB type) |
| Width | 6.2 mm |
| Height | 78.6 mm |
| Depth | 101 mm |
| Net weight | 0.029 kg |
| Input voltage | 230 V AC/DC (input voltage limit: 184...264.5 V) |
| Dielectric strength | 1000 V AC between contacts, 4000 V AC between coil and contact |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Ambient air temperature for operation | -40…70 °C |
| Standards | CSA C22.2 No 14, IEC 61810-1, UL 508 |
| Product certifications | GOST, CSA, UL |
| Marking | CE |
| Ambient air temperature for storage | -40…85 °C |
| Vibration resistance | 10 gn, amplitude = +/- 1 mm (f = 10…150 Hz)10 cycles not operating conforming to IEC 60068-2-6, 5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)10 cycles in operation conforming to IEC 60068-2-6 |
| Shock resistance | 10 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27, 5 gn (duration = 11 ms) for not operating conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 0.700 cm |
| Package 1 Width | 8.000 cm |
| Package 1 Length | 9.700 cm |
| Package 1 Weight | 27.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 8.500 cm |
| Package 2 Width | 7.000 cm |
| Package 2 Length | 10.800 cm |
| Package 2 Weight | 303.000 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 300 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 8.790 kg |
| Warranty (in months) | 18 |
