Accessories; M12 socket, straight; 5-pole
MPN: 756-9412/060-000 · Brand: Wago
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Interface Modules and System Wiring |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 756-9412/060-000 be shipped?
756-9412/060-000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 756-9412/060-000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 756-9412/060-000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 756-9412/060-000, subject to availability and destination.
Accessories; M12 socket, straight; 5-pole 756-9412/060-000
Specifications
Notes

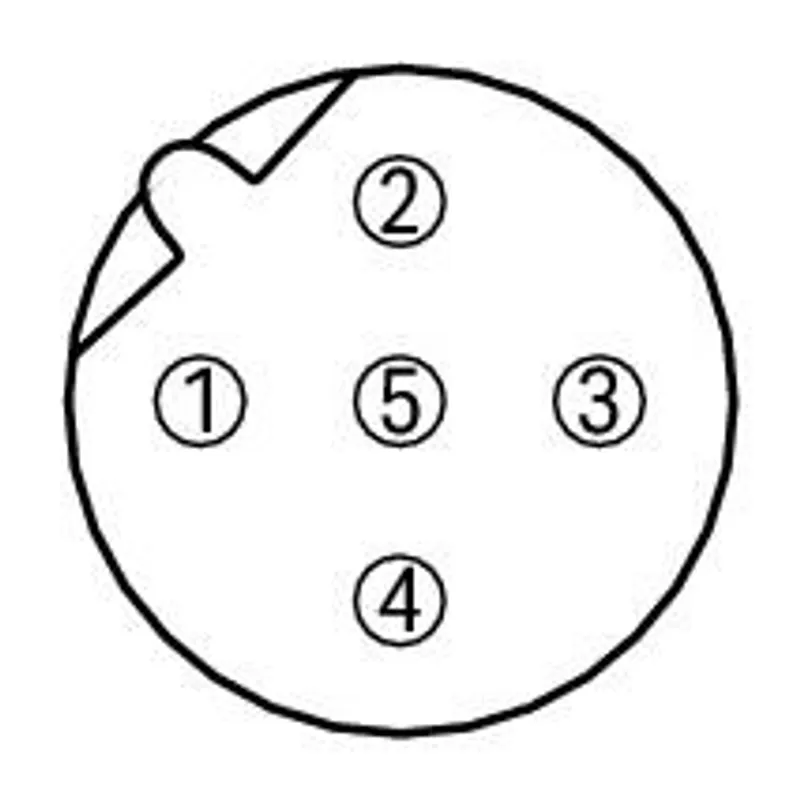

| Note | When assembling S-Bus cables, crimp the four ground wires together in a 0.75 mm² ferrule and connect them to pin 5. S-Bus = System Bus |
Technical data
| Connection type | M12 socket |
| Pole number | 5 |
| Connection point (shielded) | yes |
| Cable connection direction to mating direction | 0 ° |
| Connector interface coding (cable/adapter) 1 1 | B-coded |
| Contact resistance | ≤3 mΩ |
Connection data
| Connection type | Screw clamp technology |
| Solid conductor | 0.14 … 0.75 mm² / 20 AWG |
Mechanical data
| Connectable sheathed cable diameter | 6 … 8 mm |
| Housing material | Die-cast zinc, nickel-plated |
| Contact material | CuZn |
| Contact plating | Gold |
| Seal material | Sealing ring: neoprene; O-ring: Viton |
| Mating cycles (max.) | 100 |
| Weight | 46 g |
Environmental requirements
| Ambient temperature (operation) | -40 … +85 °C |
| Protection type | IP67 |
| Note on protection type | in locked state |
| Pollution degree | 3 |
Commercial data
| Product Group | 23 (I/O passive and accessories) |
| PU (SPU) | 10 pcs |
| Packaging type | Bag |
| Country of origin | DE |
| GTIN | 4066966596205 |
| Customs tariff number | 85366990990 |
Product Classification
| UNSPSC | 39121413 |
| eCl@ss 10.0 | 27-24-26-92 |
| eCl@ss 9.0 | 27-24-26-92 |
| ETIM 9.0 | EC002584 |
| ETIM 10.0 | EC002584 |
| ECCN | NO US CLASSIFICATION |
