Fitted pluggable connector; 8-pole; M12 socket, straight; Screw
MPN: 756-9211/090-000 · Brand: Wago
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Interface Modules and System Wiring |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 756-9211/090-000 be shipped?
756-9211/090-000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 756-9211/090-000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 756-9211/090-000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 756-9211/090-000, subject to availability and destination.

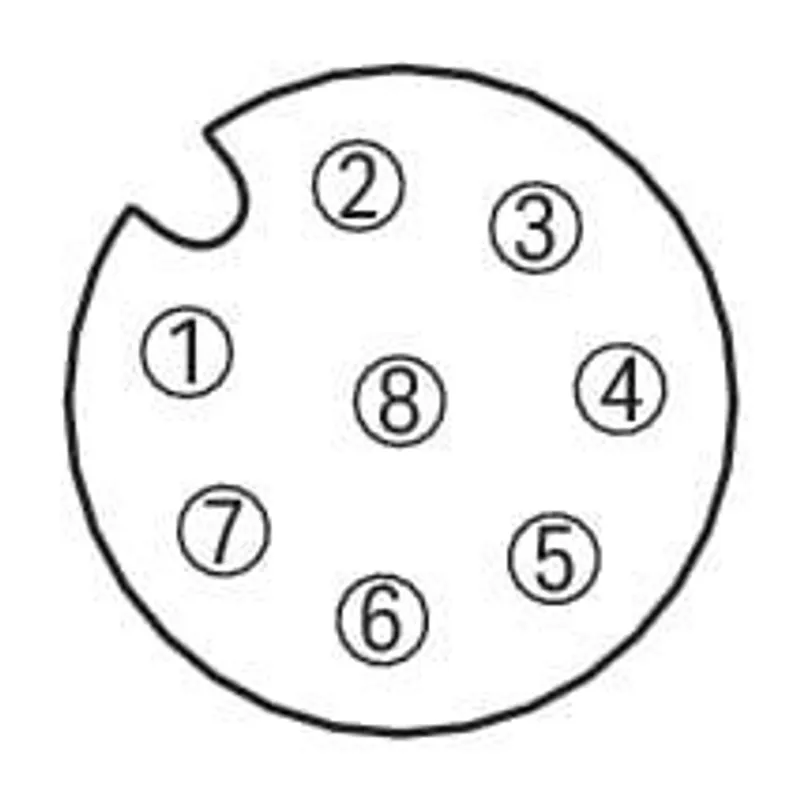

Fitted pluggable connector; 8-pole; M12 socket, straight; Screw 756-9211/090-000
Specifications
Technical data
| Connection type | M12 socket |
| Pole number | 8 |
| Connection point (shielded) | yes |
| Cable connection direction to mating direction | 0 ° |
| Connector interface coding (cable/adapter) 1 1 | A-coded |
Connection data
| Connection type | Screw clamp technology |
| Solid conductor | 0.14 … 0.75 mm² |
Mechanical data
| Connectable sheathed cable diameter | 6 … 8 mm |
| Weight | 47.5 g |
Environmental requirements
| Protection type | IP67 |
Commercial data
| PU (SPU) | 10 pcs |
| Packaging type | Bag |
| Country of origin | DE |
| GTIN | 4066966597172 |
| Customs tariff number | 85366990990 |
Product Classification
| UNSPSC | 39121413 |
| eCl@ss 10.0 | 27-24-26-92 |
| eCl@ss 9.0 | 27-24-26-92 |
| ETIM 9.0 | EC002584 |
| ETIM 10.0 | EC002584 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 38098f9e-7ee9-401e-b4be-72ba076bd5b6 |
| SCIP notification number (Belgium) | 4369367b-f829-4baf-b4a2-118a7cbe2fbe |
| SCIP notification number (Bulgaria) | 61210995-74fb-4657-b433-373cae03abbb |
| SCIP notification number (Czech Republic) | bd0255a5-7bcf-4eb3-a83d-eb02aa0d9882 |
| SCIP notification number (Denmark) | 2ad6a36d-7ff5-4855-9477-41931a2c7222 |
| SCIP notification number (Finland) | b7c6161d-3cc1-4d6d-8fb4-8ade5e52ec16 |
| SCIP notification number (France) | 9acfc8eb-53f9-47be-aee9-147b31e5fe2b |
| SCIP notification number (Germany) | f7752b70-b9c8-4c2d-8e0c-eb6970bf5f3f |
| SCIP notification number (Hungary) | 14bd9de4-6fe5-4e76-9fad-40116e9bef0b |
| SCIP notification number (Italy) | 2abc4c26-b8ee-4e65-b861-09214f83882d |
| SCIP notification number (Netherlands) | eb0e0277-5451-466b-aca6-ea18e14da7ed |
| SCIP notification number (Poland) | e3224180-059f-45e0-9c65-53ba8fda5177 |
| SCIP notification number (Romania) | 5a486f55-4790-423e-a116-49b7afd188c4 |
| SCIP notification number (Sweden) | 53455330-76ed-4bc4-819b-2894ab6d167e |
