Sensor/Actuator cable; M12A socket; straight; M8 plug; angled; 3-pole; Length: 1 m
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Interface Modules and System Wiring |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 756-5502/030-010 be shipped?
756-5502/030-010 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 756-5502/030-010 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 756-5502/030-010 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 756-5502/030-010, subject to availability and destination.
<p><b>Short description:</b></p><ul><li>PUR, halogen-free</li><li>Suitable for drag chains</li><li>Good resistance to microbes, hydrolysis, oil, chemicals and UV radiation. </li><li>Good chemical resistance.</li><li>Cable used: UL listed</li></ul>
Specifications
Technical data - General information
| Operating voltage | AC/DC 60 V |
| Operating current | 4 A |
| Rated impulse withstand voltage | 1.5 kV |
| Insulation resistance | >109 Ω |
| Contact resistance | 10 mΩ |
| Conductor resistance | ≤ 60 Ω/km |
| Pollution degree | 3 per VDE 0110 |
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C |
| Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Technical data - Drag chain compatible
| Bending radius | 10 x cable diameter (min.) |
| Bending cycles | 2 Mio. |
| Acceleration (min.) | 5 |
| Travel speed (max.) | 3.33 |
| Travel path (horizontal) max. | 5 |
| Travel path (vertical) max. | 2 |
| Torsional capacity | 180 |
Technical data - Cable
| Cable length | 1 m |
| Type code | LiF9YH-11YH or LiF9YC11YFHF |
| Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
| Conductor insulation | PP9Y (halogen-free) |
| Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black |
Technical data - Connector

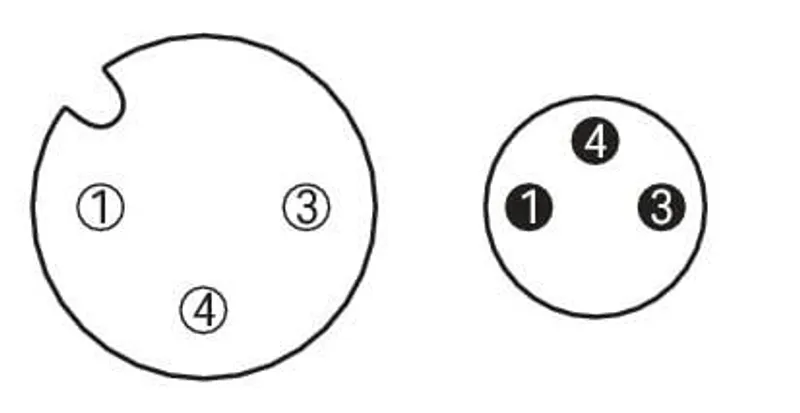

| Connection type | M12 Socket - M8 plug |
| Pole number | 3 |
| Cable connection direction to mating direction | 0 ° |
| Cable connection direction to mating direction (2) | 90 ° |
| Connector interface coding (cable/adapter) 1 1 | A-coded |
| Housing material | Polyurethane (PUR) |
| Contact material | CuSn |
| Tightening torque | 0.6 … 1 Nm |
Commercial data
| PU (SPU) | 10 (1) pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4044918974769 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121609 |
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 571f2937-1635-4ef8-9388-2777db7a0628 |
| SCIP notification number (Belgium) | 70e1dbdf-3593-4e0b-bb29-e24220808ab7 |
| SCIP notification number (Bulgaria) | c44f51a8-fe11-42c1-9536-de5c6bfe17b4 |
| SCIP notification number (Czech Republic) | 354e03ec-1eb0-4494-8fd7-7271926e780f |
| SCIP notification number (Denmark) | 2b97e565-3b79-4425-8101-a0ccf7288bf4 |
| SCIP notification number (Finland) | ce89dc46-42ec-452a-95b6-7f47710419d8 |
| SCIP notification number (France) | 85f9191b-8fe3-424d-8d73-6b8fc38e6117 |
| SCIP notification number (Germany) | cc7b86fa-5745-4a2b-8047-8b61c9f1e3c8 |
| SCIP notification number (Hungary) | bceab832-812a-4297-9df6-b3820b17624b |
| SCIP notification number (Italy) | ee5ed388-e506-4b10-ae62-ce34b6bfbb92 |
| SCIP notification number (Netherlands) | 6dade569-cb22-407b-bcf3-bbf471ffebf2 |
| SCIP notification number (Poland) | 85cf7bc4-025b-4c76-a341-0add37e61c92 |
| SCIP notification number (Romania) | 40224392-ec41-452f-bfe8-dafebec7bba6 |
| SCIP notification number (Sweden) | 3e32b527-2592-424c-be56-8b8cbe7f372d |
