Proportional valve module; 2-,3-,4-wire connection
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | I/O Systems |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 750-1632/000-100 be shipped?
750-1632/000-100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 750-1632/000-100 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 750-1632/000-100 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 750-1632/000-100, subject to availability and destination.

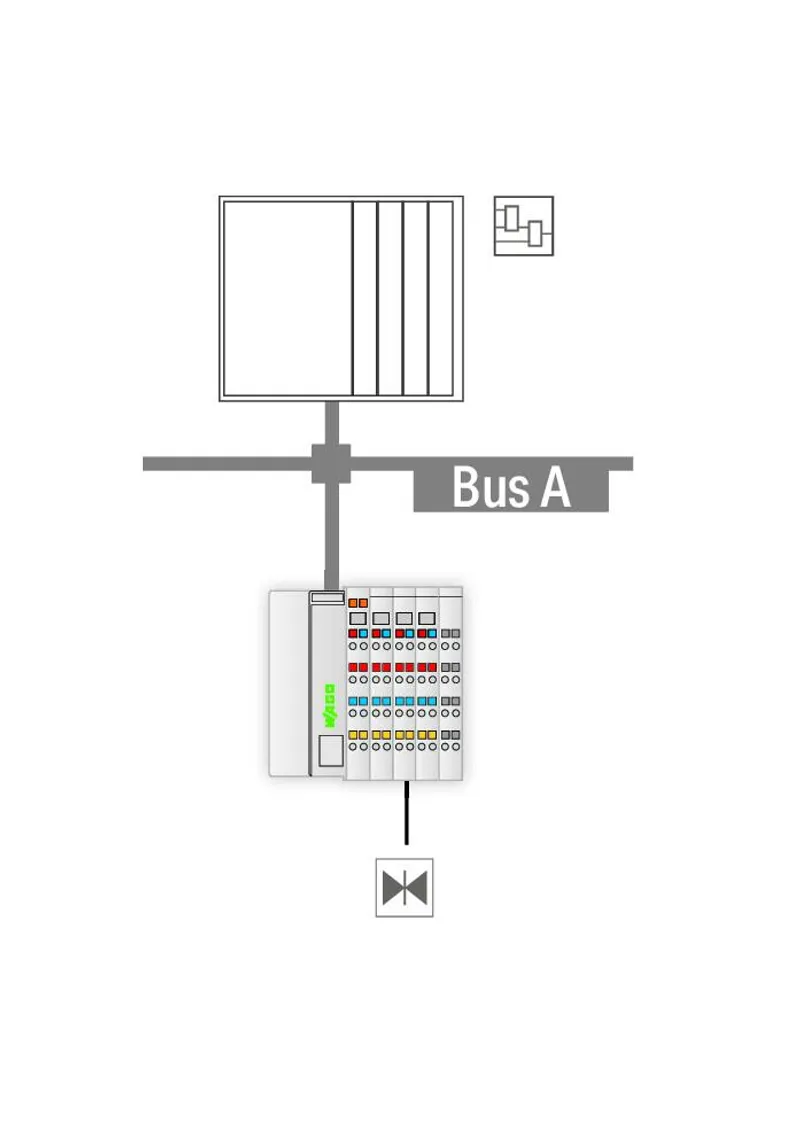

<p>The 750-1632/000-100 Proportional Valve Module controls two single-coil valves with up to 24 V/1.6 A or one valve with up to 24 V/2 A. The module features two current-controlled PWM* outputs with adjustable dithering.</p><p> </p><p>Both unipolar and bipolar valve control are possible. Additionally, operation of a valve with two unipolar coils is also provided. A two-channel module may also be used for simple applications. Characteristic curve adaptations, such as zero offset, dual gain compensation or range limitations, can be adjusted via parameters.</p><p> </p><p>Scaling and configurable up/down ramps let you adapt the setpoints to the specific application. Two additional digital inputs are available, e.g., for monitoring threshold value switches. Commissioning and valve parameters adjustment are performed via the WAGO-I/O-CHECK software or the controller.</p><p> </p><p>*PWM = Pulse width modulation</p>
Specifications
Technical data
| Number of digital inputs | 2 |

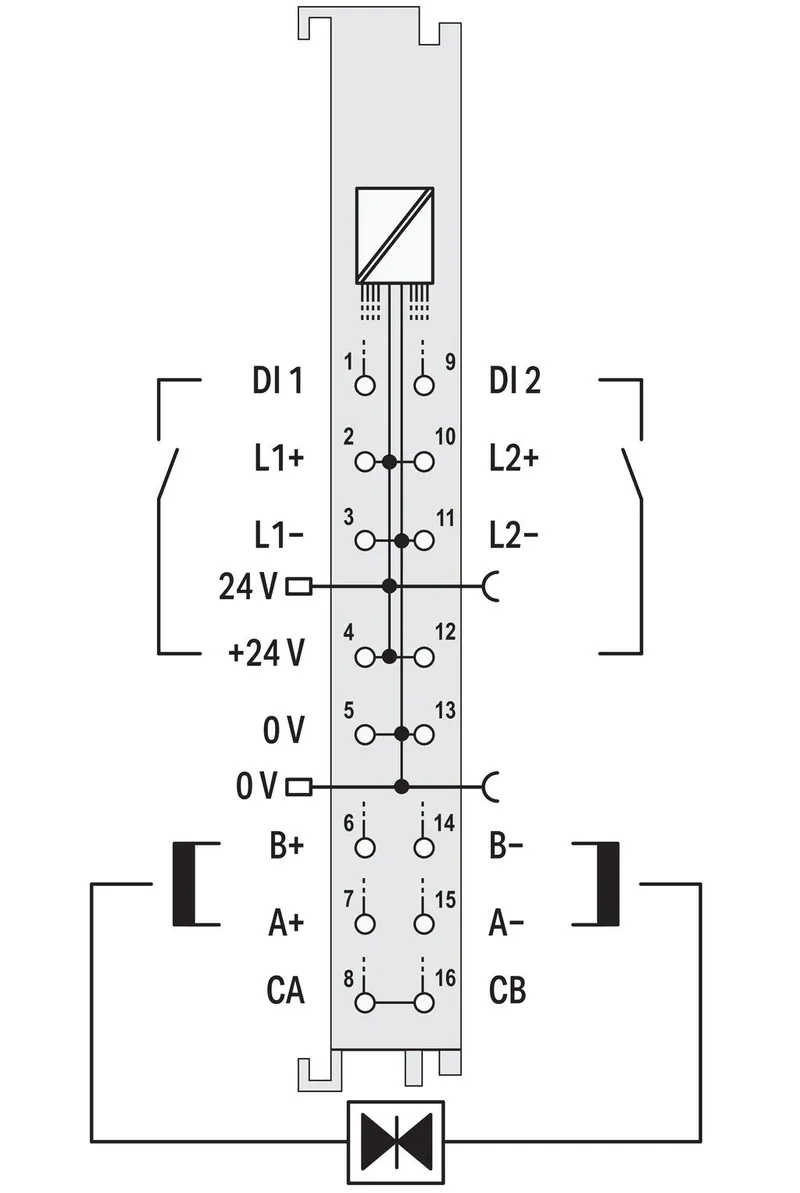

| Number of outputs | 2 bipolar outputs (A+, A- and B+, B-) |
| Type of output | H-bridge output with current-regulated PWM output (short-circuit-proof and thermal overload-proof for each channel) |
| Input characteristic | high-side switching |
| Input characteristic | Type 1 |
| Input current (typ.) | 2.7 mA at 24 V |
| Output current | 1-channel operation: 2 A; 2-channel operation: 1.6 A per channel |
| Load type | Operating range: inductive (1 mH … 600 mH); Internal load resistance (> 8 Ohm) |
| PWM frequency (typ.) | 25 kHz |
| Data width | 6 bytes: single-channel operating mode; 12 bytes: dual-channel operating mode |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 125 mA |
| Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
| Current consumption, field supply (module with no external load) | 20 mA |
| Isolation | 500 V system/field |
| Indicators | LED (1, 8, 9, 15) green: Signal Status DI 1, Undervoltage, Signal Status DI 2, Parameterization Status; LED (3, 5, 11, 13) yellow: Setpoint, Dithering Channel A, B; LED (4, 6) red/green: Status Channel A, B; LED (7, 16) red: Initialization, Error |
| Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 |
Connection data
| Connection technology: I/O | 16 x Push-in CAGE CLAMP® |
| Connectable conductor materials | Copper |
| Connection type | Input/output |
| Solid conductor | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Fine-stranded conductor | 0.25 … 1.5 mm² / 22 … 16 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
| Connection requirement (permissible cable length) | 30 m |
| Connection requirement (permissible cable type) | Outputs |
| Note (conductor cross-section) | Coil connections A+/A-/B+/B-: 1.5 mm²/16 AWG; For use according to UL 508: 16 AWG for all connections |
| Temperature range of connection cable | The permissible temperature range of the connecting cable must be selected based on the installation position and current load, as the terminal connection temperature may exceed the maximum expected ambient temperature by up to 25°C (at 10 A). |
Physical data
| Width | 12 mm / 0.472 inches |
| Height | 100 mm / 3.937 inches |
| Depth | 69 mm / 2.717 inches |
| Depth from upper-edge of DIN-rail | 61.8 mm / 2.433 inches |
Mechanical data
| Mounting type | DIN-35 rail |
| Pluggable connector | fixed |
Material data
| Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 0.625 MJ |
| Weight | 53.6 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | 0 … +55 °C |
| Ambient temperature (storage) | -25 … +85 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Vibration resistance | 4g per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2, marine applications |
| EMC emission of interference | per EN 61000-6-4, marine applications |
| Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4066966488470 |
| Customs tariff number | 85389099990 |
Product Classification
| UNSPSC | 32151705 |
| ETIM 9.0 | EC001601 |
| ETIM 10.0 | EC001601 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 7439-92-1 |
| REACH Candidate List Substance | Diboron trioxide, Lead, Lead monoxide |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
