System cable; for WAGO-I/O-SYSTEM, 750 Series; 2x 8 digital inputs or outputs; Length: 2 m; Conductor cross-section: 0.14 mm²
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Interface Modules and System Wiring |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 706-7753/306-200 be shipped?
706-7753/306-200 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 706-7753/306-200 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 706-7753/306-200 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 706-7753/306-200, subject to availability and destination.
<p><b>Short description:</b></p><p>WAGO's Interface Cables provide fast and easy connection of WAGO I/O Modules equipped with a 20-pole pluggable connector. The following WAGO I/O Modules and Interface Adapters are compatible:</p><ul><li>750-1500 (16 DO) --> 857-986 (DO)</li><li>The cables are available in 1-, 2- and 3-meter lengths; each has one 20-pole or two 15-pole pluggable connectors at both ends.</li><li>They are suitable for system wiring when paired with the 857-986 Interface Adapter.</li></ul>
Specifications
Notes
| Note | When using more than 10 wires, the maximum current per wire must be reduced to 0.7 A. |
Electrical data
| Inputs/outputs | 2 x 8 digital inputs or outputs |
| Operating voltage | ≤ 35 VAC/VDC |
| Current per wire (max.) | 1 A |
Connection data
| Cable type | LiYY |

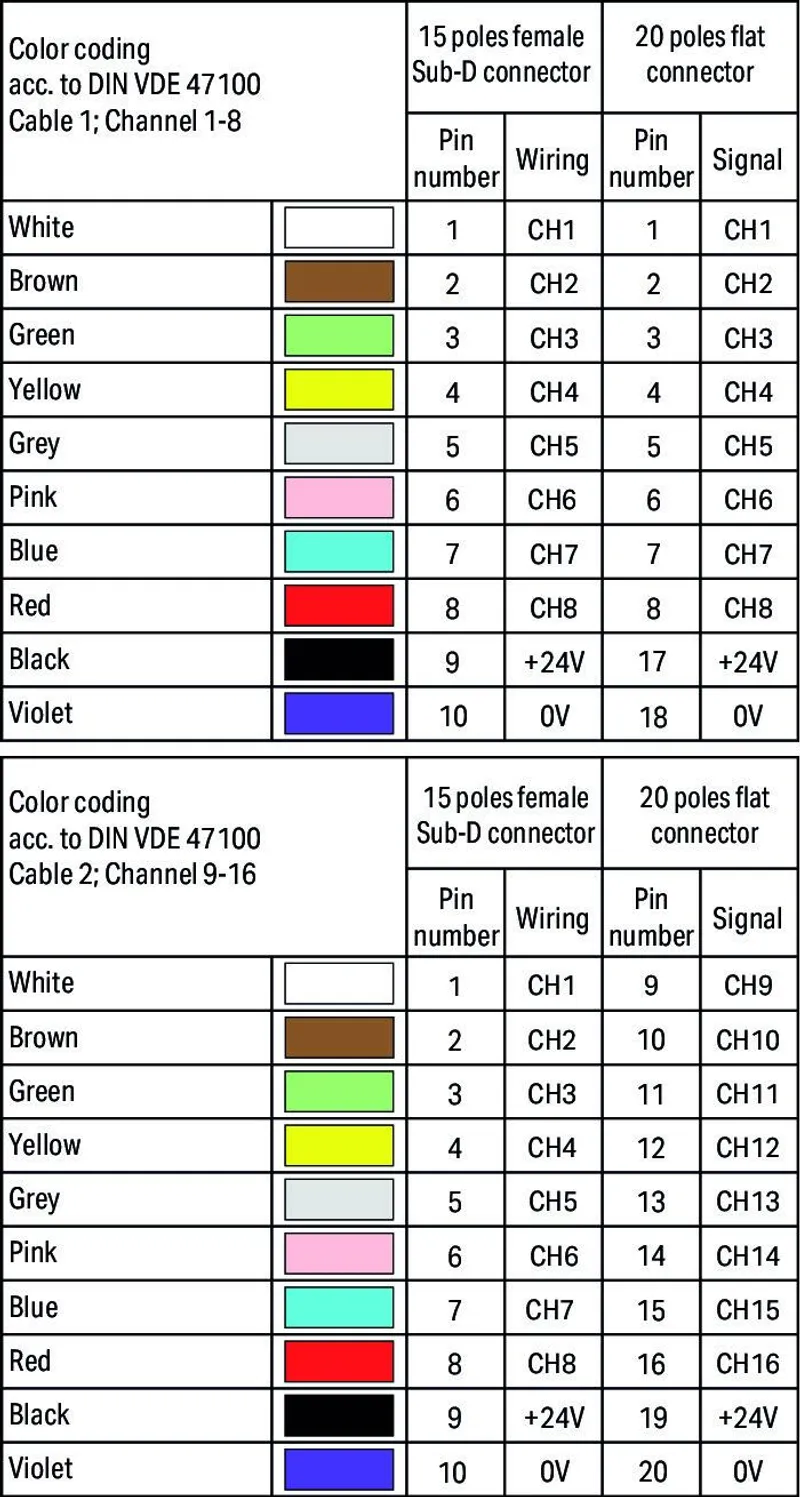

| Color code | per DIN VDE 47100 |
Connection data - Connection 1
| Pluggable connector | Pluggable connector per DIN 41651; female connector |
| Pole number 1 | 20 |
| Connection type | System |
| Wire cross-section | 0.14 mm² |
Connection data - Connection 2
| Connector | D-sub female connector |
| Pole number | 15 |
| Connection type | System |
| Wire cross-section | 0.14 mm² |
Connection data - Connection 3
| Connector | D-sub female connector |
| Pole number | 15 |
| Connection type | System |
Physical data
| Cable length | 2 m |
Material data
| Weight | 10 g |
Environmental requirements
| Ambient temperature (operation) | -20 … +50 °C |
Commercial data
| Product Group | 30 (WAGO France) |
| PU (SPU) | 1 pcs |
| Packaging type | box |
| Country of origin | FR |
| GTIN | 4050821052951 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121604 |
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC000237 |
| ETIM 10.0 | EC000237 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
