System cable; for Schneider Modicon Quantum; 16 digital inputs and 8 digital outputs; Length: 3 m; Conductor cross-section: 0.14 mm²
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Interface Modules and System Wiring |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 706-3140/302-300 be shipped?
706-3140/302-300 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 706-3140/302-300 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 706-3140/302-300 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 706-3140/302-300, subject to availability and destination.
System cable; for Schneider Modicon Quantum; 16 digital inputs and 8 digital outputs; Length: 3 m; Conductor cross-section: 0.14 mm² 706-3140/302-300
Specifications
Notes
| Note | When using more than 10 wires, the maximum current per wire must be reduced to 0.7 A. |
Electrical data
| Inputs/outputs | 16 digital inputs and 8 digital outputs |
| Operating voltage | ≤ 35 VAC/VDC |
| Current per wire (max.) | 1 A |
Compatibility - Schneider
| Schneider Modicon Quantum | 140 DDM 390 00 |
Connection data
| Cable type | LiYY |

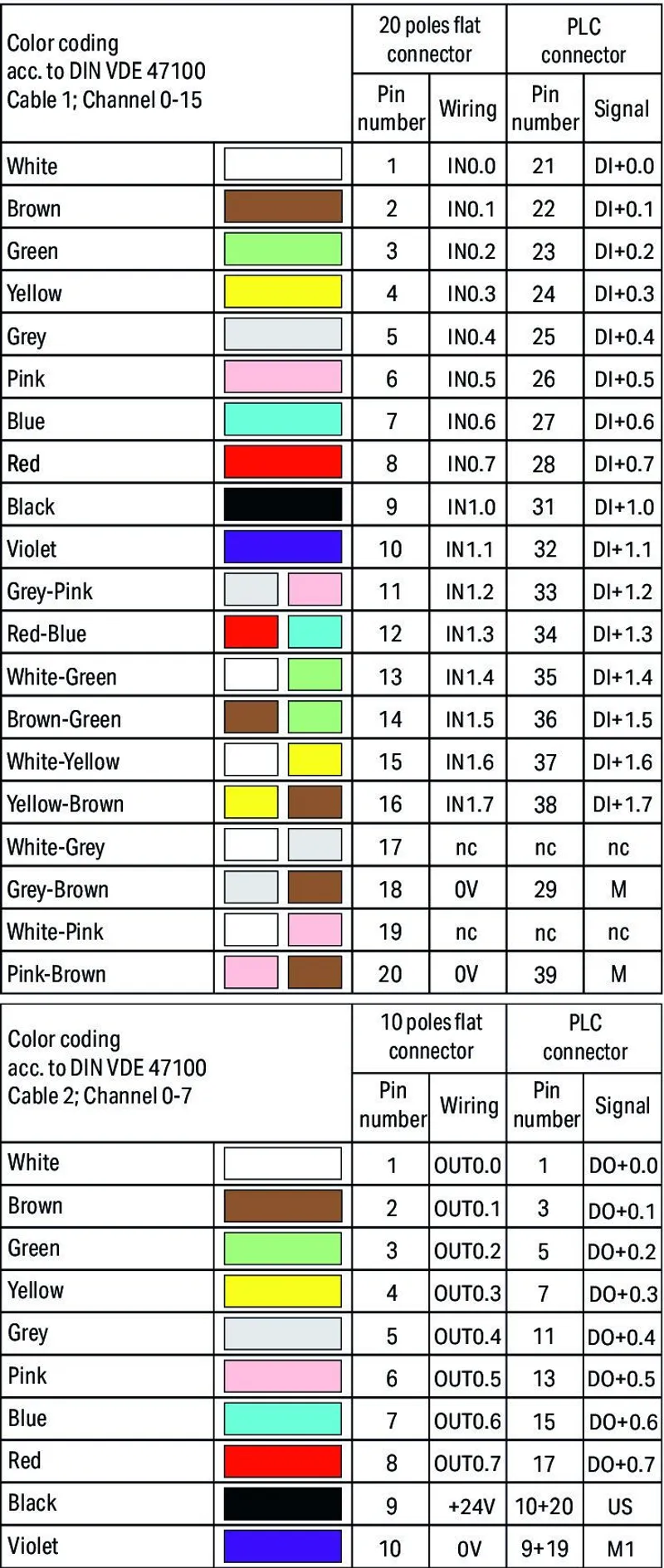

| Color code | per DIN VDE 47100 |
Connection data - Connection 1
| Pluggable connector | Pluggable connector per DIN 41651; female connector |
| Pole number 1 | 10 |
| Connection type | System |
| Wire cross-section | 0.14 mm² |
Connection data - Connection 2
| Connector | Pluggable connector per DIN 41651; female connector |
| Pole number | 20 |
| Connection type | System |
| Wire cross-section | 0.14 mm² |
Connection data - Connection 3
| Connector | Schneider 140XTS00200 |
| Pole number | 40 |
| Connection type | System |
Physical data
| Cable length | 3 m |
Material data
| Weight | 1.1 g |
Environmental requirements
| Ambient temperature (operation) | -20 … +50 °C |
Commercial data
| PU (SPU) | 1 pcs |
| Packaging type | box |
| GTIN | 4055143046114 |
Product Classification
| UNSPSC | 26121629 |
| ETIM 9.0 | EC000237 |
| ETIM 10.0 | EC000237 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
