System cable; for Siemens S7-1500; 8 analog inputs or outputs; D-subminiature; Length: 2 m
MPN: 706-2500/409-200 · Brand: Wago
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Interface Modules and System Wiring |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 706-2500/409-200 be shipped?
706-2500/409-200 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 706-2500/409-200 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 706-2500/409-200 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 706-2500/409-200, subject to availability and destination.
System cable; for Siemens S7-1500; 8 analog inputs or outputs; D-subminiature; Length: 2 m 706-2500/409-200
Specifications
Notes
| Note | When using more than 10 wires, the maximum current per wire must be reduced to 1 A. |
Electrical data
| Inputs/outputs | 8 analog inputs or outputs |
| Operating voltage | ≤ 35 VAC/VDC |
| Current per wire (max.) | 2 A |
Connection data
| Cable type | LiYCY |

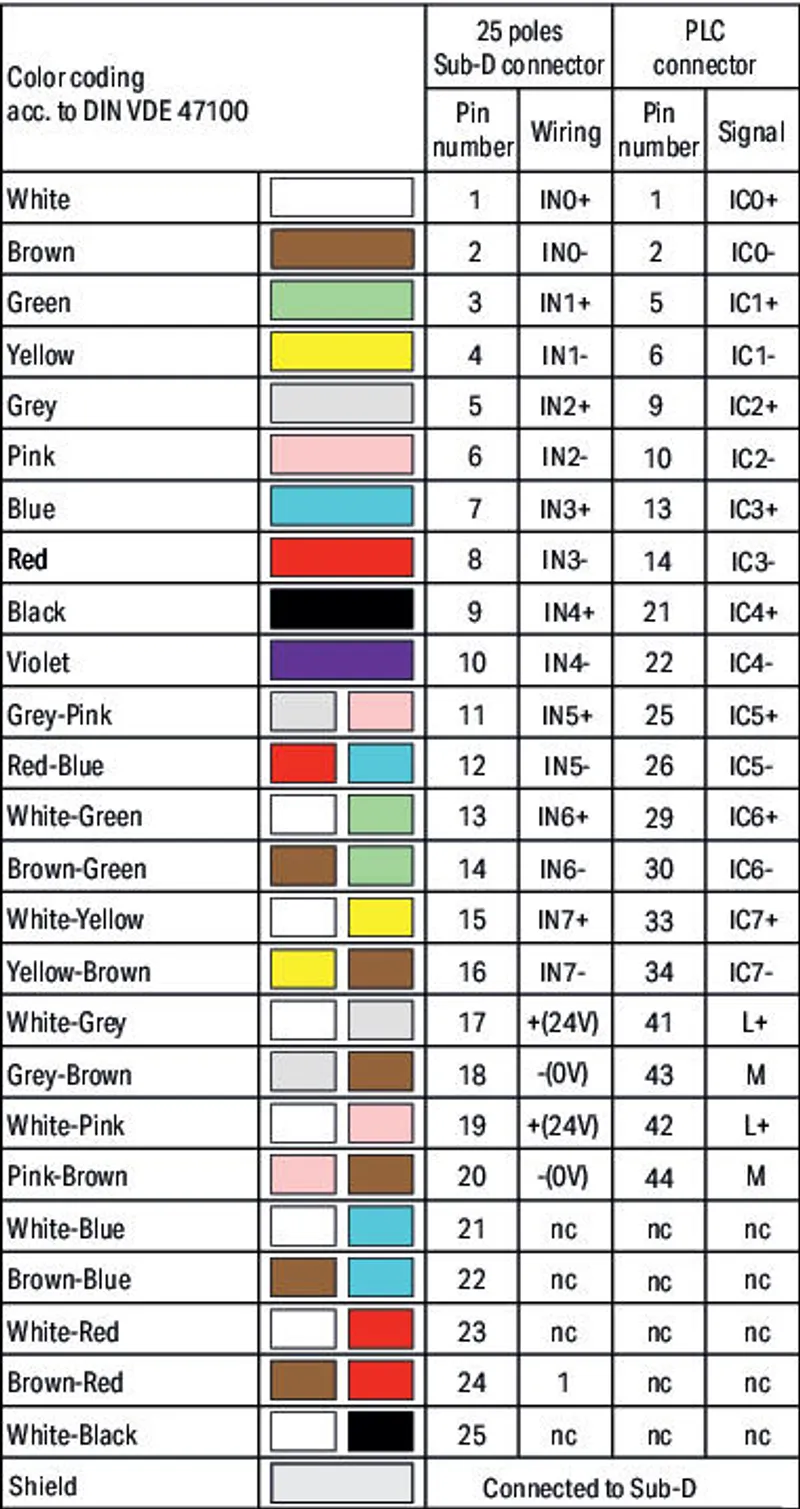

| Color code | per DIN VDE 47100 |
Connection data - Connection 1
| Pluggable connector | D-sub female connector |
| Pole number 1 | 25 |
| Connection type | System |
| Wire cross-section | 0.25 mm² |
Connection data - Connection 2
| Connector | Siemens 6ES7-592-1BM00-0XB0 |
| Pole number | 40 |
| Connection type | System |
| Wire cross-section | 0.25 mm² |
Physical data
| Cable length | 2 m |
Material data
| Weight | 547 g |
Environmental requirements
| Ambient temperature (operation) | -20 … +50 °C |
Commercial data
| PU (SPU) | 1 pcs |
| Packaging type | Bag |
| Country of origin | FR |
| GTIN | 4066966119725 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121604 |
| ETIM 9.0 | EC000237 |
| ETIM 10.0 | EC000237 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
