System cable; for Siemens S7-300; 16 digital inputs for higher voltages; Length: 2 m; Conductor cross-section: 0.34 mm²
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Interface Modules and System Wiring |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 706-2300/102-200 be shipped?
706-2300/102-200 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 706-2300/102-200 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 706-2300/102-200 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 706-2300/102-200, subject to availability and destination.
System cable; for Siemens S7-300; 16 digital inputs for higher voltages; Length: 2 m; Conductor cross-section: 0.34 mm² 706-2300/102-200
Specifications
Notes
| Note | If less than 3 channels are used simultaneously, the maximum current per conductor is 2 A and up to 5 A (30°C ambient temperature) or 3.5 A (50°C ambient temperature) at pins N/L. If more than 3 channels are used simultaneously, the maximum current per conductor is 0.75 A and up to 5 A (30°C ambient temperature) or 3.5 A (50°C ambient temperature) at pins N/L. |
Electrical data
| Inputs/outputs | 16 digital inputs; for higher voltages |
| Operating voltage | ≤ 250 VAC/VDC |
| Current per wire (max.) | 0.75 A |
Compatibility - Siemens
| Siemens S7-300 | 6ES7 321-1FH00-0AA0 |
Connection data
| Cable type | LiYY |

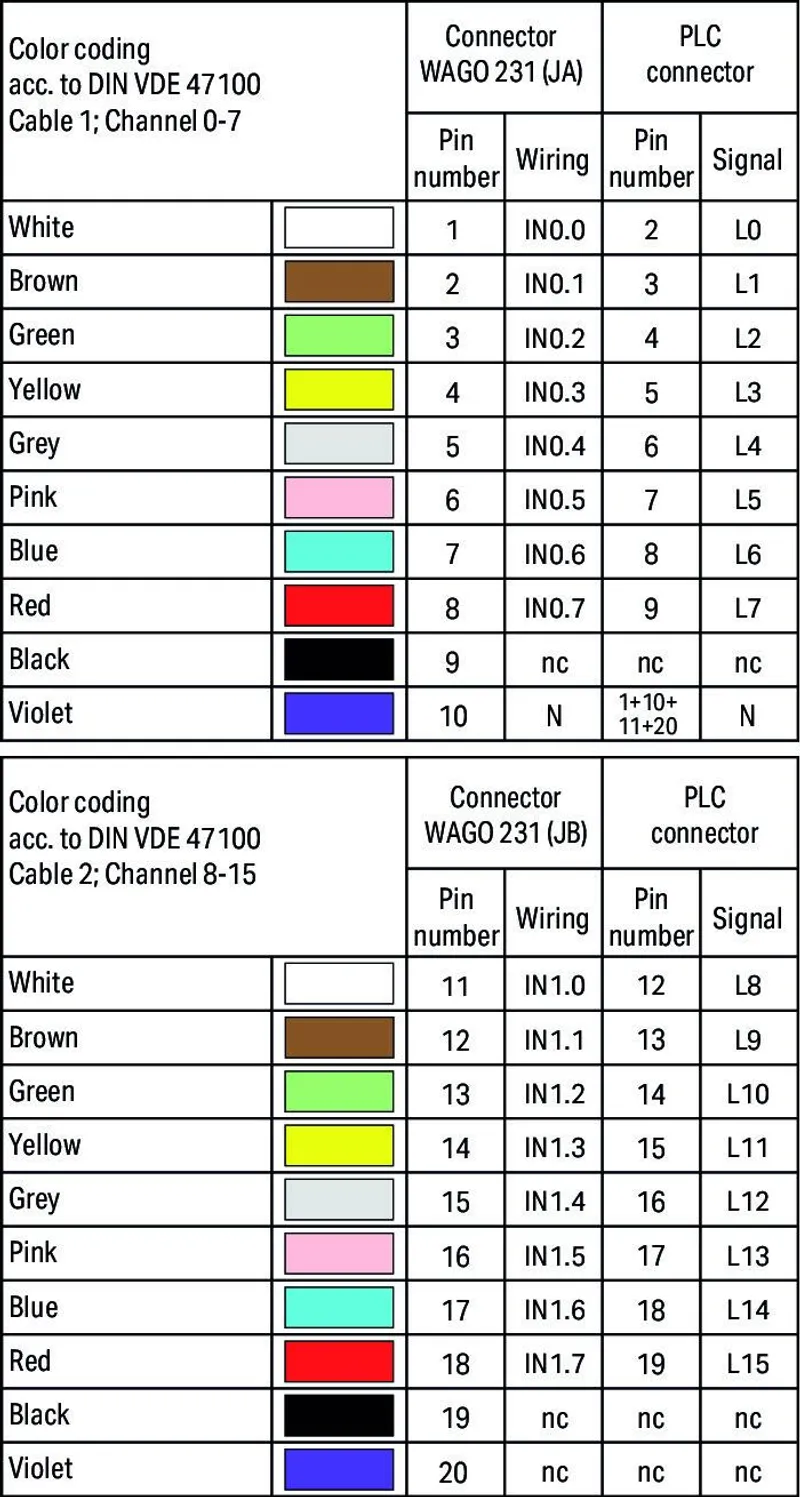

| Color code | per DIN VDE 47100 |
Connection data - Connection 1
| Pluggable connector | WAGO 231 Series |
| Pole number 1 | 10 |
| Connection type | System |
| Wire cross-section | 0.34 mm² |
Connection data - Connection 2
| Connector | WAGO 231 Series |
| Pole number | 10 |
| Connection type | System |
| Wire cross-section | 0.34 mm² |
Connection data - Connection 3
| Connector | Siemens 6ES7-392-1BJ00-0AA0 |
| Pole number | 20 |
| Connection type | System |
Physical data
| Cable length | 2 m |
Material data
| Weight | 449 g |
Environmental requirements
| Ambient temperature (operation) | -20 … +50 °C |
Commercial data
| PU (SPU) | 1 pcs |
| Packaging type | box |
| GTIN | 4045454880163 |
Product Classification
| UNSPSC | 26121629 |
| ETIM 9.0 | EC000237 |
| ETIM 10.0 | EC000237 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
