IoT Box; Energy; MID 2PCT
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Controller |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 2854-099/000-009 be shipped?
2854-099/000-009 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 2854-099/000-009 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 2854-099/000-009 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 2854-099/000-009, subject to availability and destination.

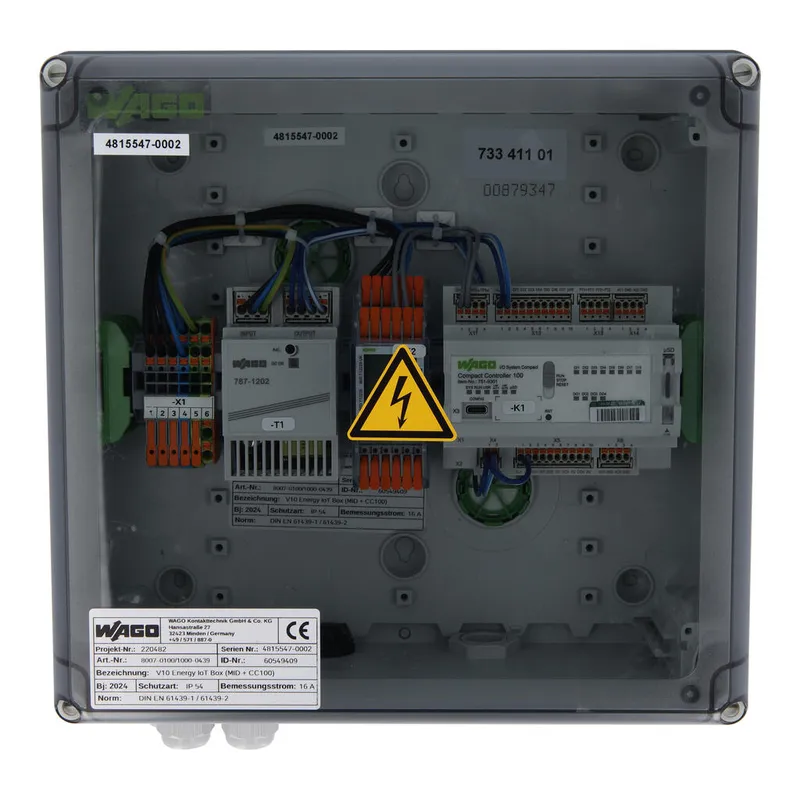

<p>The IoT Box includes:</p><p> </p><ul><li><b>Compact Controller 100</b>; 8DI 4DO 2AI 2AO 2NI1K/PT1K 1RS485; 2 x ETHERNET; SD: 751-9301</li><li><b>Energy Meter (MID24)</b>; for Transformer Connection; 1 A / 5 A; 3x230/400V; 50Hz; MODBUS and M-Bus; 2 x S0 Interface; 2PU CT: 879-3040</li><li><b>Compact Switched-Mode Power Supply; 1-Phase</b>; 24 VDC 1.3 A: 0787-1202</li><li><b>3-Conductor Through Terminal Block</b>; with lever and push-button; 2.5 mm²; gray: 2102-5301</li><li><b>3-Conductor Through Terminal Block</b>; with lever and push-button; 2.5 mm²; blue: 2102-5304</li><li><b>3-Conductor Ground Terminal Block</b>; with lever and push-button; 2.5 mm²; green-yellow: 2102-5307</li><li><b>4-Conductor Ground Terminal Block</b>; with push-button; 2.5 mm²; green-yellow: 2202-1407</li><li>SD Micro Memory Card; pSLC-NAND; 8 GB. 758-879/000-3108 </li><li>Cable Grips M16; M20; M25</li><li>Connectors (Plug and Socket) for Power Supply</li><li>ETHERNET Cable; RJ-45; RJ-45; Cat.6A; Length: 0.5 m 756-1250/1013-005</li><li>Energy Data Management Application; Single License (pre-installed)</li><li>Energy Data Management Visualization; Single License; (pre-installed)</li></ul>
Specifications
Technical data
| ETHERNET protocols | DHCP, DNS, NTP, FTP, FTPS, SNMP, HTTP, HTTPS, SSH |
| Configuration options | CODESYS V3.5, Ethernet Settings, Web-Based Management, WAGOupload, WAGO Solution Builder |
| Type of memory card | SD and SDHC up to 8 GB (all guaranteed properties only valid with WAGO's memory card) |
Physical data
| Width | 300 mm / 11.811 inches |
| Height | 300 mm / 11.811 inches |
| Depth | 147 mm / 5.787 inches |
Mechanical data
| Mounting type | Wall-mount |
Material data
| Fire load | 2.468 MJ |
| Weight | 2430.3 g |
Environmental requirements
| Ambient temperature (operation) | -25 … +53 °C |
| Protection type | IP54 |
| Protection class | I |
| Relative humidity (without condensation) | 95 % |
Commercial data
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4066966547795 |
| Customs tariff number | 85371091990 |
Product Classification
| UNSPSC | 43222605 |
| ETIM 9.0 | EC002581 |
| ETIM 10.0 | EC002581 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
