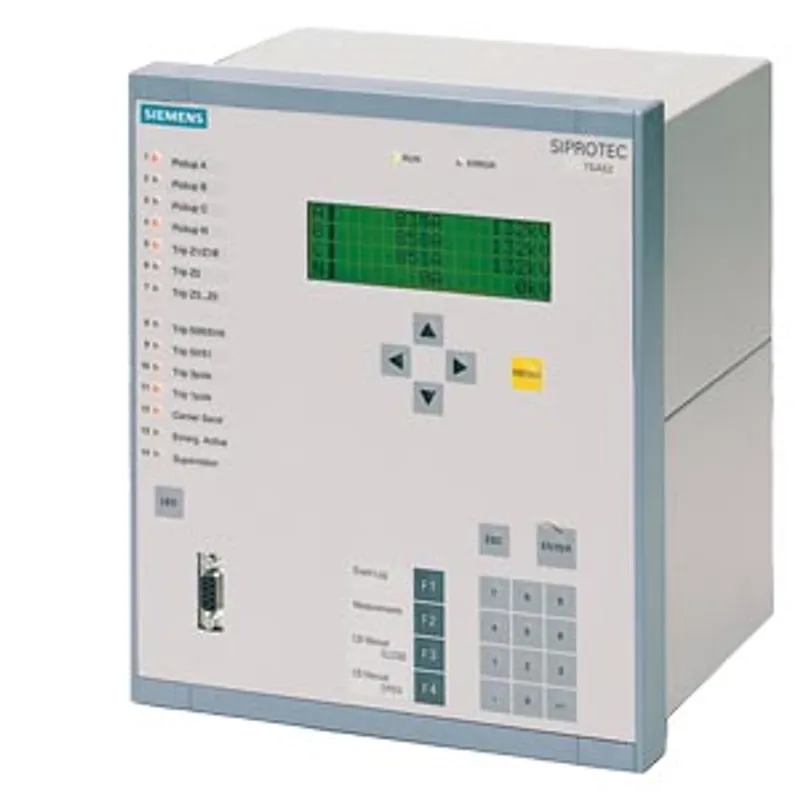

Siemens 7XT3400-0CA00
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | 7XT34 - 20 Hz band pass for 100 % stator earth fault protection |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 15.6 kg |
Shipping & availability
When can 7XT3400-0CA00 be shipped?
7XT3400-0CA00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 7XT3400-0CA00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 7XT3400-0CA00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 7XT3400-0CA00, subject to availability and destination.
20 HZ BANDPASS FOR STATOR EARTH FAULT 100% PROTECTION THE 20HZ BANDPASS FILTERS THE SQUARE-WAVE VOLTAGE AND TRANS- FORMS IT TO SINUS CURVES WITH FREQUENCIES OF APPROX. 20HZ. THE INTERNAL RESISTANCE IS THEN EQUAL TO APPROX. 8 OHM. AT THE SAME TIME IT PROJECTS THE 20HZ FREQUENCY GENERATOR IN CASE OF EARTH FAULT WITH FULL DISPLACE- MENT VOLTAGE. AT RATED FREQ. THE RESISTANCE IS APPROX. 160 OHM (50HZ), 200 OHM (60HZ). MAX. POWER CONSUMPTION IS APPROX. 80VA. IN 7XP20 CASE FOR FLUSH MOUNTING
