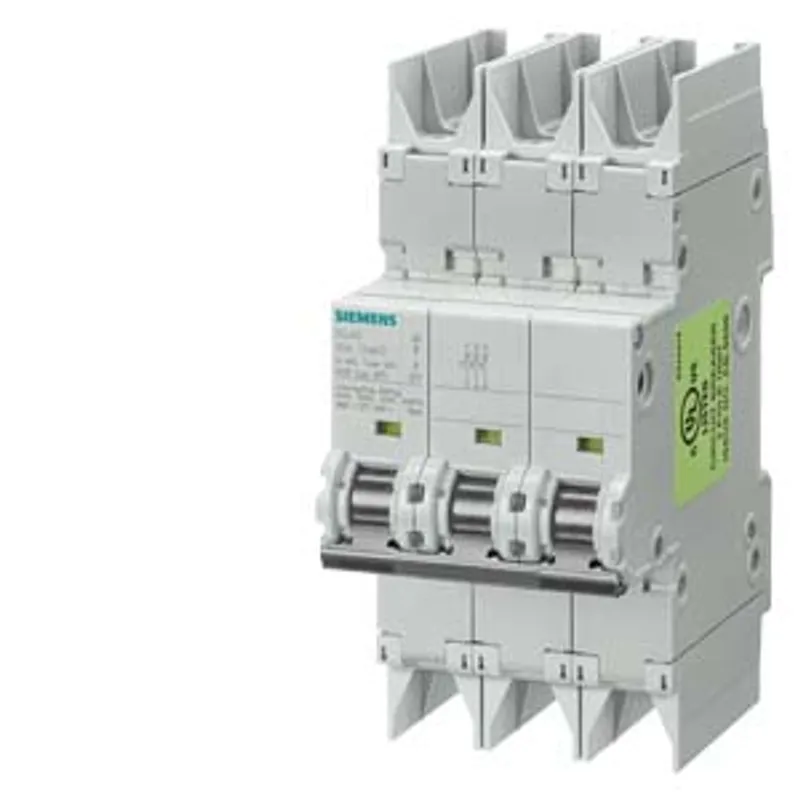

Siemens 5SJ4306-7HG42-Z W13 – Circuit breaker 10kA, 3-pole, C

Name: Siemens 5SJ4306-7HG42-Z W13 – Circuit breaker 10kA, 3-pole, C
Brand: Siemens
SKU: 5SJ4306-7HG42-Z W13

MPN: 5SJ4306-7HG42-Z W13 · Brand: Siemens

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Basic Devices
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.5 kg
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 5SJ4306-7HG42-Z W13 be shipped?

5SJ4306-7HG42-Z W13 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5SJ4306-7HG42-Z W13 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5SJ4306-7HG42-Z W13 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5SJ4306-7HG42-Z W13, subject to availability and destination.

Circuit breaker 10kA, 3-pole, C, 6A according to UL 489-480Y/277V Multi-Unit Packaging (24 Stück)

Specifications

Model

product brand name	SENTRON
product designation	Miniature circuit breakers
design of the product	Miniature circuit-breaker 5SJ4

General technical data

number of poles	3
design of pole	3P
tripping characteristic class	C
mechanical service life (operating cycles) typical	10 000
installation environment regarding EMC	Suitable for environment B (immunity to interference not applicable)
reference code according to DIN 40719 extended according to IEC 204-2 according to IEC 750	F
overvoltage category	3
degree of pollution	3

Voltage

insulation voltage (Ui) at AC rated value	440 V
operational current – — at 30 °C rated value	6 A
operational current – — at 40 °C rated value	6 A
operational current – — at 50 °C rated value	5.7 A
operational current – — at 55 °C rated value	5.6 A
operational current – — at 60 °C rated value	5.4 A
operational current – operational current at AC rated value	6 A

Supply voltage

supply voltage – at AC	400 V
supply voltage – at DC rated value	60 V
value range of the supply voltage frequency	50/60 Hz
operating voltage – at AC according to UL 489 and CSA C22.2 No. 5-02 maximum	277 V
operating voltage – at DC rated value maximum	60 V
operating voltage – at DC 1-channel according to UL 489 and CSA C22.2 No. 5-02 maximum	60 V
operating voltage – at DC 2-channel according to UL 489 and CSA C22.2 No. 5-02 maximum	125 V
supply voltage frequency rated value	50 Hz

Protection class

protection class IP

IP 0 in the handle range

Breaking Capacity

switching capacity current – according to EN 60898 rated value	10 kA
switching capacity current – according to IEC 60947-2 rated value	15 kA

Dissipation

power loss [W] for rated value of the current at AC in hot operating state per pole

2.7 W

Main circuit

type of voltage supply at AC according to UL 489 and CSA C22.2 No. 5-02	480/277
suitability for operation	Infrastructure / Industry

Product details

product feature touch protection	Yes
product component – tunnel terminals top	No
product component – tunnel terminals bottom	No
product component – combined terminal top	Yes
product component – combined terminal bottom	Yes
product component – neutral conductor switching	No
product feature halogen-free	Yes
product feature sealable	Yes
product feature silicon-free	Yes
product extension installable supplementary devices	Yes

Product function

set values setting current (Ii) for I-tripping	7,5
reference value setting current (Ii) for I-tripping	x In
product function note	Terminal tightening torque for Cu, 60/75°C; 3.5Nm/31lb.in

Short circuit

short-circuit current breaking capacity (Icn) at AC according to UL 1077 and CSA C22.2 No.235

10 kA

Connections

connectable conductor cross-section finely stranded with core end processing – minimum	0.75 mm²
connectable conductor cross-section finely stranded with core end processing – maximum	25 mm²
tightening torque with screw-type terminals maximum	3.5 N·m
position of power supply cord	Any

Mechanical Design

height	121 mm
width	54 mm
depth	70 mm
installation depth	70 mm
number of modular width units	3
fastening method	on standard mounting rail
mounting position	any
Net Weight	496 g

Environmental conditions

standard	IEC / EN 60947-2 / UL 489
vibration resistance	50 m/s² at 25 to 150Hz and 60m/s² at 35Hz (4sec)
vibration resistance according to IEC 60068-2-6	±1 mm at 5 to 25 Hz; 50 m/s² at 25 to 150 Hz
ambient temperature during operation – minimum	-25 °C
ambient temperature during operation – maximum	55 °C
ambient temperature during operation	max. 95% humidity
ambient temperature during storage – minimum	-40 °C
ambient temperature during storage – maximum	75 °C
