Siemens 3WA1106-5.E61-....
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | 3WA1 Air Circuit Breakers/Non-Aut. Air Circ. Br. up to 6300 A (AC), IEC |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 65.95 kg |
Shipping & availability
When can 3WA1106-5.E61-.... be shipped?
3WA1106-5.E61-.... is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3WA1106-5.E61-.... in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3WA1106-5.E61-.... and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3WA1106-5.E61-...., subject to availability and destination.

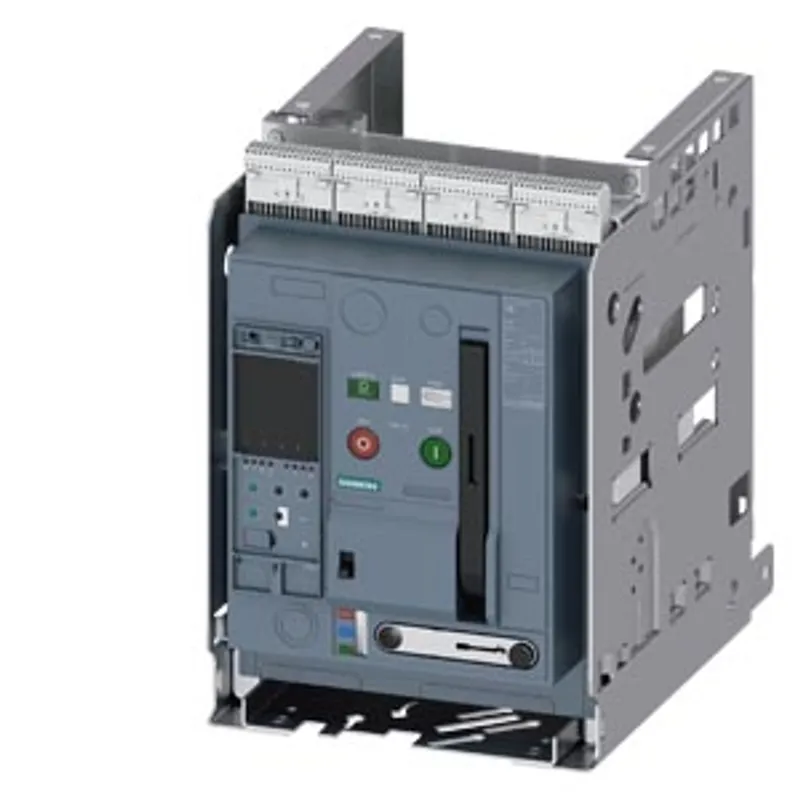

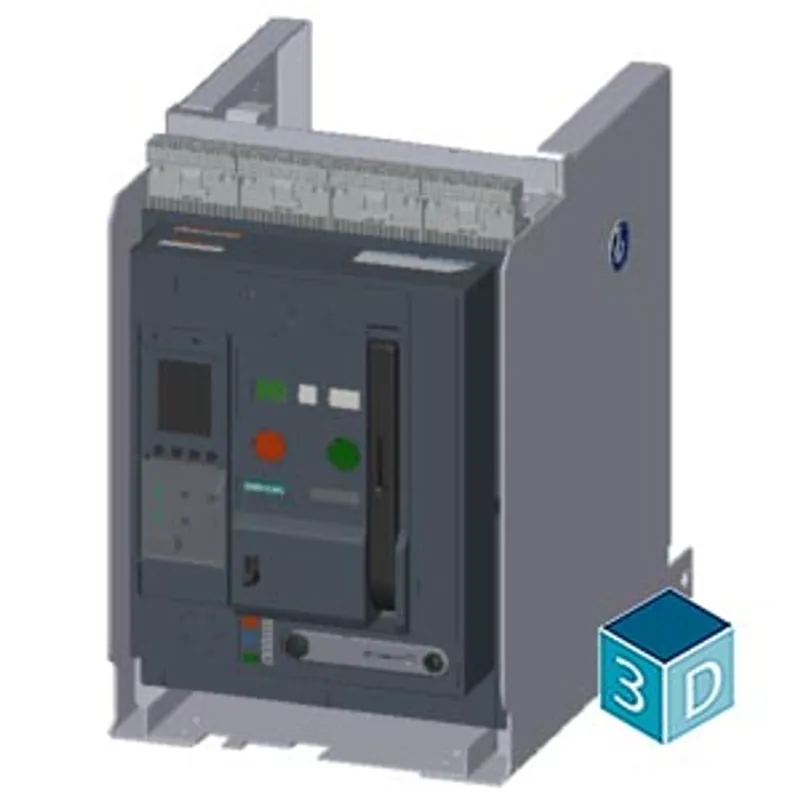

withdrawable circuit breaker, with guide frame, IEC 60947-2, frame size 1, 3-pole, In=630 A up to 690 V AC 50/60 Hz, breaking capacity H Icu=100/66 kA at 500/690 V, ETU600 LSI electronic trip unit upgradeable, color display, Bluetooth, USB interface, basic protection LT, ST, INST, neutral conductor protection requires an external neutral point current sensor, trip alarm switch (1x CO), connection at rear vertical, guide frame with shutter, position signaling switch (3x CO),
