Siemens 3WA1106-5.B30-....
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | 3WA1 Air Circuit Breakers/Non-Aut. Air Circ. Br. up to 6300 A (AC), IEC |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 37.68 kg |
Shipping & availability
When can 3WA1106-5.B30-.... be shipped?
3WA1106-5.B30-.... is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3WA1106-5.B30-.... in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3WA1106-5.B30-.... and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3WA1106-5.B30-...., subject to availability and destination.

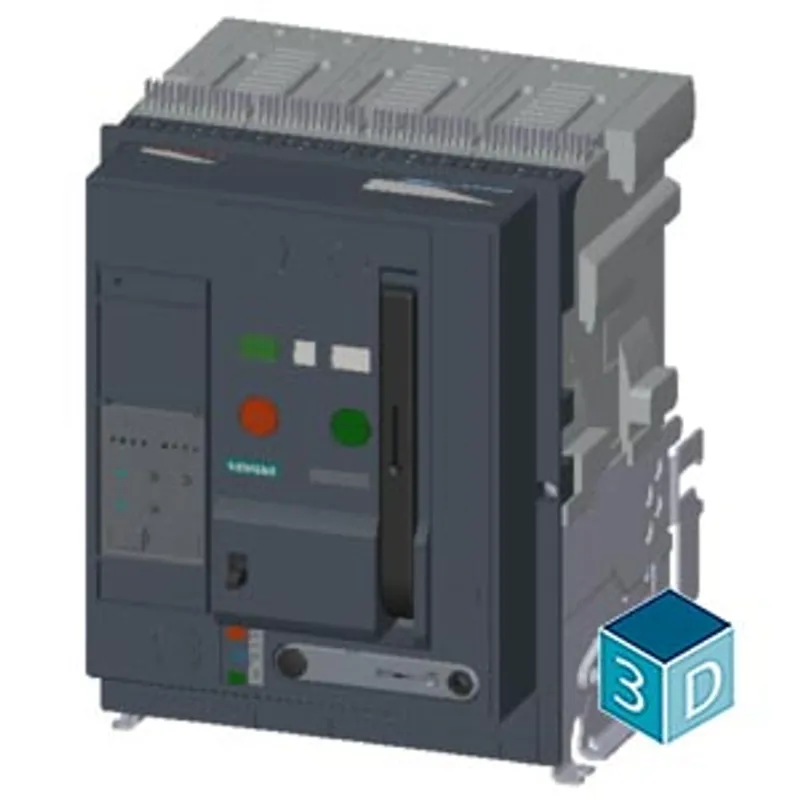

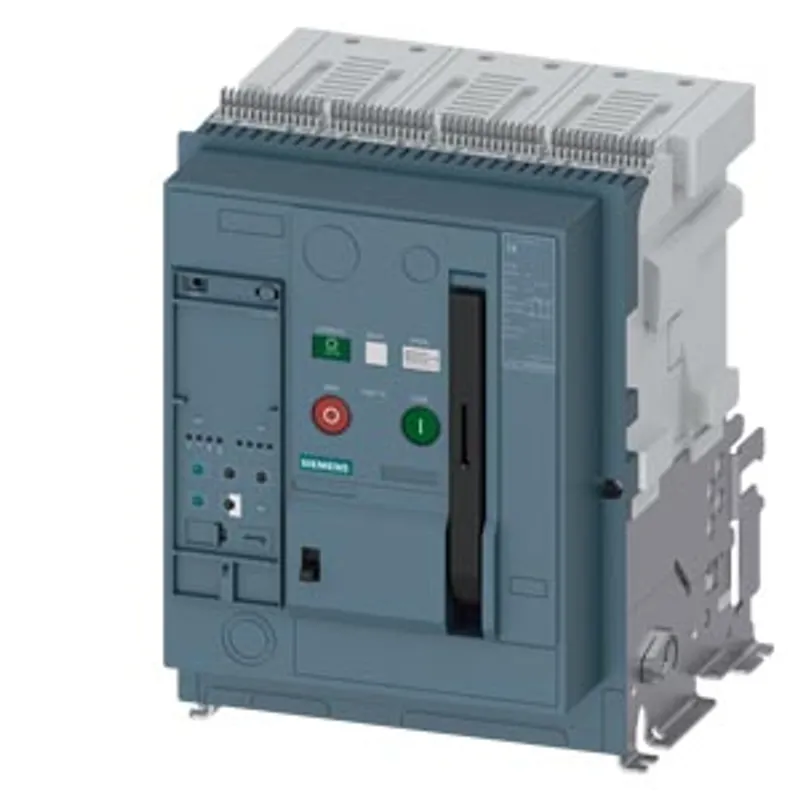

withdrawable circuit breaker, without guide frame, IEC 60947-2, size 1, 3-pole, In=630 A up to 690 V AC 50/60 Hz, breaking capacity H Icu=100/66 kA at 500/690 V, ETU300 LSI electronic trip unit optimized for standard applications, without display, basic protection LT, ST, INST, neutral conductor protection requires an external neutral point current sensor, trip alarm switch (1 x CO),
