Siemens 3SU1851-0AA00-0AC2-Z Y19 – Enclosure for command devices, 22 mm, round
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Empty enclosures |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.57 kg |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 3SU1851-0AA00-0AC2-Z Y19 be shipped?
3SU1851-0AA00-0AC2-Z Y19 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3SU1851-0AA00-0AC2-Z Y19 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3SU1851-0AA00-0AC2-Z Y19 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3SU1851-0AA00-0AC2-Z Y19, subject to availability and destination.
Enclosure for command devices, 22 mm, round, enclosure material metal, enclosure top part yellow, with protective collar, 1 control point, without equipment, floor mounting, 1xM20 each on top and bottom, customer-specific selection with SIRIUS ACT configurator (CIN)
Specifications
Enclosure
| design of the housing | with protective collar |
| shape of the enclosure front | Square |
| material of the enclosure | metal |
| number of command points | 1 |
| product component protective collar | Yes |
| color of the enclosure top part | yellow |
| fastening method of the enclosure | Vertical |
General technical data
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance for railway applications according to EN 61373 | Category 1, Class B |
| vibration resistance for railway applications according to EN 61373 | Category 1, Class B |
| Substance Prohibitance (day/month/year) | 10/01/2014 |
| SVHC substance name | Lead CAS-No. 7439-92-1 |
| Net Weight | 537.38 g |
| cable entry type | Without |
Connections/ Terminals
| type of electrical connection on enclosure | Cable routing above and below, both 1 x M20 |
| tightening torque of fixing screws in the enclosure cover | 1.5 ... 1.7 N·m |
Ambient conditions
| ambient temperature – during operation | -25 ... +70 °C |
| ambient temperature – during storage | -40 ... +80 °C |
| environmental category during operation according to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel) |
Installation/ mounting/ dimensions
| fastening method of modules and accessories | Floor mounting |
| height | 89.4 mm |
| width | 85 mm |
| depth | 112.5 mm |
| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
| Product data sheet 3SU1851-0AA00-0AC2 |
More Siemens parts

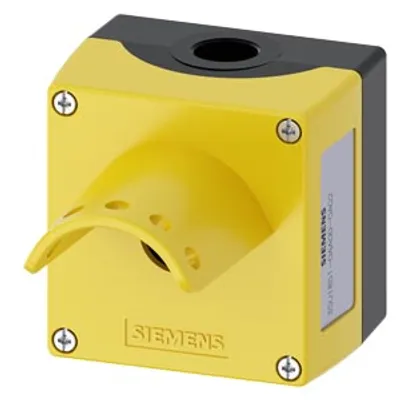

Available on requestSiemens 3SU1851-0AA00-0AB1-Z Y19 – Enclosure for command devices, 22 mm, round
