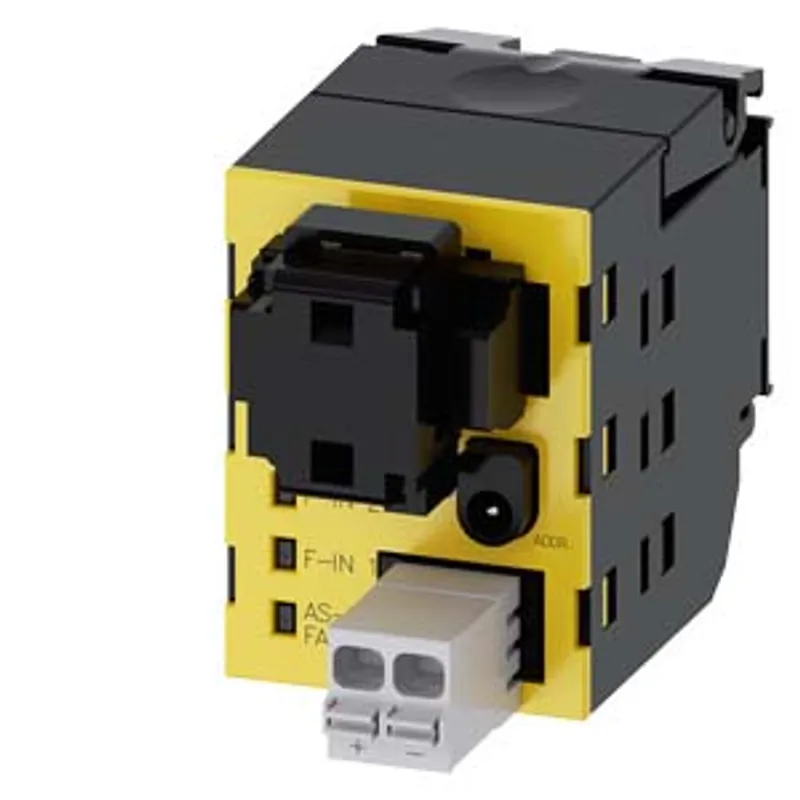

Siemens 3SU1400-1EC10-4AA0-Z Y19 – AS-Interface module, 2 safe inputs, 1 output, black

Name: Siemens 3SU1400-1EC10-4AA0-Z Y19 – AS-Interface module, 2 safe inputs, 1 output, black
Brand: Siemens
SKU: 3SU1400-1EC10-4AA0-Z Y19

MPN: 3SU1400-1EC10-4AA0-Z Y19 · Brand: Siemens

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Modules
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.07 kg
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 3SU1400-1EC10-4AA0-Z Y19 be shipped?

3SU1400-1EC10-4AA0-Z Y19 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3SU1400-1EC10-4AA0-Z Y19 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3SU1400-1EC10-4AA0-Z Y19 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3SU1400-1EC10-4AA0-Z Y19, subject to availability and destination.

AS-Interface module, 2 safe inputs, 1 output, black, insulation displacement system and 2-pole connector with spring-type terminal, for front plate mounting, Customer-specific selection with SIRIUS ACT configurator (CIN)

Specifications

General technical data

product function	2F-DI / 1 DQ
degree of pollution	3
type of voltage – of the operating voltage	DC
type of voltage – of the input voltage	DC
consumed current maximum	60 mA
protection class IP	IP20
shock resistance for railway applications according to EN 61373	Category 1, Class B
vibration resistance for railway applications according to EN 61373	Category 1, Class B
reference code according to IEC 81346-2	K
Substance Prohibitance (day/month/year)	10/01/2014
SVHC substance name	Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 Diboron trioxide CAS-No. 1303-86-2
Net Weight	50.38 g
design of the device type	2 F-DI + 1 DQ
AS-Interface device profile	S-7.B.F
ID1 code	0...F
number of AS-i devices	1
operating voltage rated value	26.5 ... 31.6 V
operating voltage 1 at DC rated value	30 V

Communication/ Protocol

protocol is supported – AS-Interface protocol	Yes
protocol is supported – ASIsafe (Safety at work) protocol	Yes

Inputs/ Outputs

number of digital inputs – safety-related	2
number of digital outputs	1; Unrestricted

Connections/ Terminals

type of electrical connection	spring-loaded terminal + insulation displacement method
type of connectable conductor cross-sections – solid without core end processing	1x (0.2 ... 2.5 mm²)
type of connectable conductor cross-sections – finely stranded with core end processing	1x (0.25 ... 1.5 mm²)
type of connectable conductor cross-sections – finely stranded without core end processing	1x (0.22 ... 1.5 mm²)
type of connectable conductor cross-sections – for AWG cables	1x (24 ... 16)

Product Function

suitability for use safety-related circuits

Yes

Safety related data

product function suitable for safety function	Yes
safe state	off
test wear-related service life necessary	No
category according to EN 954-1	4
average diagnostic coverage level (DCavg)	99 %
Safety Integrity Level (SIL) according to IEC 62061	SIL 3
PFHD with high demand rate according to IEC 62061	4.5E-9 1/h
performance level (PL) according to ISO 13849-1	PL e
category according to ISO 13849-1	4
device type according to ISO 13849-1	1
Safety Integrity Level (SIL) – according to IEC 61508	SIL 3
safety device type according to IEC 61508-2	Type B
PFHD with high demand rate according to IEC 61508	4.5E-9 1/h
PFDavg with low demand rate according to IEC 61508	5E-6
Safe failure fraction (SFF)	99 %
hardware fault tolerance according to IEC 61508	1
T1 value of service life according to IEC 61508	20 a

Ambient conditions

ambient temperature – during operation	-25 ... +70 °C
ambient temperature – during storage	-40 ... +80 °C
environmental category during operation according to IEC 60721	3M6, 3S2, 3B2, 3C3 (without salt spray), 3K6 (with relative humidity of 10 ... 95%, no condensation in operation permitted)

Installation/ mounting/ dimensions

fastening method – of modules and accessories	Front plate mounting
fastening method – of the AS-i devices	Frontplattenbefestigung
height	42 mm
width	30 mm
depth	65.5 mm

Environmental footprint

Environmental Product Declaration(EPD)	Yes
global warming potential [CO2 eq] total	0.787 kg
global warming potential [CO2 eq] during manufacturing	0.566 kg
global warming potential [CO2 eq] during operation	0.235 kg
global warming potential [CO2 eq] after end of life	-0.015 kg
