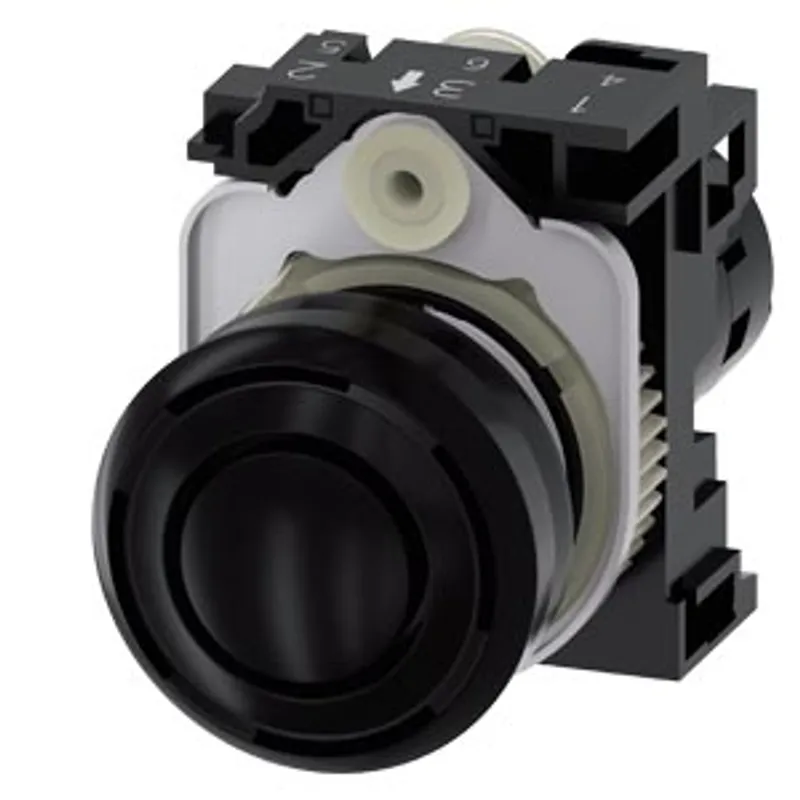

Siemens 3SU1200-6KF10-1AA0-Z X90

Name: Siemens 3SU1200-6KF10-1AA0-Z X90
Brand: Siemens
SKU: 3SU1200-6KF10-1AA0-Z X90

MPN: 3SU1200-6KF10-1AA0-Z X90 · Brand: Siemens

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Actuators and indicators, 22 mm, round, plastic, black
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.03 kg
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 3SU1200-6KF10-1AA0-Z X90 be shipped?

3SU1200-6KF10-1AA0-Z X90 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3SU1200-6KF10-1AA0-Z X90 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3SU1200-6KF10-1AA0-Z X90 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3SU1200-6KF10-1AA0-Z X90, subject to availability and destination.

acoustic signal device, compact, 22 mm, round, plastic, black, Continuous tone 2.4 kHz, IP40, Sound pressure min. 80 dB/10 cm, with holder, Operating voltage 230 V AC, screw terminal, Z=50-unit packaging

Specifications

Enclosure

number of command points

Actuator

color of the actuating element	black
material of the actuating element	plastic
shape of the actuating element	round
outer diameter of the actuating element	29.5 mm

Front ring

product component front ring

Holder

material of the holder

Plastic

General technical data

loudness level at 10 cm distance	80 dB
insulation voltage rated value	320 V
degree of pollution	3
surge voltage resistance rated value	4 kV
consumed current at rated value of operating voltage maximum	28 mA
protection class IP	IP40
protection class IP of the terminal	IP20, clamping screw tightened
degree of protection NEMA rating	1
shock resistance – according to IEC 60068-2-27	sinusoidal half-wave 15 g / 11 ms
shock resistance – for railway applications according to EN 61373	Category 1, Class B
vibration resistance – according to IEC 60068-2-6	10 ... 500 Hz: 5 g
vibration resistance – for railway applications according to EN 61373	Category 1, Class B
reference code according to IEC 81346-2	P
Substance Prohibitance (day/month/year)	10/01/2014
SVHC substance name	2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1
Net Weight	45.5 g
relative positive tolerance of the operating voltage	20 %
relative negative tolerance of the operating voltage	20 %

Supply voltage

type of voltage of the supply voltage of the acoustic signal element	AC
supply voltage at AC – at 50 Hz rated value	230 V
supply voltage at AC – at 60 Hz rated value	230 V

Control circuit/ Control

inrush current maximum

3 A

Connections/ Terminals

type of electrical connection	screw terminal
type of connectable conductor cross-sections – solid with core end processing	2x (0.5 ... 0.75 mm²)
type of connectable conductor cross-sections – solid without core end processing	2x (1.0 ... 1.5 mm²)
type of connectable conductor cross-sections – finely stranded with core end processing	2x (0.5 ... 1.5 mm²)
type of connectable conductor cross-sections – finely stranded without core end processing	2x (1,0 ... 1,5 mm²)
type of connectable conductor cross-sections – for AWG cables	2x (18 ... 14)
tightening torque of the screws in the bracket	1 ... 1.2 N·m
tightening torque with screw-type terminals	0.8 ... 1 N·m

Ambient conditions

ambient temperature – during operation	-25 ... +70 °C
ambient temperature – during storage	-40 ... +80 °C
environmental category during operation according to IEC 60721	3M6, 3S2, 3B2, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel)

Installation/ mounting/ dimensions

fastening method	front plate mounting
height	40 mm
width	30 mm
shape of the installation opening	round
mounting diameter	22.3 mm
positive tolerance of installation diameter	0.4 mm
mounting height	11.4 mm
installation width	29.5 mm
installation depth	49.6 mm
