Siemens 3SU1200-2PT10-1AA0-Z X90 – Potentiometer, compact, 22 mm, round, plastic, black
MPN: 3SU1200-2PT10-1AA0-Z X90 · Brand: Siemens
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Actuators and indicators, 22 mm, round, plastic, black |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.04 kg |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 3SU1200-2PT10-1AA0-Z X90 be shipped?
3SU1200-2PT10-1AA0-Z X90 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3SU1200-2PT10-1AA0-Z X90 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3SU1200-2PT10-1AA0-Z X90 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3SU1200-2PT10-1AA0-Z X90, subject to availability and destination.
Potentiometer, compact, 22 mm, round, plastic, black, 47k ohm, with holder, screw terminal, Z=50-unit packaging
Specifications
Enclosure
| number of command points | 1 |
Actuator
| design of the actuating element | Rotary knob |
| principle of operation of the actuating element | Infinitely variable adjustment, angle of rotation 280° |
| color of the actuating element | black |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| outer diameter of the actuating element | 30 mm |
| Maximum deflection angle [°] | 280° |
Front ring
| product component front ring | No |
Holder
| material of the holder | Plastic |
General technical data
| consumed active power | 1 W |
| insulation voltage rated value | 500 V |
| degree of pollution | 3 |
| protection class IP | IP66, IP67, IP69(IP69K) |
| protection class IP of the terminal | IP20, clamping screw tightened |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance – according to IEC 60068-2-27 | sinusoidal half-wave 15 g / 11 ms |
| shock resistance – for railway applications according to EN 61373 | Category 1, Class B |
| vibration resistance – according to IEC 60068-2-6 | 10 ... 500 Hz: 5 g |
| vibration resistance – for railway applications according to EN 61373 | Category 1, Class B |
| mechanical service life (operating cycles) typical | 25 000 |
| reference code according to IEC 81346-2 | S |
| Substance Prohibitance (day/month/year) | 01/01/2016 |
| Net Weight | 65.5 g |
Connections/ Terminals
| type of electrical connection | screw terminal |
| type of connectable conductor cross-sections – solid with core end processing | 2x (0.5 ... 0.75 mm²) |
| type of connectable conductor cross-sections – solid without core end processing | 2x (1.0 ... 1.5 mm²) |
| type of connectable conductor cross-sections – finely stranded with core end processing | 2x (0.5 ... 1.5 mm²) |
| type of connectable conductor cross-sections – finely stranded without core end processing | 2x (1,0 ... 1,5 mm²) |
| type of connectable conductor cross-sections – for AWG cables | 2x (18 ... 14) |
| tightening torque of the screws in the bracket | 1 ... 1.2 N·m |
| tightening torque with screw-type terminals | 0.8 ... 1 N·m |
Ambient conditions
| ambient temperature – during operation | -25 ... +70 °C |
| ambient temperature – during storage | -40 ... +80 °C |
| environmental category during operation according to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel) |
Installation/ mounting/ dimensions
| height | 40 mm |
| width | 30 mm |
| shape of the installation opening | round |
| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| mounting height | 19.4 mm |
| installation width | 30 mm |
| installation depth | 46 mm |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
| Product data sheet 3SU1200-2PT10-1AA0 |
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
More Siemens parts
Available on requestSiemens 3SU1200-2PS10-1AA0-Z X90 – Potentiometer, compact, 22 mm, round, plastic, blackMPN: 3SU1200-2PS10-1AA0-Z X90 · Siemens
Price on request
Request a quote
Available on requestSiemens 3SU1200-2PS10-1AA0-Z Y15 – Potentiometer, compact, 22 mm, round, plastic, blackMPN: 3SU1200-2PS10-1AA0-Z Y15 · Siemens
Price on request
Request a quote
Available on requestSiemens 3SU1200-2PS10-1AA0-Z Y19 – Potentiometer, compact, 22 mm, round, plastic, blackMPN: 3SU1200-2PS10-1AA0-Z Y19 · Siemens
Price on request
Request a quote
Available on requestSiemens 3SU1200-2PT10-1AA0 – Potentiometer, compact, 22 mm, round, plastic, blackMPN: 3SU1200-2PT10-1AA0 · Siemens
Price on request
Request a quote

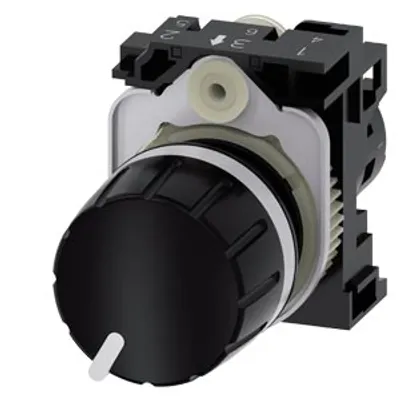

Available on requestSiemens 3SU1200-2PU10-1AA0-Z Y12 – Potentiometer, compact, 22 mm, round, plastic, blackMPN: 3SU1200-2PU10-1AA0-Z Y12 · Siemens
