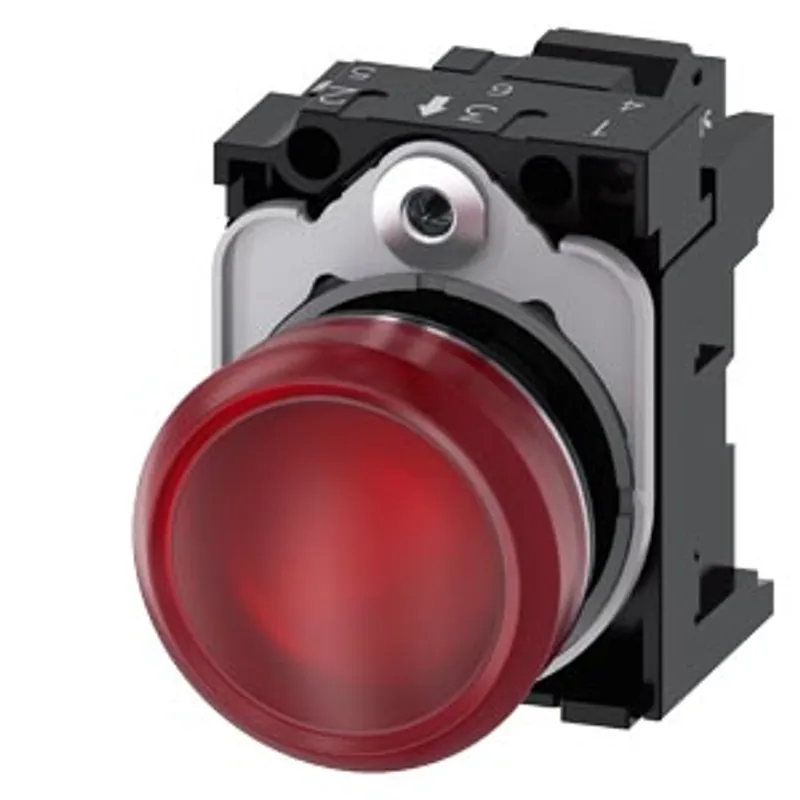

Siemens 3SU1153-6AA20-3AA0-Z Y12 – Indicator lights, 22 mm, round, metal, shiny, red, lens

Name: Siemens 3SU1153-6AA20-3AA0-Z Y12 – Indicator lights, 22 mm, round, metal, shiny, red, lens
Brand: Siemens
SKU: 3SU1153-6AA20-3AA0-Z Y12

MPN: 3SU1153-6AA20-3AA0-Z Y12 · Brand: Siemens

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Actuators and indicators, 22 mm, metal, shiny
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.07 kg
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 3SU1153-6AA20-3AA0-Z Y12 be shipped?

3SU1153-6AA20-3AA0-Z Y12 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3SU1153-6AA20-3AA0-Z Y12 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3SU1153-6AA20-3AA0-Z Y12 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3SU1153-6AA20-3AA0-Z Y12, subject to availability and destination.

Indicator lights, 22 mm, round, metal, shiny, red, lens, smooth, with holder, LED module with integrated LED 110 V AC, spring-type terminal, with laser labeling, lower case

Specifications

Enclosure

number of command points

Actuator

product extension optional light source	Yes
color – of the actuating element	red
material of the actuating element	plastic
shape of the actuating element	round
outer diameter of the actuating element	29.45 mm

Front ring

product component front ring

Holder

material of the holder

Plastic

Display

number of LED modules

General technical data

product component light source	Yes
insulation voltage rated value	320 V
degree of pollution	3
type of voltage of the operating voltage	AC
surge voltage resistance rated value	4 kV
protection class IP	IP66, IP67, IP69(IP69K)
protection class IP of the terminal	IP20
degree of protection NEMA rating	1, 2, 3, 3R, 4, 4X, 12, 13
shock resistance – according to IEC 60068-2-27	sinusoidal half-wave 15 g / 11 ms
vibration resistance – according to IEC 60068-2-6	10 ... 500 Hz: 5 g
reference code according to IEC 81346-2	P
Substance Prohibitance (day/month/year)	10/01/2014
SVHC substance name	2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5
Net Weight	55.5 g

Supply voltage

type of voltage of the supply voltage of the light source	AC
supply voltage of the light source at AC – at 50 Hz rated value	110 V
supply voltage of the light source at AC – at 60 Hz rated value	110 V
supply voltage of the light source at AC – at 60 Hz rated value	110 V
relative negative tolerance of the supply voltage	20 %
relative positive tolerance of the supply voltage	20 %

Control circuit/ Control

inrush current maximum

3 A

Connections/ Terminals

type of electrical connection	other
of modules and accessories	Spring-type terminal
type of connectable conductor cross-sections – solid without core end processing	2x (0.25 ... 1.5 mm²)
type of connectable conductor cross-sections – finely stranded with core end processing	2x (0.25 ... 0.75 mm²)
type of connectable conductor cross-sections – finely stranded without core end processing	2x (0.25 ... 1.5 mm²)
type of connectable conductor cross-sections – for AWG cables	2x (24 ... 16)
tightening torque of the screws in the bracket	1 ... 1.2 N·m

Lamp

type of light source	LED
color of the light source	red
light intensity	450 ... 1 120 mcd

Ambient conditions

ambient temperature – during operation	-25 ... +70 °C
ambient temperature – during storage	-40 ... +80 °C
environmental category during operation according to IEC 60721	3M6, 3S2, 3B2, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel)

Installation/ mounting/ dimensions

fastening method	front plate mounting
of modules and accessories	Front plate mounting
height	40 mm
width	30 mm
shape of the installation opening	round
mounting diameter	22.3 mm
positive tolerance of installation diameter	0.4 mm
mounting height	11.8 mm
installation width	29.5 mm
installation depth	49.7 mm

Environmental footprint

Environmental Product Declaration(EPD)	Yes
global warming potential [CO2 eq] total	0.593 kg
global warming potential [CO2 eq] during manufacturing	0.625 kg
global warming potential [CO2 eq] during operation	0.235 kg
global warming potential [CO2 eq] after end of life	-0.267 kg
Siemens eco profile (SEP)	Siemens EcoTech
