Siemens 3SU1150-7BB88-1NA0-Z X90 – Coordinate switch, 22 mm, round, metal shiny, black

Name: Siemens 3SU1150-7BB88-1NA0-Z X90 – Coordinate switch, 22 mm, round, metal shiny, black
Brand: Siemens
SKU: 3SU1150-7BB88-1NA0-Z X90

MPN: 3SU1150-7BB88-1NA0-Z X90 · Brand: Siemens

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Actuators and indicators, 22 mm, metal, shiny
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.15 kg
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 3SU1150-7BB88-1NA0-Z X90 be shipped?

3SU1150-7BB88-1NA0-Z X90 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3SU1150-7BB88-1NA0-Z X90 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3SU1150-7BB88-1NA0-Z X90 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3SU1150-7BB88-1NA0-Z X90, subject to availability and destination.

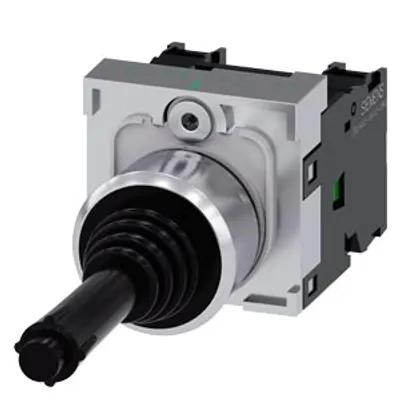

Coordinate switch, 22 mm, round, metal shiny, black, 2 switch positions, vertical latching, with mechanical interlocking, in O position, with holder, 1 NO, 1 NO, screw terminal, Z=20-unit packaging

Specifications

Enclosure

shape of the enclosure front

round

Actuator

design of the actuating element	with mechanical interlocking
principle of operation of the actuating element	latching
direction of actuation	vertical
product extension optional light source	No
color of the actuating element	black
material of the actuating element	plastic
shape of the actuating element	Extended handle
outer diameter of the actuating element	30.5 mm
number of contact modules	2
type of unlocking device	push-to-unlatch mechanism
number of switching positions	2
Maximum deflection angle [°]	30°

Front ring

product component front ring	Yes
design of the front ring	high
material of the front ring	Metal, high gloss
color of the front ring	silver

Holder

material of the holder

Plastic

General technical data

product function positive opening	No
insulation voltage rated value	500 V
degree of pollution	3
type of voltage of the operating voltage	AC/DC
surge voltage resistance rated value	6 kV
protection class IP	IP65, IP67
protection class IP of the terminal	IP20
shock resistance – according to IEC 60068-2-27	sinusoidal half-wave 15 g / 11 ms
vibration resistance – according to IEC 60068-2-6	10 ... 500 Hz: 5 g
operating frequency maximum	2 400 1/h
mechanical service life (operating cycles) – as operating period per direction of actuation typical	100 000
electrical endurance (operating cycles) typical	10 000 000
electrical endurance (operating cycles) with contactors 3RT1015 to 3RT1026 typical	10 000 000
thermal current	10 A
reference code according to IEC 81346-2	S
continuous current of the C characteristic MCB	10 A; for a short-circuit current smaller than 400 A
continuous current of the quick DIAZED fuse link	10 A
continuous current of the DIAZED fuse link gG	10 A
Substance Prohibitance (day/month/year)	10/01/2014
Net Weight	165.5 g
at AC – — at 50 Hz rated value	5 ... 500 V
at AC – — at 60 Hz rated value	5 ... 500 V
at AC – at DC rated value	5 ... 500 V

Power Electronics

contact reliability

One maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA)

Auxiliary circuit

design of the contact of auxiliary contacts	Silver alloy
number of NC contacts for auxiliary contacts	0
number of NO contacts for auxiliary contacts	2

Connections/ Terminals

type of electrical connection of modules and accessories	Screw-type terminal
type of connectable conductor cross-sections – solid with core end processing	2x (0.5 ... 0.75 mm²)
type of connectable conductor cross-sections – solid without core end processing	2x (1.0 ... 1.5 mm²)
type of connectable conductor cross-sections – finely stranded with core end processing	2x (0.5 ... 1.5 mm²)
type of connectable conductor cross-sections – finely stranded without core end processing	2x (1,0 ... 1,5 mm²)
type of connectable conductor cross-sections – for AWG cables	2x (18 ... 14)
tightening torque of the screws in the bracket	1 ... 1.2 N·m
tightening torque for auxiliary contacts with screw-type terminals	0.8 ... 1 N·m

Safety related data

proportion of dangerous failures – with low demand rate according to SN 31920	20 %
proportion of dangerous failures – with high demand rate according to SN 31920	20 %
B10 value with high demand rate according to SN 31920	100 000
failure rate [FIT] with low demand rate according to SN 31920	100 FIT
T1 value for proof test interval or service life according to IEC 61508	20 a

Ambient conditions

ambient temperature – during operation	-25 ... +70 °C
ambient temperature – during storage	-40 ... +80 °C
environmental category during operation according to IEC 60721	3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel)

Installation/ mounting/ dimensions

fastening method	front plate mounting
of modules and accessories	Front plate mounting
height	40 mm
width	40 mm
shape of the installation opening	round
mounting diameter	22.3 mm
positive tolerance of installation diameter	0.4 mm
mounting height	75.6 mm
installation width	30.5 mm
installation depth	53.7 mm

Environmental footprint

Environmental Product Declaration(EPD)	Yes
global warming potential [CO2 eq] total	0.593 kg
global warming potential [CO2 eq] during manufacturing	0.625 kg
global warming potential [CO2 eq] during operation	0.235 kg
global warming potential [CO2 eq] after end of life	-0.267 kg
Siemens eco profile (SEP)	Siemens EcoTech
