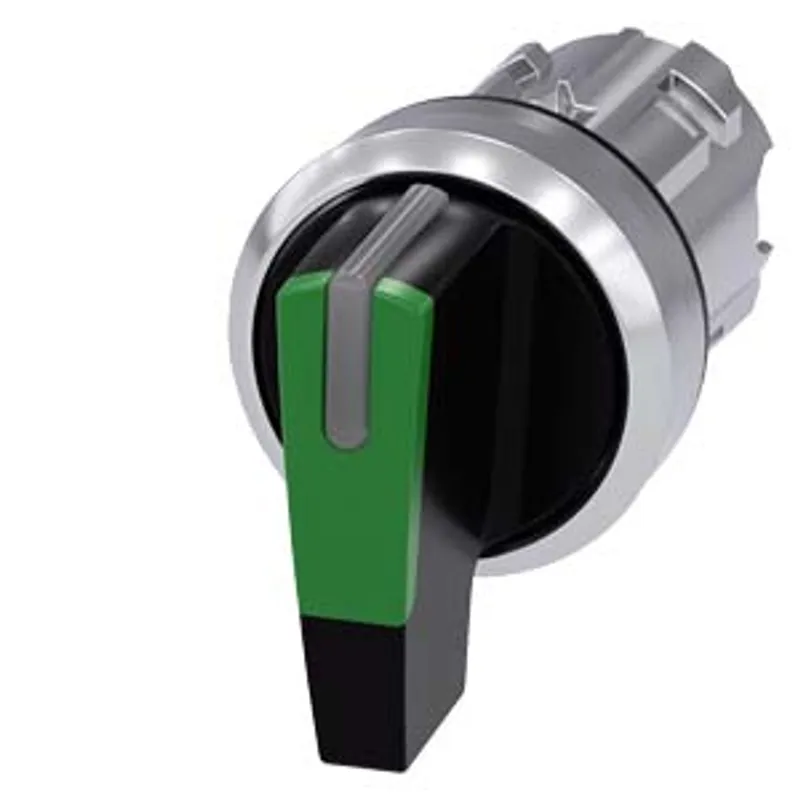

Siemens 3SU1052-2CM40-0AA0-Z X90 – Selector switch, illuminable, 22 mm, round, metal, shiny

Name: Siemens 3SU1052-2CM40-0AA0-Z X90 – Selector switch, illuminable, 22 mm, round, metal, shiny
Brand: Siemens
SKU: 3SU1052-2CM40-0AA0-Z X90

MPN: 3SU1052-2CM40-0AA0-Z X90 · Brand: Siemens

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Actuators and indicators, 22 mm, metal, shiny
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.01 kg
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 3SU1052-2CM40-0AA0-Z X90 be shipped?

3SU1052-2CM40-0AA0-Z X90 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3SU1052-2CM40-0AA0-Z X90 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3SU1052-2CM40-0AA0-Z X90 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3SU1052-2CM40-0AA0-Z X90, subject to availability and destination.

Selector switch, illuminable, 22 mm, round, metal, shiny, green, selector switch, long, 3 switch positions I>O<II, momentary contact type, actuating angle 2x45°, 10:30h/12h/13:30h, Z=50-unit packaging

Specifications

Enclosure

number of command points

Actuator

design of the actuating element	selector, long
principle of operation of the actuating element	momentary contact, 2x45° (10:30 h/12 h/13:30 h), return on both sides
product extension optional – light source	Yes
product extension optional – contact module	Yes
color of the actuating element	green
material of the actuating element	plastic
shape of the actuating element	Handle
outer diameter of the actuating element	44.8 mm
number of switching positions	3
actuating angle – clockwise	45°
actuating angle – anticlockwise	45°

Front ring

product component front ring	Yes
design of the front ring	standard
material of the front ring	Metal, high gloss
color of the front ring	silver

General technical data

protection class IP	IP66, IP67, IP69(IP69K)
degree of protection NEMA rating	1, 2, 3, 3R, 4, 4X, 12, 13
shock resistance – according to IEC 60068-2-27	sinusoidal half-wave 15 g / 11 ms
vibration resistance – according to IEC 60068-2-6	10 ... 500 Hz: 5 g
operating frequency maximum	1 800 1/h
mechanical service life (operating cycles) typical	1 000 000
reference code according to IEC 81346-2	S
Substance Prohibitance (day/month/year)	10/01/2014
SVHC substance name	2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV-329) CAS-No. 3147-75-9
Net Weight	46.5 g

Safety related data

proportion of dangerous failures – with low demand rate according to SN 31920	20 %
proportion of dangerous failures – with high demand rate per NC contact according to SN 31920	20 %
proportion of dangerous failures – with high demand rate per NO contact according to SN 31920	50 %
B10 value with high demand rate according to SN 31920	300 000
failure rate [FIT] with low demand rate per NC contact according to SN 31920	100 FIT
T1 value for proof test interval or service life according to IEC 61508	20 a

Ambient conditions

ambient temperature – during operation	-25 ... +70 °C
ambient temperature – during storage	-40 ... +80 °C
environmental category during operation according to IEC 60721	3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%)

Installation/ mounting/ dimensions

height	44.8 mm
width	44.8 mm
shape of the installation opening	round
mounting diameter	22.3 mm
positive tolerance of installation diameter	0.4 mm
mounting height	28.8 mm
installation width	44.8 mm
installation depth	25.4 mm

Environmental footprint

Environmental Product Declaration(EPD)	Yes
global warming potential [CO2 eq] total	0.593 kg
global warming potential [CO2 eq] during manufacturing	0.625 kg
global warming potential [CO2 eq] during operation	0.235 kg
global warming potential [CO2 eq] after end of life	-0.267 kg
Siemens eco profile (SEP)	Siemens EcoTech
