Home / Siemens / Siemens 3SU1050-1BD20-0AA0-Z Y11 – Mushroom pushbutton, 22 mm, round, metal, shiny, red, 40 mm

Available on request

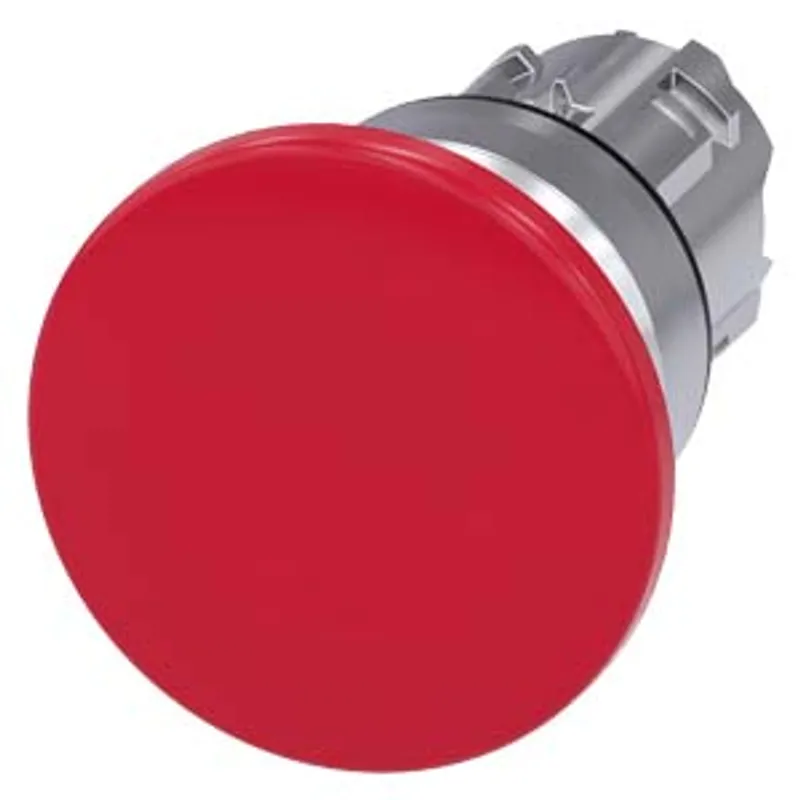

Siemens 3SU1050-1BD20-0AA0-Z Y11 – Mushroom pushbutton, 22 mm, round, metal, shiny, red, 40 mm

Name: Siemens 3SU1050-1BD20-0AA0-Z Y11 – Mushroom pushbutton, 22 mm, round, metal, shiny, red, 40 mm
Brand: Siemens
SKU: 3SU1050-1BD20-0AA0-Z Y11

MPN: 3SU1050-1BD20-0AA0-Z Y11 · Brand: Siemens

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Actuators and indicators, 22 mm, metal, shiny
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.05 kg
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 3SU1050-1BD20-0AA0-Z Y11 be shipped?

3SU1050-1BD20-0AA0-Z Y11 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3SU1050-1BD20-0AA0-Z Y11 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3SU1050-1BD20-0AA0-Z Y11 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3SU1050-1BD20-0AA0-Z Y11, subject to availability and destination.

Mushroom pushbutton, 22 mm, round, metal, shiny, red, 40 mm, momentary contact type, with laser labeling, upper case

Specifications

Enclosure

number of command points

Actuator

principle of operation of the actuating element	momentary contact type
product extension optional light source	No
color of the actuating element	red
material of the actuating element	plastic
shape of the actuating element	round
outer diameter of the actuating element	40 mm
number of switching positions	2

Front ring

product component front ring	Yes
design of the front ring	Standard
material of the front ring	Metal, high gloss
color of the front ring	silver

General technical data

product function – EMERGENCY OFF function	No
product function – EMERGENCY STOP function	No
protection class IP	IP66, IP67, IP69(IP69K)
degree of protection NEMA rating	1, 2, 3, 3R, 4, 4X, 12, 13
shock resistance – according to IEC 60068-2-27	sinusoidal half-wave 15 g / 11 ms
vibration resistance – according to IEC 60068-2-6	10 ... 500 Hz: 5 g
operating frequency maximum	3 600 1/h
mechanical service life (operating cycles) typical	10 000 000
reference code according to IEC 81346-2	S
Substance Prohibitance (day/month/year)	10/01/2014
Net Weight	0.046 kg

Ambient conditions

ambient temperature – during operation	-25 ... +70 °C
ambient temperature – during storage	-40 ... +80 °C
environmental category during operation according to IEC 60721	3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%)

Installation/ mounting/ dimensions

height	40 mm
width	40 mm
shape of the installation opening	round
mounting diameter	22.3 mm
positive tolerance of installation diameter	0.4 mm
mounting height	27.5 mm
installation width	40 mm
installation depth	24.4 mm

Environmental footprint

Environmental Product Declaration(EPD)	Yes
global warming potential [CO2 eq] total	0.593 kg
global warming potential [CO2 eq] during manufacturing	0.625 kg
global warming potential [CO2 eq] during operation	0.235 kg
global warming potential [CO2 eq] after end of life	-0.267 kg
Siemens eco profile (SEP)	Siemens EcoTech
