Home / Siemens / Siemens 3SU1000-0AA50-0AA0-Z Y15 – Pushbutton, 22 mm, round, plastic, blue, pushbutton, flat

Available on request

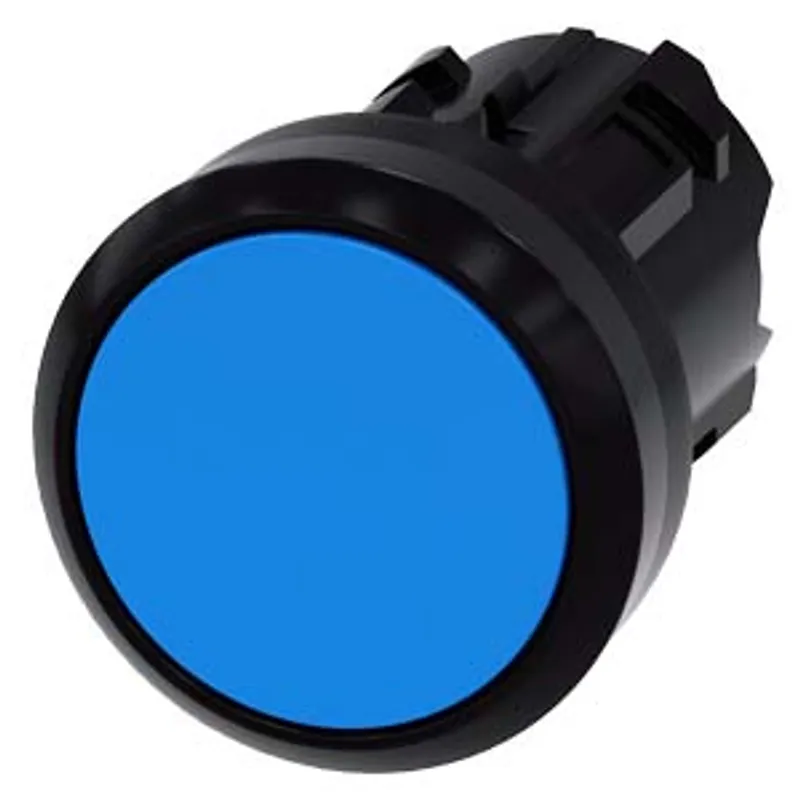

Siemens 3SU1000-0AA50-0AA0-Z Y15 – Pushbutton, 22 mm, round, plastic, blue, pushbutton, flat

Name: Siemens 3SU1000-0AA50-0AA0-Z Y15 – Pushbutton, 22 mm, round, plastic, blue, pushbutton, flat
Brand: Siemens
SKU: 3SU1000-0AA50-0AA0-Z Y15

MPN: 3SU1000-0AA50-0AA0-Z Y15 · Brand: Siemens

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Actuators and indicators, 22 mm, round, plastic, black
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.01 kg
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 3SU1000-0AA50-0AA0-Z Y15 be shipped?

3SU1000-0AA50-0AA0-Z Y15 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3SU1000-0AA50-0AA0-Z Y15 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3SU1000-0AA50-0AA0-Z Y15 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3SU1000-0AA50-0AA0-Z Y15, subject to availability and destination.

Pushbutton, 22 mm, round, plastic, blue, pushbutton, flat, latching, Push-to-release mechanism, with laser labeling, upper case and lower case, always upper case at the beginning of the word

Specifications

Enclosure

number of command points

Actuator

design of the actuating element	Flat button
principle of operation of the actuating element	latching
product extension optional – light source	No
product extension optional – contact module	Yes
color of the actuating element	blue
material of the actuating element	plastic
shape of the actuating element	round
outer diameter of the actuating element	29.5 mm
type of unlocking device	push-to-unlatch mechanism

Front ring

product component front ring	Yes
design of the front ring	Standard
material of the front ring	plastic
color of the front ring	black

General technical data

protection class IP	IP66, IP67, IP69(IP69K)
degree of protection NEMA rating	1, 2, 3, 3R, 4, 4X, 12, 13
shock resistance – according to IEC 60068-2-27	sinusoidal half-wave 15 g / 11 ms
shock resistance – for railway applications according to EN 61373	Category 1, Class B
vibration resistance – according to IEC 60068-2-6	10 ... 500 Hz: 5 g
vibration resistance – for railway applications according to EN 61373	Category 1, Class B
operating frequency maximum	1 800 1/h
mechanical service life (operating cycles) typical	500 000
reference code according to IEC 81346-2	S
Substance Prohibitance (day/month/year)	10/01/2014
Net Weight	0.014 kg

Ambient conditions

ambient temperature – during operation	-25 ... +70 °C
ambient temperature – during storage	-40 ... +80 °C
environmental category during operation according to IEC 60721	3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%)

Installation/ mounting/ dimensions

height	29.5 mm
width	29.5 mm
shape of the installation opening	round
mounting diameter	22.3 mm
positive tolerance of installation diameter	0.4 mm
mounting height	11 mm
installation width	29.5 mm
installation depth	24.3 mm

Environmental footprint

Environmental Product Declaration(EPD)	Yes
global warming potential [CO2 eq] total	0.787 kg
global warming potential [CO2 eq] during manufacturing	0.566 kg
global warming potential [CO2 eq] during operation	0.235 kg
global warming potential [CO2 eq] after end of life	-0.015 kg
Siemens eco profile (SEP)	Siemens EcoTech
