Siemens 3SE5234-1RV40-1AF3
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Enclosure width 31 mm acc. to EN 50047 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.13 kg |
Shipping & availability
When can 3SE5234-1RV40-1AF3 be shipped?
3SE5234-1RV40-1AF3 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3SE5234-1RV40-1AF3 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3SE5234-1RV40-1AF3 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3SE5234-1RV40-1AF3, subject to availability and destination.

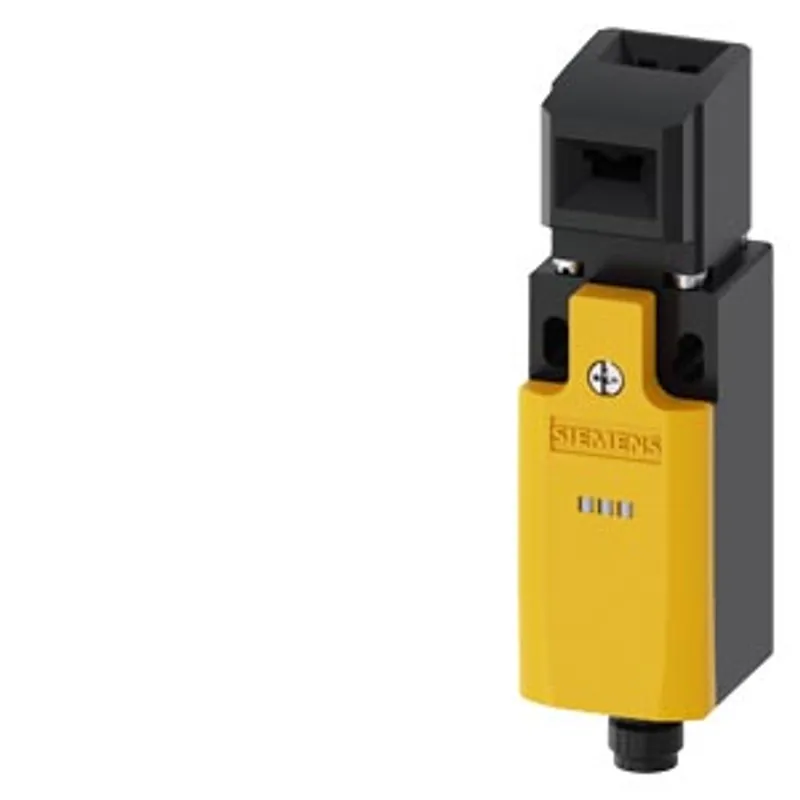

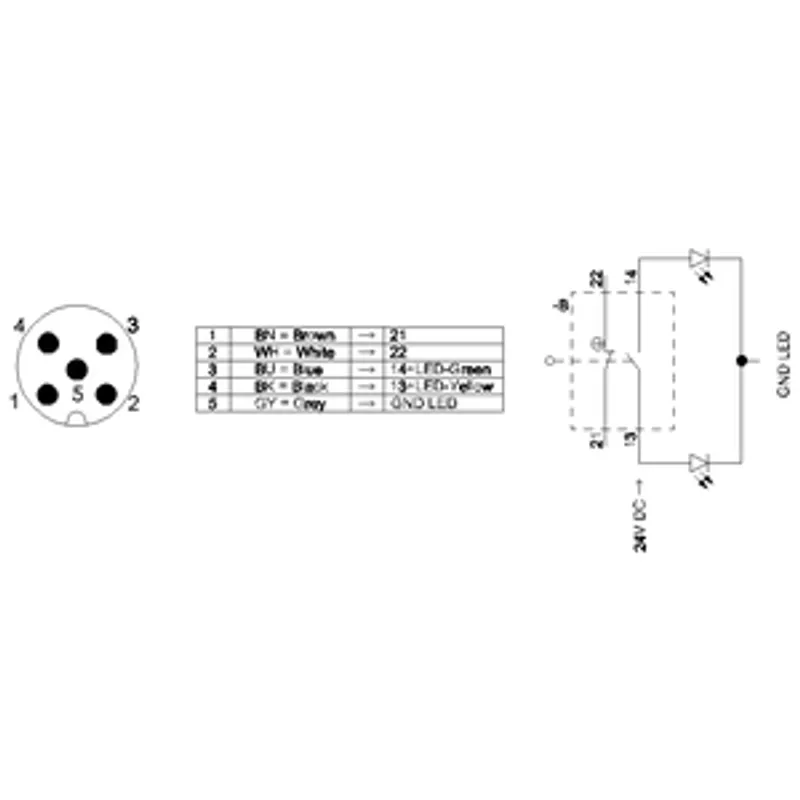

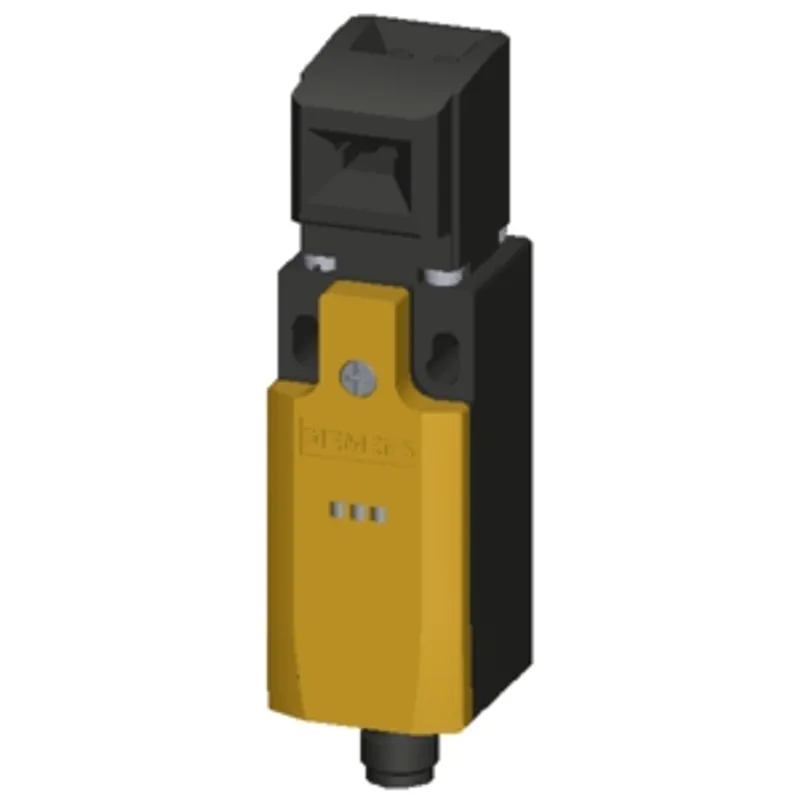

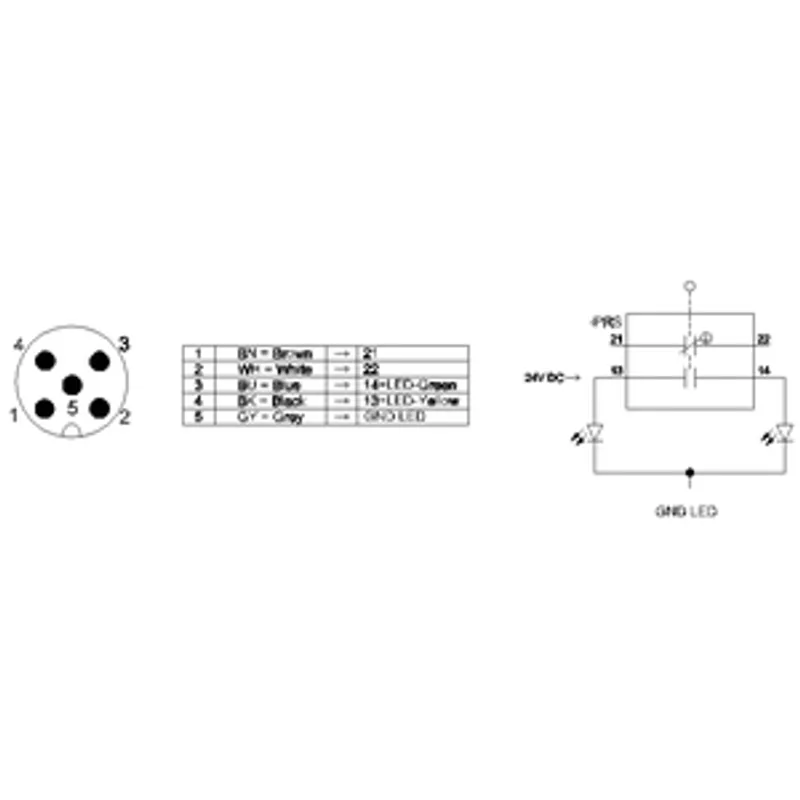

safety position switch with separate actuator plastic enclosure, 31 mm according to EN 50047 1 NO/1 NC slow-action contacts with M12 plug, 5-pole, fixed and 2 LEDs yellow/green 24 V DC, 5 approach directions pin assignment: pin 1 = 21, pin 2 = 22 pin 3 = 14 and LED green, pin 4 = 13 and LED yellow, pin 5 = ground LED. The matching separate actuator 3SE5000-0AV0. must be ordered separately.
