Siemens 1PH8224-1HF22-9BD2-Z G50+K23+N2A+X53 – SIMOTICS M compact asynchronous motor 1500 r/min, 119 kW
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Servo & Motion Control |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 610 kg |
Shipping & availability
When can 1PH8224-1HF22-9BD2-Z G50+K23+N2A+X53 be shipped?
1PH8224-1HF22-9BD2-Z G50+K23+N2A+X53 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1PH8224-1HF22-9BD2-Z G50+K23+N2A+X53 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1PH8224-1HF22-9BD2-Z G50+K23+N2A+X53 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1PH8224-1HF22-9BD2-Z G50+K23+N2A+X53, subject to availability and destination.
SIMOTICS M compact asynchronous motor 1500 r/min, 119 kW, 758 Nm, 240 A, 340 V 1750 r/min, 138 kW, 753 Nm, 240 A, 395 V 2000 r/min, 155 kW, 740 Nm, 235 A, 460 V water cooling, IP55 degree of protection incremental encoder HTL 1024 S/R with temperature sensor Pt1000 type of construction IM B5 with flange A550 (IM V3) shaft with feather key full-key balancing bearing design: standard vibration class: R/A; shaft and flange accuracy: R terminal box (top) cable entry DE signal port right G50: measuring nipple for SPM K23: special finish worldwide X53: paint finish in RAL7035 N2A:(*)
More Siemens parts
Available on requestSiemens 1PH8224-1.F0.-...2 – SIMOTICS M compact asynchronous motor 1500 r/min, 95 kW
Available on requestSiemens 1PH8224-1.F1.-...1 – SIMOTICS M compact asynchronous motor 1500 r/min, 95 kW
Available on requestSiemens 1PH8224-1.F3.-...2 – SIMOTICS M compact asynchronous motor 1500 r/min, 142 kW
Available on requestSiemens 1PH8224-1.F4.-...1 – SIMOTICS M compact asynchronous motor 1500 r/min, 142 kW

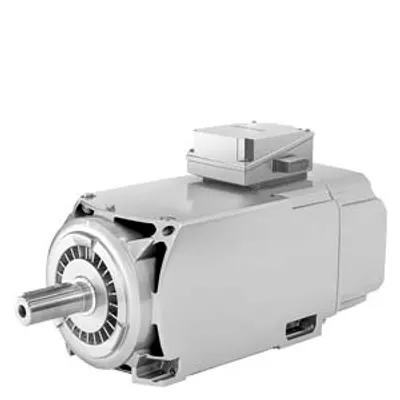

Available on requestSiemens 1PH8224-1.L3.-...1 – SIMOTICS M compact asynchronous motor 2500 r/min, 178 kW
