Siemens 1PH8224-1DF03-0BC1-Z K91+L76 – SIMOTICS M compact asynchronous motor 1500 r/min, 95 kW
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Servo & Motion Control |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 618 kg |
Shipping & availability
When can 1PH8224-1DF03-0BC1-Z K91+L76 be shipped?
1PH8224-1DF03-0BC1-Z K91+L76 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1PH8224-1DF03-0BC1-Z K91+L76 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1PH8224-1DF03-0BC1-Z K91+L76 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1PH8224-1DF03-0BC1-Z K91+L76, subject to availability and destination.
SIMOTICS M compact asynchronous motor 1500 r/min, 95 kW, 605 Nm, 200 A, 340 V 1750 r/min, 110 kW, 600 Nm, 198 A, 395 V forced ventilation direction of air flow DE-->NDE IP55 degree of protection incremental encoder 22-bit with DRIVE-CLiQ interface type of construction IM B35 with A550 flange plain shaft without feather key bearing version: standard vibration class: R/A; shaft and flange accuracy: R L76: EC fan 3 AC 400 V 50/60Hz K91: special flange finishing according to 1PH7224 customer-specific motor according to CIGO no. 10119963
More Siemens parts
Available on requestSiemens 1PH8224-1.D3.-...1 – SIMOTICS M compact asynchronous motor 1000 r/min, 105 kW

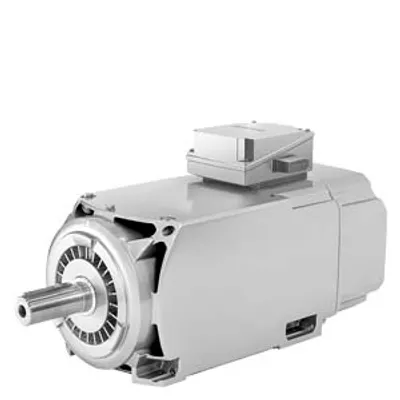

Available on requestSiemens 1PH8224-1.D3.-...2 – SIMOTICS M compact asynchronous motor 1000 r/min, 105 kW
