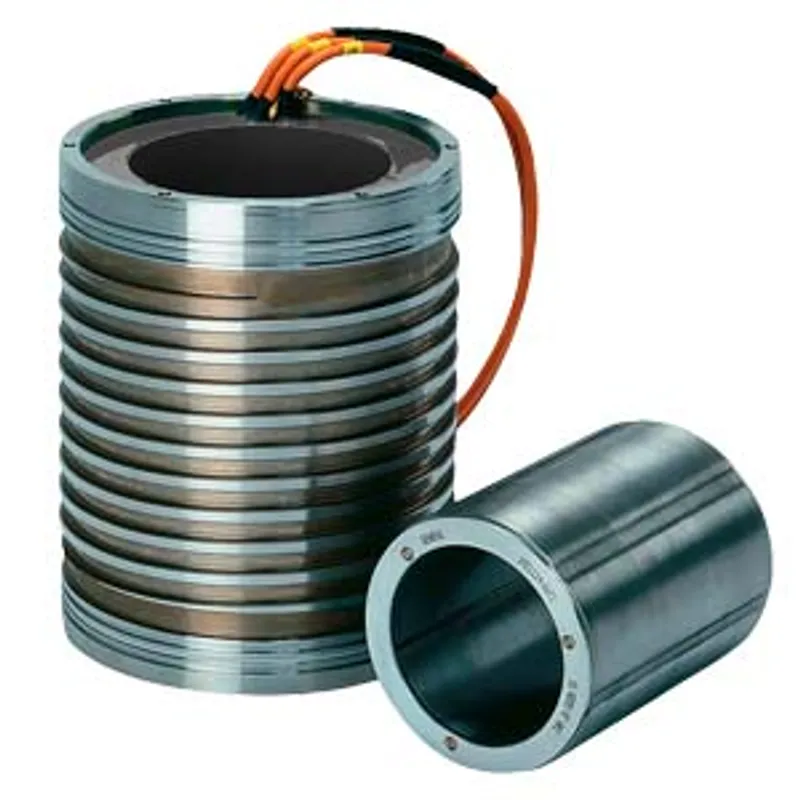

Siemens 1FE1144-8WQ31-6NN2-Z T55+V09 – SIMOTICS M built-in synchronous motor individual component…
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Servo & Motion Control |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 77.7 kg |
Shipping & availability
When can 1FE1144-8WQ31-6NN2-Z T55+V09 be shipped?
1FE1144-8WQ31-6NN2-Z T55+V09 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1FE1144-8WQ31-6NN2-Z T55+V09 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1FE1144-8WQ31-6NN2-Z T55+V09 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1FE1144-8WQ31-6NN2-Z T55+V09, subject to availability and destination.
SIMOTICS M built-in synchronous motor individual component stator, rotor DC link 600 V, water cooling, IP00 Pn=35.1 kW, Nn=780 r/min Mn=430 Nm, Nmax=3500 r/min temperature sensor Pt1000 water-cooled winding overhang encapsulation +full protection (2x temperature sensor) V09: special cooling jacket with thread on two sides T55: special sleeve IDM=110 mm bare cable ends L=0.5 m
