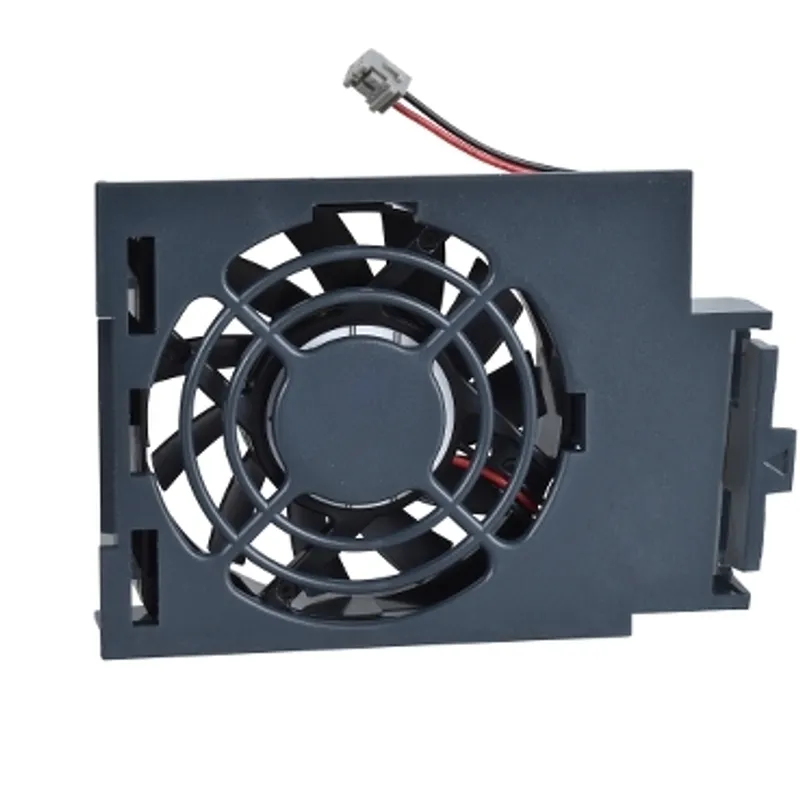

Wear part, fan kit, for variable speed drive, Altivar 61, Altivar 71, Altivar Process 600 900, from 220 to 315kW
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Altivar Process ATV600 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.27 kg |
Shipping & availability
When can VZ3V1213 be shipped?
VZ3V1213 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VZ3V1213 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VZ3V1213 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VZ3V1213, subject to availability and destination.
This product is a wear part for Drive Altivar 61, Drive Altivar 71 and Drive Altivar Process 600, Altivar Process 900. This Fan for variable speed drive is a cooling accessory. it works for variable speed drives from 220kw to 315kw and a rated voltage from 380V to 480V. This Fan increase the Drive life time. The quantity of Fan required depend on the drive ranges. This fan has a fixed type body which is made of plastic. Its dimensions are 16cm (width) x 28.5cm (Length) x 7.5cm (Height) and weighs 270kg. This power fan is compatible with ATV630C22N4 to C31N4, ATV930C22N4, ATV930C22N4C to ATV930C31N4C. Internal fan for drive, with 1 unit for ATV630C22N4, 2 units for ATV630C25N4, and 3 units for ATV630C31N4. Internal fan for drive, with 1 unit for ATV930C22N4(C), 2 units for ATV930C25N4C, and 3 units for ATV930C31N4C Variable Speed Drives for pumps, fans or compressors up to 2600 kW. Variable Speed Drive for conveyors, cranes or mills up to 2600 kW.Drives for variable torque from 0.75 to 800 kW. Drives for heavy duty industry from 0.37 to 630 kW.
Specifications
Specifications
| Range compatibility | Altivar 61/71, Altivar Process 600/900 |
| Accessory / separate part type | Fan kit |
| Accessory / separate part category | Cooling accessory |
| Product or component type | Fan |
| Net weight | 0.27 kg |
| Kit composition | Fan, Mounting bracket, Instruction sheet |
| Product compatibility | Variable speed drive ATV61, Variable speed drive ATV71, Variable speed drive ATV61 Plus, Variable speed drive ATV71 Plus, Variable speed drive ATV71Q, Variable speed drive ATV61Q, Variable speed drive ATV630 wall mount 220 kW 380...480 V 1 per drive, Variable speed drive ATV630 wall mount 250 kW 380...480 V 2 per drive, Variable speed drive ATV630 wall mount 315 kW 380...480 V 3 per drive, Variable speed drive ATV930 wall mount 220 kW 380...480 V 1 per drive, Variable speed drive ATV930 wall mount 250 kW 380...480 V 2 per drive, Variable speed drive ATV930 wall mount 315 kW 380...480 V 3 per drive |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.500 cm |
| Package 1 Width | 18.200 cm |
| Package 1 Length | 20.000 cm |
| Package 1 Weight | 249.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.440 kg |
