Actassi 19-C Patch Panel Sliding Evo 19" 1U 24pt SLIM UTP Empty
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Actassi for Europe |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can VDIG112241U be shipped?
VDIG112241U is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VDIG112241U in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VDIG112241U and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VDIG112241U, subject to availability and destination.

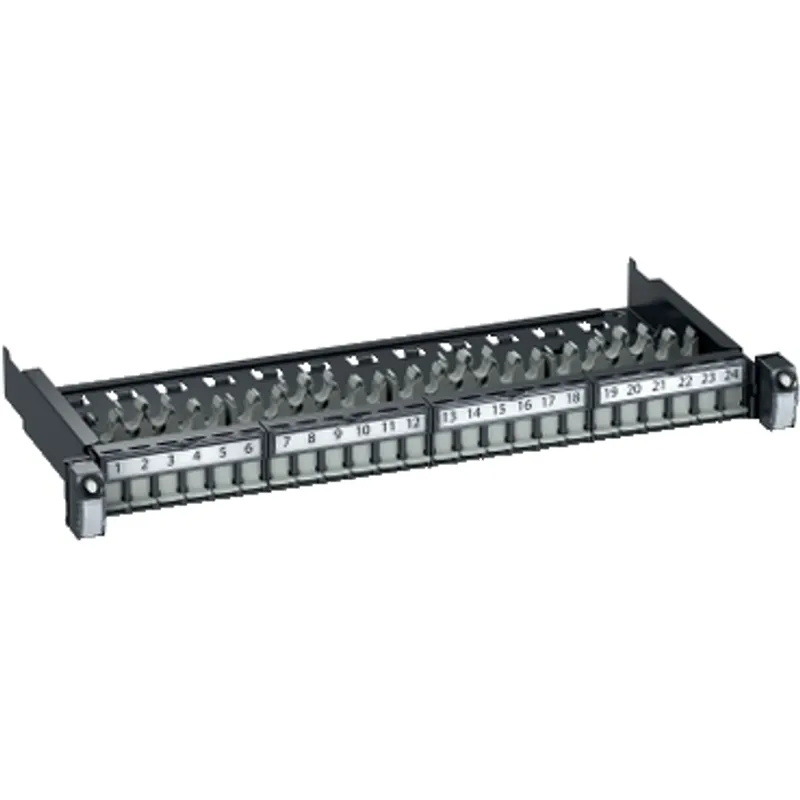

This 19 inch rack can support 24 S-One RJ45 unshielded connectors in 1U height. It is equipped with one quick fix function on both sides to allow a simple fixation into the rack. It has also a sliding function to have access to RJ45 fixation by the front of the panel. RJ45 connectors can be easily fixed by clipping function. It is full equipped with 24 light grey shutters to protect unused port. Other shutter colours exist to allow port identification by colour. 4 labels are provided to identify each ports and are protected by a transparent label holder. 2 dedicated labels are provided on each side to identify the panel inside the rack. Labels are provided and are maintained and protected by transparent label holders. Advanced rear cable management is included to fix each cable in a easy and safe operation.
Specifications
Specifications
| range of product | Actassi |
| Product or component type | Empty sliding 19" data panel |
| Device presentation | Empty |
| Provided equipment | 1 rear cable organizer, 24 light grey shutters, 2 quick fix 19" mountings, 4 label holders |
| Colour | Dark grey (RAL 7016) |
| Variant | Evolution |
| Number of port | 24 port of UTP |
| Communication network category | 5e, 6A, 6 |
| Mounting support | 19" rack |
| Number of rack unit | 1U |
| Type of connector | S-One |
| Material | DC01 metal sheet 1.2 mm, PA6 plastic part, PA66 GF20 plastic part |
| Width | 490 mm, 0.5 m |
| Depth | 230 mm, 0.230 m |
| Height | 45 mm, 0.045 m |
| Net weight | 2.4 kg, 2.400 kg |
| Ambient air temperature for operation | -26…55 °C, -10…55 °C |
| Standards | IEC 60297, NF C 20-150 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 27.000 cm |
| Package 1 Length | 55.000 cm |
| Package 1 Weight | 2.138 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 13.593 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 48 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 118.500 kg |
| Warranty (in months) | 18 |
