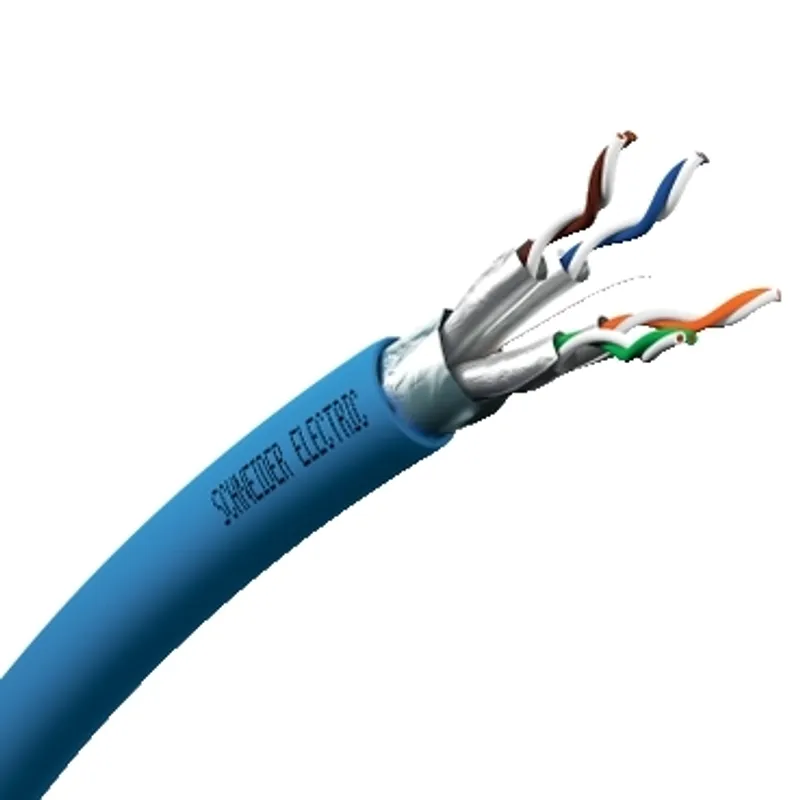

Copper LAN Cable, Actassi, F/FTP, 2x4P, Cat6A, Euroclass D, 550MHz, LSZH, 500m
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Actassi for Europe |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 1001 kg |
Shipping & availability
When can VDICD64X228 be shipped?
VDICD64X228 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VDICD64X228 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VDICD64X228 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VDICD64X228, subject to availability and destination.
This device is a network cable, is blue in color and is used for data communication. The network cable is made of PE (polyethylene), solid bare copper, making it resistant and durable. Its directives are 2006/95/EC - low voltage directive, 2011/65/EU - Ro.HS directive, 305/2011/EU - construction product regulation. The cable type is 2x4 twisted-pairs cable. This network cable is SVHC (substances of very high concern) free. It well satisfied the standard of ANSI/TIA/EIA-568-C.2, EN 50173-1, EN 50174-1. Its communication port protocol is Po.E 15W (Power over Ethernet), Po.E+ 30W (Power over Ethernet Plus), Vo.IP (Voice IP). The cable shielding type is.F/FTP. This device is mercury free as well as heavy metal free, taking care of the environment and your health all the time.
Specifications
Specifications
| Range | Actassi |
| Product or component type | Copper cable |
| Cable packaging | Drum of 500 m |
| Colour tint | Blue |
| Cable shielding type | F/FTP |
| Type of cable | 2x4 twisted-pairs cable |
| Communication network category | 6A |
| remote powering | PoE 15W (Power over Ethernet), PoE+ 30W (Power over Ethernet Plus), 4PPoE 100W (Power over Ethernet) |
| Communication network type | 10GBASE-T |
| Minimum return loss | Guaranteed: 20.1 dB at 100 MHz typical: 24.2 dB, Guaranteed: 17.3 dB at 250 MHz typical: 22 dB, Guaranteed: 17.3 dB at 500 MHz typical: 20.3 dB |
| Attenuation | Guaranteed: 19.1 dB Typical: 17.5 dB @ 100 MHz, Guaranteed: 31.1 dB Typical: 28.4 dB @ 250 MHz, Guaranteed: 45.3 dB Typical: 41.4 dB @ 500 MHz |
| Power sum near-end crosstalk [PSNEXT] | Guaranteed: 62.3 dB Typical: 71.0 dB at 100 MHz, Guaranteed: 56.3 dB Typical: 64.2 dB at 250 MHz, Guaranteed: 51.8 dB Typical: 59.1 dB at 500 MHz |
| Attenuation to Crosstalk Ratio Far-end [ACRF] | Guaranteed: 38 dB Typical: 54.7 dB at 100 MHz, Guaranteed: 30 dB Typical: 46.6 dB at 250 MHz, Guaranteed: 24 dB Typical: 40.5 dB at 500 MHz |
| Power sum attenuation crosstalk ratio far-end [PSACRF] | 35 dB at 100 MHz, 27 dB at 250 MHz, 21 dB at 500 MHz |
| Near end crosstalk [NEXT] | Guaranteed: 65.3 dB Typical: 85.5 dB at 100 MHz, Guaranteed: 59.3 dB Typical: 83.1 dB at 250 MHz, Guaranteed: 54.8 dB Typical: 60.1 dB at 500 MHz |
| Coupling attenuation | >= 85 dB from 30…100 MHz conforming to IEC 61156-5, ed. 2 type II, >= 85 - 20 x log10(f / 100) dB from 100…1000 MHz conforming to IEC 61156-5, ed. 2 type II |
| Transfer impedance | <= 50 mOhm/m at 1 MHz (grade 2), <= 1000 mOhm/m at 100 MHz (grade 2) |
| Input impedance | 100 Ohm |
| Maximum loop resistance | 143.2 Ohm per 1000 m |
| Segregation class | Class d conforming to EN 50174-2 |
| Maximum resistance unbalance | 2 % |
| Pulling force | 200 N |
| Bending radius | Minimum bending radius during installation: 8 x overall diameter, Minimum bending radius after installation: 4 x overall diameter |
| Material | Solid bare copper: conductor, PE (polyethylene): wire insulation, Aluminium/polyester: foil, Tinned copper: drain wire, PE (polyethylene): sheath |
| Euroclass level | Dca s2 d1 a1 |
| Nominal velocity propagation | 80 % |
| linear conductor resistance | 71.6 mΩ/m |
| AWG gauge | AWG 23 |
| Calorific value | 1074 MJ/km |
| Cable outer diameter | 7 mm |
| Width | 14.2 mm |
| Cable length | 500 m |
| Cable weight | 100 kg / 1 km |
| Ambient air temperature for installation | 0…50 °C |
| Ambient air temperature for storage | -20…60 °C |
| Ambient air temperature for operation | -20…60 °C |
| Directives | 2006/95/EC - low voltage directive, 305/2011/EU - construction product regulation |
| Flame retardance | LSZH |
| Standards | ISO/IEC 11801-ed. 3 performance, EN 50173-1 performance, EN 50174-1 performance, ANSI/TIA/EIA-568-C.2 performance, IEC 61156-5-ed. 2.1 performance, EN 50288-10-1 performance, ISO/IEC 14763-2 installation standards, EN 50174-2 installation standards, IEC 60332-1 flame propagation characteristics, IEC 60754-1, IEC 60754-2 acidity of combustion gases, IEC 61034 smoke generation |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 30.000 cm |
| Package 1 Width | 60.000 cm |
| Package 1 Length | 60.000 cm |
| Package 1 Weight | 48.000 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 118.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 310.000 kg |
| Warranty (in months) | 18 |
