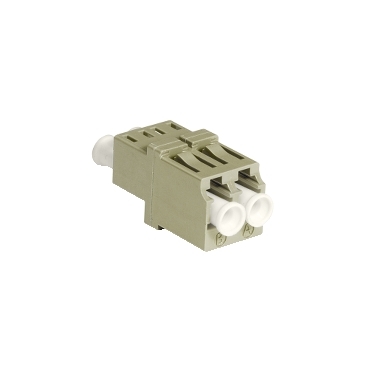

Actassi FL-C Fibre Optic Adapter LC Duplex MM square x1
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Actassi for AsiaPacific |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 6 kg |
Shipping & availability
When can VDIB6051001 be shipped?
VDIB6051001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VDIB6051001 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VDIB6051001 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VDIB6051001, subject to availability and destination.
This duplex LC multimode square shaped fibre optic adapter in beige coloured housing body. It is suitable to connect and align two LC optic connectors for both applications - optic patchpanels in technical rooms and faceplates at workstation. It is with zirconia ceramic material ferrules and snap-in latch.
Specifications
Specifications
| Range | Actassi |
| Product or component type | Multimode fibre optic adapter |
| Provided equipment | Without screws |
| Colour | Beige |
| Type of packing | Bag |
| Quantity per set | 1 |
| Minimum number of matings | 200 cycles |
| Optic fiber diameter | 50/125 µm |
| Fibre performance | OM1, OM2 |
| Connector type | LC duplex sq |
| Material | Composite: ferrule |
| fixing mode | By clips |
| Width | 13 mm |
| Height | 15.3 mm |
| Length | 25 mm |
| Targeted region | Asia Pacific., Europe |
| Ambient air temperature for operation | -25…85 °C |
| Ambient air temperature for storage | -25…85 °C |
| Standards | LC adapter: TIA/EIA-604-10 A, LC adapter: IEC 61754-20 Ed.2, ISO/IEC 11801:2011 Ed.2.2 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.000 cm |
| Package 1 Width | 6.500 cm |
| Package 1 Length | 10.000 cm |
| Package 1 Weight | 6.000 g |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 150 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 15.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 1.113 kg |
| Warranty (in months) | 18 |
