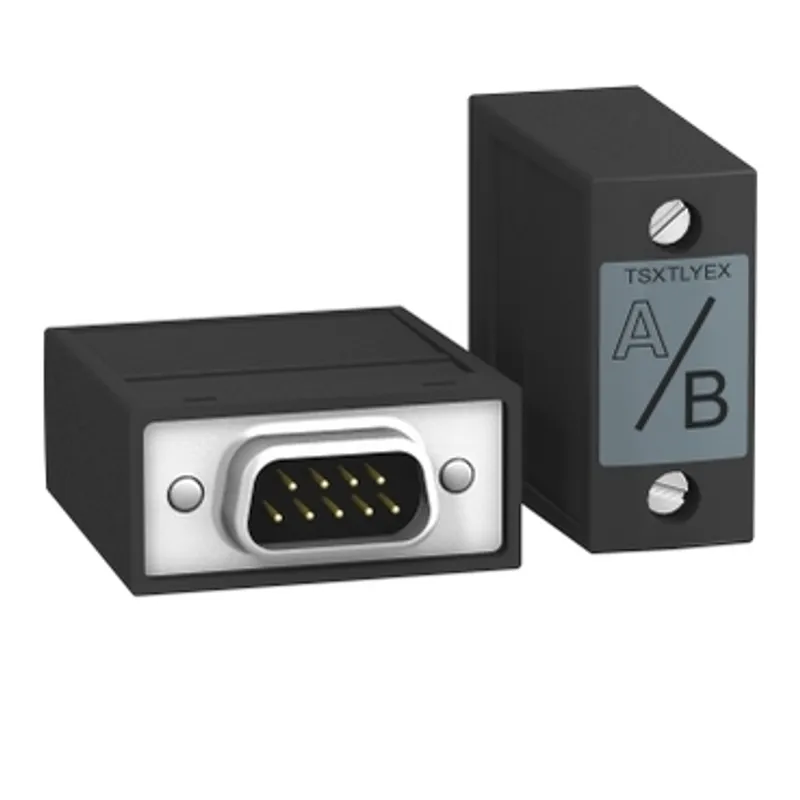

Schneider Electric TSXTLYEX – line terminator - for rack end - set of 2
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon Premium |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.05 kg |
| UPC / EAN | 3389110864243 |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can TSXTLYEX be shipped?
TSXTLYEX is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TSXTLYEX in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TSXTLYEX and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TSXTLYEX, subject to availability and destination.
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This line terminator for rack end is a connection accessory of programmable automation controller modules. This product is composed with one 9-way SUB-D connector labelled A and one 9-way SUB-D connector labelled B. It weighs 0.05kg. It is suitable for process and machine safety functions like emergency shut down, fire and gas, burner or boiler management, control access for safety machines, material handling and turbo machinery. This product is compatible for use with TSXRKYxxEX rock end. The set includes 2 pieces. Reduces maintenance and training costs, same spare parts in stock, unique training for different Programmable Automation Controllers (PAC).
Specifications
Specifications
| Range of product | Modicon Premium Automation platform |
| Accessory / separate part category | Connection accessories |
| Accessory / separate part type | Line terminator |
| Accessory / separate part designation | Line terminators |
| Accessory / separate part destination | Rack end |
| Quantity per set | Set of 2 |
| Product compatibility | TSXRKY..EX. |
| Kit composition | 1 connector SUB-D 9 labelled A, 1 connector SUB-D 9 labelled B |
| Net weight | 0.05 kg |
Packaging
| Package 1 | 1 PCE, 9.000 cm × 5.000 cm × 2.000 cm (L × W × H), 54.000 g |
| Package 2 | 200 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 11.540 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
| Product data sheet TSXTLYEX |
