Available on request

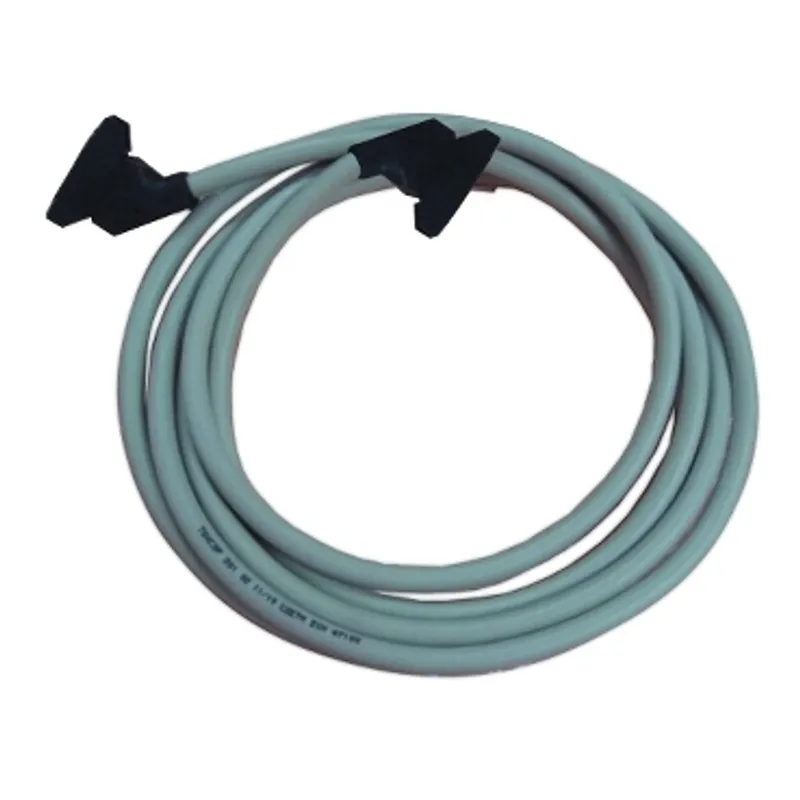

connecting cable - Modicon Premium - 10 m - for sub-base ABE7H16R20
MPN: TSXCDP1003 · Brand: Schneider Electric
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Modicon Quantum |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 1.23 kg |
Shipping & availability
When can TSXCDP1003 be shipped?
TSXCDP1003 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TSXCDP1003 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TSXCDP1003 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TSXCDP1003, subject to availability and destination.
Specifications
Specifications
| Range of product | Modicon Premium |
| Accessory / separate part designation | Connecting cable |
| Accessory / separate part type | Connecting cable |
| Accessory / separate part category | Connection accessories |
| Accessory / separate part destination | Sub-base ABE7H16R20 |
| Product compatibility | TSXCTY4A, TSXCTY2C, TSXCFY21, TSXCTY2A, TSXCCY1128, TSXCFY11, TSXCAY |
| Cable length | 10 m |
| Electrical connection | 1 connector HE10, 20 ways for module side, 1 connector HE10, 20 ways for PLC side |
| Wire section | 0.324 mm² |
| Net weight | 1.23 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 23.500 cm |
| Package 1 Length | 25.000 cm |
| Package 1 Weight | 1.430 kg |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 6.050 kg |
| Warranty | 18 months |
