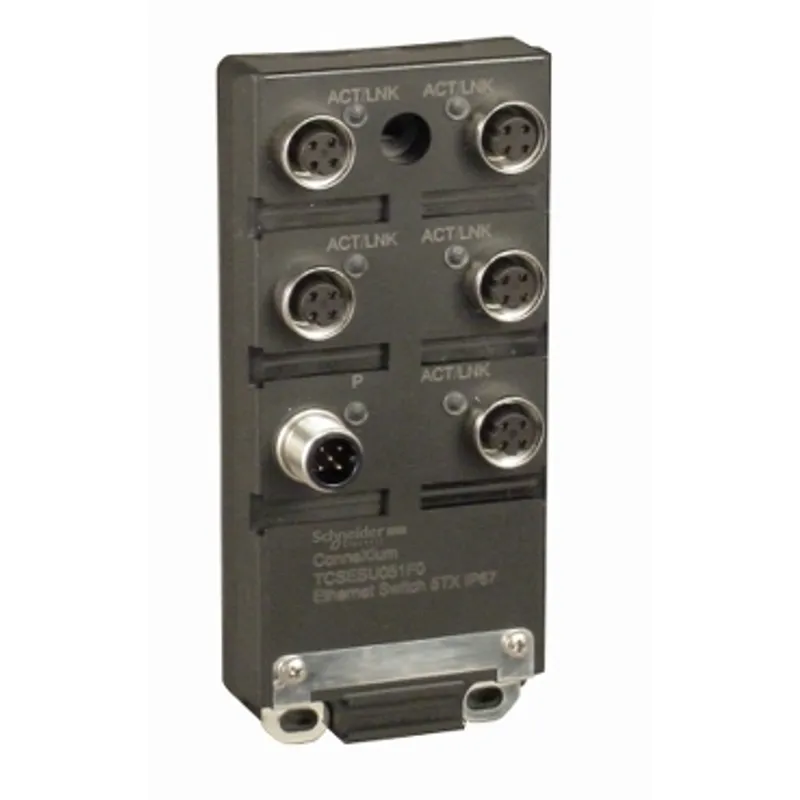

switch, Modicon Networking, unmanaged switch, 5 ports for copper M12, IP67
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon Networking |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.21 kg |
Shipping & availability
When can TCSESU051F0 be shipped?
TCSESU051F0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TCSESU051F0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TCSESU051F0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TCSESU051F0, subject to availability and destination.
This product is part of the Modicon Networking range, an offer of Modicon IP67 Unmanaged Switch. This device comes with Ethernet TCP/IP protocol. It comes with 5 copper cable transmission ports. It provides simple connectivity for multiple Ethernet device . This product works at a power consumption of 3.2W and a rated voltage of 24V DC. It is furnished with 5-way removable M12 connector (power supply) for electrical connection Its dimensions are 60mm (width) x 126mm (height) x 31mm (depth) and weighs 0.21 kg. It has shielded connectors which are suitable for medium, isolated networks or system with medium network traffic and network with medium complexity levels. It is CE, UL, RCM certified and conforms to UL 508 and EN/IEC 61131 standards. It is designed to be mounted on flat surface using screws. The Modicon Networking range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network.
Specifications
Specifications
| Range of product | Modicon Networking |
| Product or component type | Ethernet TCP/IP unmanaged switch |
| Communication port protocol | Ethernet TCP/IP |
| Port Ethernet | 10/100BASE-TX - 5 port(s) copper cable |
| Maximum number of switches in cascade | Unlimited |
| Integrated connection type | 1 M12 port copper cable |
| Transmission support medium | Twisted shielded pairs cable CAT 5E for copper cable |
| Maximum cable distance between devices | 100 m copper cable |
| [Us] rated supply voltage | 24 V |
| Supply voltage limits | 18…32 V DC SELV |
| Power consumption in W | 3.2 W |
| Electrical connection | Removable M12 connector 5 ways power supply |
| Mounting support | 35 mm symmetrical DIN rail |
| Marking | CE, UL, RCM |
| Local signalling | 1 LED (green) for power supply, 1 LED per channel (green) for link status |
| Ethernet cabling system | TF switches |
| Width | 60 mm |
| Height | 126 mm |
| Depth | 31 mm |
| Net weight | 0.21 kg |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 0…95 % non-condensing |
| IP degree of protection | IP67 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Standards | UL 61010, EN/IEC 61131 |
| Product certifications | CE, UL, RCM, EAC, UKCA |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.500 cm |
| Package 1 Width | 16.000 cm |
| Package 1 Length | 23.500 cm |
| Package 1 Weight | 431.000 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 5.200 kg |
| Warranty | 18 months |
