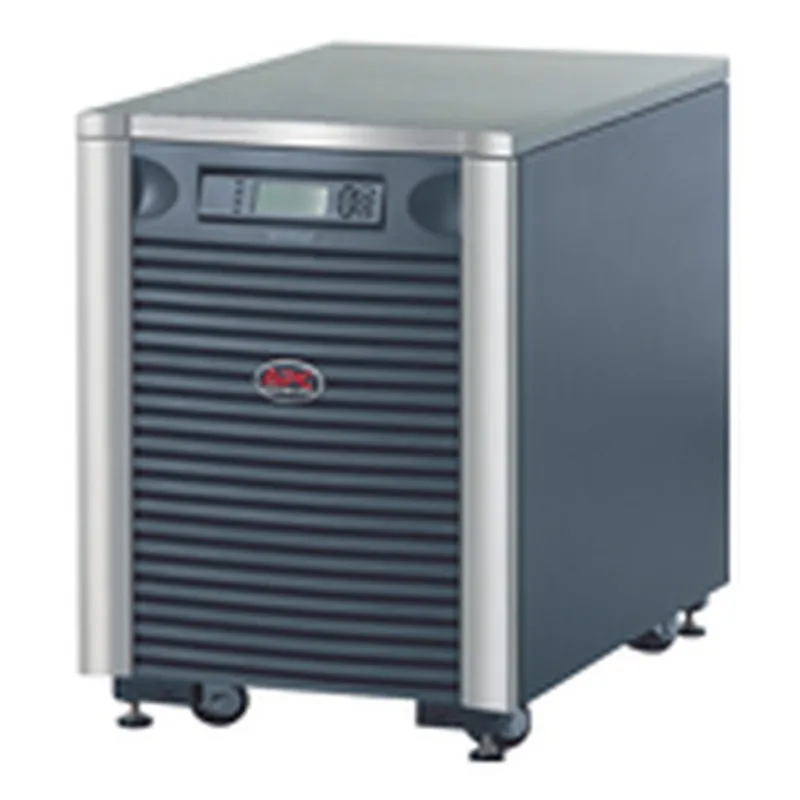

APC Symmetra LX 8kVA Scalable to 8kVA N+1 Tower, 220/230/240 or 380/400/415V
MPN: SYA8K8I · Brand: Schneider Electric
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | APC Symmetra |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 201.82 kg |
Shipping & availability
When can SYA8K8I be shipped?
SYA8K8I is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up SYA8K8I in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for SYA8K8I and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SYA8K8I, subject to availability and destination.
High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.
Specifications
Specifications
| Presentation | High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks. |
| Lead time | Usually in Stock |
| Max. Capacity Used | |
| Main Input Voltage | 220 V AC 1 phase, 400 V AC 3 phases, 230 V AC 1 phase, 240 V AC 1 phase, 380 V AC 3 phases, 415 V AC 3 phases |
| Input voltage | 220 V, 240 V, 380 V, 415 V |
| Input harmonic distortion | Less than 7 % for full load |
| Input voltage limits | 155...276 V 1:1, 290...480 V 3:1 |
| Number of input connectors | 1 hard wire 3-wire (1P + N + E), 1 hard wire 5-wire (3P + N + E) |
| Network frequency | 45...65 Hz auto-sensing |
| Output voltage | 220 V, 240 V |
| Rated power in W | 5600 W |
| rated power in VA | 8000 VA |
| Output connector type | Hard wire 3-wire (H N + E) for 1 zone(s) |
| Bypass type | Internal bypass (automatic and manual) |
| Crest factor | Up to 5 : 1 |
| Harmonic distortion | Less than 5 % at full load |
| Maximum configurable power in VA | 8000 VA |
| Maximum configurable power in W | 5600 W |
| Maximum output current | 36 A |
| UPS type | On-Line |
| Wave type | Sine wave |
| Efficiency | 90 % (full load) |
| Output frequency | 47...63 Hz sync to mains, 60 Hz +/- 0.1 % for 60 Hz nominal unsynchronised, 50 Hz +/- 0.1 % for 50 Hz nominal unsynchronised |
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
| Battery type | Lead-acid battery |
| Control panel | Multifunction LCD status and control console |
| Emergency power off | Yes |
| Free slots | 1 |
| Preinstalled device | Network management card 2 with environmental monitoring |
| Alarm | Audible and visible alarms : prioritized by severity |
| UPS connectivity | Serial port, Available expansion slot, Pre-installed network management card 3 |
| Colour | Black, Silver |
| Height | 671 mm |
| Width | 483 mm |
| Depth | 726 mm |
| Net weight | 201.82 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Tower |
| Two post mountable | 0 |
| USB compatible | No |
| Provided equipment | CD with software, Documentation CD, Installation guide, User manual, Web/SNMP management card |
| Number of power module filled slots | 2 |
| Number of power module free slots | 1 |
| Additional specification | 4kVA power increments |
| Redundant | Yes |
| Range of product | Symmetra LX |
| Product or component type | Uninterruptible power supply (UPS) |
| Performance multiplier | 1 |
| Value multiplier | 1 |
| Size UPS version | Internetworking, Server, Telecom |
| Curve equation | Efficiency |
| Curve load maximum | 100 % |
| Curve X-axis maximum | 100 % |
| Curve X-axis minimum | 0 % |
| Curve X-axis title | Load |
| Curve X-axis units | Percentage |
| Curve Y-axis maximum | 100 % |
| Curve Y-axis minimum | 50 % |
| Curve Y-axis title | Efficiency |
| Curve Y-axis units | Percentage |
| Graph display | 1 |
| Show note OP temperature | No |
| UPS size | L |
| Product certifications | C-Tick, CE, GOST, VDE |
| Standards | EN 50091-1, EN 50091-2, EN 55022 class A, EN 55024, EN 60950, IEC 60950 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…4572 m |
| Relative humidity | 0…95 % |
| Storage Relative Humidity | 0…95 % |
| Acoustic level | 62 dBA |
| Heat dissipation | 2762 Btu/h |
| Operating altitude | 0...10000 ft |
| Run Time | View Runtime Graph |
| Extended runtime | 1 |
| Number of battery filled slots | 2 |
| Number of battery free slots | 0 |
| Battery recharge time | 3 h |
| Battery life | 3…5 year(s) |
| Battery charger power | 574 W rated |
| Number of tare power | 200 W |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 91.4 cm |
| Package 1 Width | 59.9 cm |
| Package 1 Length | 99.7 cm |
| Package 1 Weight | 229.56 kg |
| Warranty (in months) | 24 |
