Home / Schneider Electric / APC Symmetra LX 4kVA Scalable to 8kVA N+1 Rack-mount, 220/230/240V or 380/400/415V

Available on request

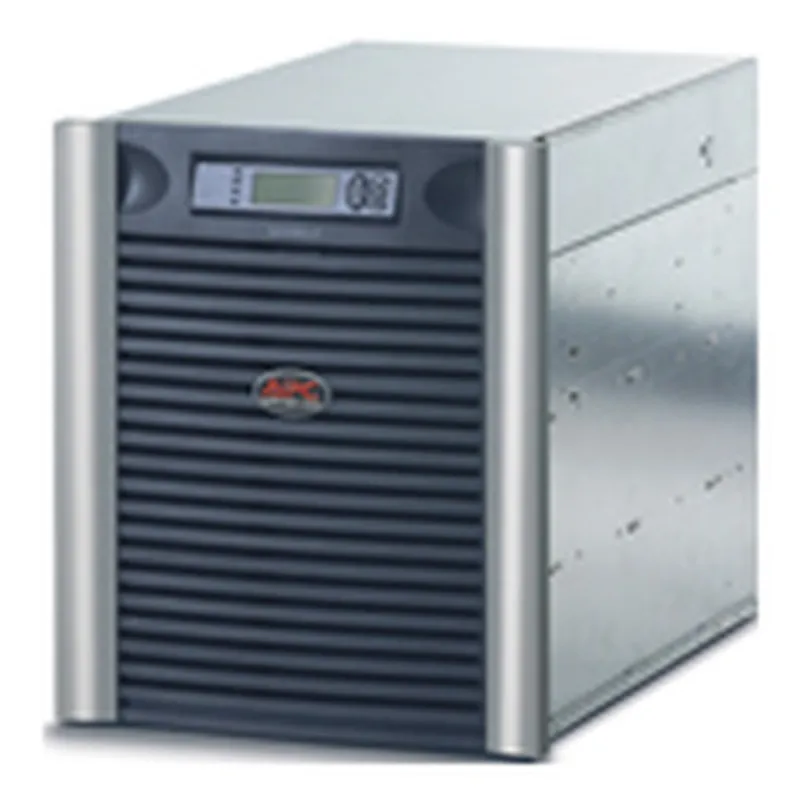

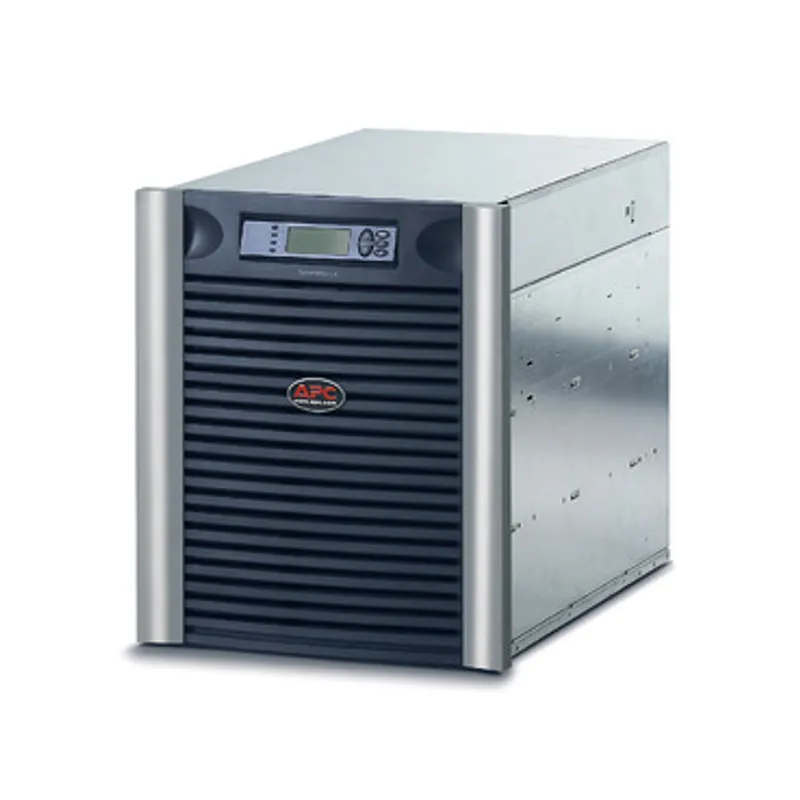

APC Symmetra LX 4kVA Scalable to 8kVA N+1 Rack-mount, 220/230/240V or 380/400/415V

Name: APC Symmetra LX 4kVA Scalable to 8kVA N+1 Rack-mount, 220/230/240V or 380/400/415V
Brand: Schneider Electric
SKU: SYA4K8RMI

MPN: SYA4K8RMI · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	APC Symmetra
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	134.09 kg

Shipping & availability

When can SYA4K8RMI be shipped?

SYA4K8RMI is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up SYA4K8RMI in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for SYA4K8RMI and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SYA4K8RMI, subject to availability and destination.

High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.

Specifications

Presentation	High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.
Lead time	Usually in Stock
Max. Capacity Used
Main Input Voltage	220 V AC 1 phase, 400 V AC 3 phases, 230 V AC 1 phase, 240 V AC 1 phase, 380 V AC 3 phases, 415 V AC 3 phases
Input voltage	220 V, 240 V, 380 V, 415 V
Input harmonic distortion	Less than 7 % for full load
Cos phi	0.98
Input voltage limits	155...276 V, 290...480 V 3:1
Number of input connectors	1 hard wire 3-wire (1P + N + E), 1 hard wire 5-wire (3P + N + E)
Network frequency	45...65 Hz auto-sensing
Output voltage	220 V, 240 V
Rated power in W	2800 W
rated power in VA	4000 VA
Output connection type	8 IEC 60320 C13, 6 IEC 60320 C19
Output connector type	Hard wire 3-wire (H N + E) for 1 zone(s)
Bypass type	Internal bypass (automatic and manual)
Crest factor	Up to 5 : 1
Harmonic distortion	Less than 5 % at full load
Maximum configurable power in VA	8000 VA
Maximum configurable power in W	5600 W
Maximum output current	18 A
UPS type	On-Line
Wave type	Sine wave
Output frequency	47...63 Hz sync to mains, 60 Hz +/- 0.1 % for 60 Hz nominal unsynchronised, 50 Hz +/- 0.1 % for 50 Hz nominal unsynchronised
Additional information	Configurable for 220 : 230 or 240 nominal output voltage
Battery type	Lead-acid battery
Control panel	Multifunction LCD status and control console
Emergency power off	Yes
Free slots	1
Preinstalled device	Network management card 2 with environmental monitoring
Alarm	Audible and visible alarms : prioritized by severity
UPS connectivity	Serial port, Available expansion slot, Pre-installed network management card 3
Number of rack unit	13U
Colour	Black, Silver
Height	572 mm
Width	472 mm
Depth	688 mm
Net weight	134.09 kg
Mounting location	Front
Mounting preference	Lower
Mounting mode	Rack-mounted with included kit
Two post mountable	0
USB compatible	No
Provided equipment	CD with software, Documentation CD, Installation guide, User manual, Web/SNMP management card
Number of power module filled slots	1
Number of power module free slots	2
Additional specification	4kVA power increments
Redundant	Yes
Range of product	Symmetra LX
Product or component type	Uninterruptible power supply (UPS)
Performance multiplier	1
Value multiplier	1
Size UPS version	Internetworking, Server, Telecom
Curve equation	Efficiency
Curve fixed loss	0.0663
Curve load maximum	100 %
Curve load minimum	7 %
Curve proportional loss	0.0306
Curve square loss	0.008
Curve test cond ID	Curve fit to measured efficiency data. All measurements taken in normal operating mode, at typical environmental conditions, with nominal electrical input and balanced resistive load (PF = 1.0) output.
Curve X-axis maximum	100 %
Curve X-axis minimum	0 %
Curve X-axis title	Load
Curve X-axis units	Percentage
Curve Y-axis maximum	100 %
Curve Y-axis minimum	50 %
Curve Y-axis title	Efficiency
Curve Y-axis units	Percentage
Graph display	1
Show note OP temperature	No
UPS size	L
Product certifications	C-Tick, CE, GOST, VDE
Standards	EN 50091-1, EN 50091-2, EN 55022 class A, EN 55024, EN 60950, IEC 60950
Ambient air temperature for operation	0…40 °C
Ambient air temperature for storage	-15…45 °C
Storage altitude	0…4572 m
Relative humidity	0…95 %
Storage Relative Humidity	0…95 %
Acoustic level	62 dBA
Heat dissipation	2762 Btu/h
Operating altitude	0...10000 ft
Run Time	View Runtime Graph
Efficiency	View Efficiency Graph
Extended runtime	1
Number of battery filled slots	1
Number of battery free slots	1
Battery recharge time	3 h
Battery life	3…5 year(s)
Battery charger power	287 W rated
Number of tare power	110 W
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	78.7 cm
Package 1 Width	59.9 cm
Package 1 Length	99.7 cm
Package 1 Weight	166.36 kg
Warranty (in months)	24
