Home / Schneider Electric / APC DIN Rail - Panel Mount UPS with Standard Battery 500VA 230V

Available on request

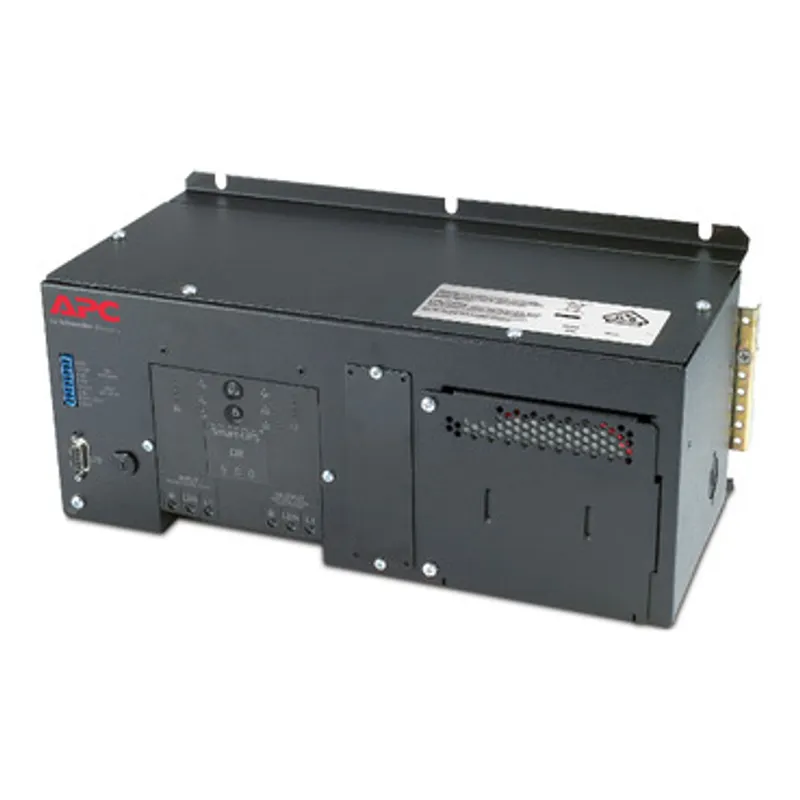

APC DIN Rail - Panel Mount UPS with Standard Battery 500VA 230V

Name: APC DIN Rail - Panel Mount UPS with Standard Battery 500VA 230V
Brand: Schneider Electric
SKU: SUA500PDRI-S

MPN: SUA500PDRI-S · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Industrial UPS
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	12.86 kg

Shipping & availability

When can SUA500PDRI-S be shipped?

SUA500PDRI-S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up SUA500PDRI-S in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for SUA500PDRI-S and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SUA500PDRI-S, subject to availability and destination.

Proven Industrial UPS SUA500PDRI-S provides power protection for control applications and harsh environments.

Specifications

Presentation	Proven Industrial UPS power protection for control applications and harsh environments.
Lead time	Usually in Stock
Main Input Voltage	230 V
Input voltage	220 V, 240 V
Input voltage limits	151...302 V adjustable, 160...285 V
Number of input connectors	1 hard wire 3-wire (1P + N + E)
Network frequency	50/60 Hz +/- 3 Hz auto-sensing
Output voltage	220 V, 240 V
Rated power in W	325 W
rated power in VA	500 VA
Output connector type	Hard wire 3-wire (H N + E) for 1 zone(s)
Harmonic distortion	Less than 5 %
Maximum configurable power in VA	500 VA
Maximum configurable power in W	325 W
UPS type	Line interactive
Efficiency	94 % (full load)
Output frequency	47...53 Hz for 50 Hz nominal sync to mains, 57...63 Hz for 60 Hz nominal sync to mains
Control panel	LED status display with load and battery bar-graphs and on line : on battery : replace battery : and overload indicators
Emergency power off	Yes
Free slots	1
Alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge energy rate	540 J
Noise suppression	Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Height	148 mm
Width	362 mm
Depth	171 mm
Net weight	12.86 kg
Mounting preference	No preference
Mounting mode	Not rack-mountable
Two post mountable	0
USB compatible	No
Provided equipment	CD with software, Documentation CD, Installation guide, Smart UPS signalling RS-232 cable
Number of power module filled slots	0
Number of power module free slots	0
Redundant	No
Product or component type	Uninterruptible power supply (UPS)
Product certifications	CE, VDE
Standards	EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
Ambient air temperature for operation	0…40 °C
Ambient air temperature for storage	-15…45 °C
Storage altitude	0…15240 m
IP degree of protection	IP20
Relative humidity	0…95 %
Storage Relative Humidity	0…95 %
Acoustic level	55 dBA
Heat dissipation	90 Btu/h
Operating altitude	0...10000 ft
Battery type	Lead-acid battery
Extended runtime	0
Number of battery filled slots	1
Number of battery free slots	1
Battery recharge time	2 h
Number of battery replacement quantity	1
Battery life	3…5 year(s)
Replacement battery	APCRBC135
Battery charger power	60 W rated
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	43.000 cm
Package 1 Width	60.000 cm
Package 1 Length	80.000 cm
Package 1 Weight	19.990 kg
Warranty (in months)	24
