pre-assembled relay, Harmony Solid State Relays, 2A, zeroVoltage switching, screw sockets, input 16...30V DC, output 24...250V AC
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Harmony Solid State Relays |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.03 kg |
Shipping & availability
When can SSL1A12BDPV be shipped?
SSL1A12BDPV is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up SSL1A12BDPV in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for SSL1A12BDPV and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SSL1A12BDPV, subject to availability and destination.

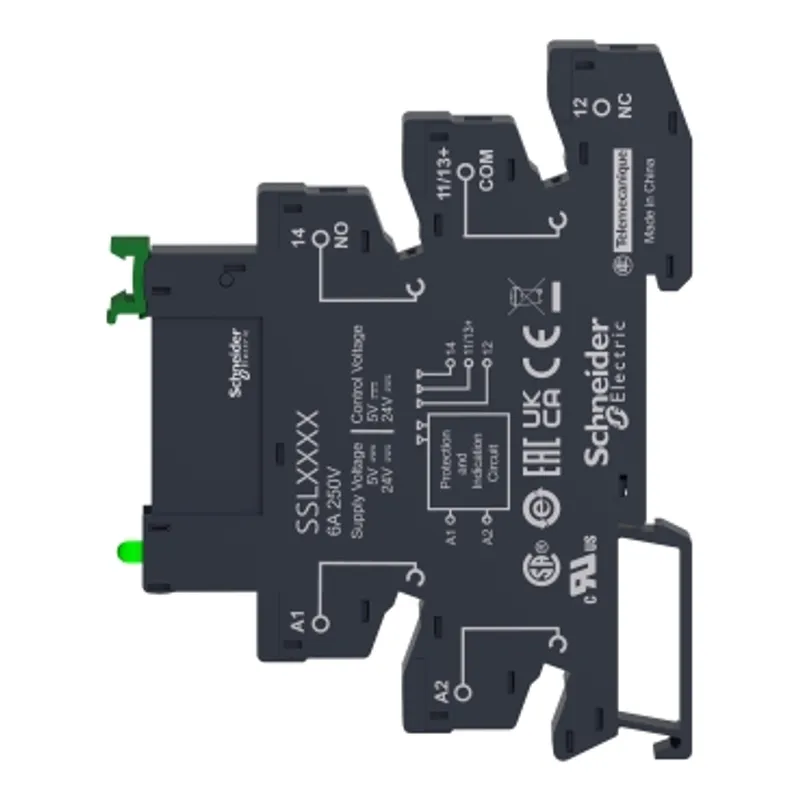

This slim interface solid state relay belongs to the Schneider Electric Harmony solid state relays range. This is a pre-assembled relay mounted on a socket that has a built-in reverse polarity protection circuit and a LED indicator. This is a 2A zero voltage switching slim relay with 16Vdc to 30Vdc input and 24Vac to 250 Vac output. This pre-assembled relay is a ready-to-go package saving assembly time. This 6mm relay has an IP67 water resistant encapsulation and a IP20 socket protection. The relay socket connection is by screw connector type with a lever for locking or releasing the relay. This SSL weighs 0.033Kg. It is the ideal solution for packaging, HVAC, injection molding, textile machines, medical equipment, and heating control applications. It conforms to international standard and certifications like IEC, UL, CSA, CE, ROHS, GOST, EN, and REACH. It is sold in lots of 30. Thiss is a complete range of control input and load output configurations for both AC and DC switching applications. The pre-assembled range in SSL brings you easier selection, time-saving in installation and robustness.
Specifications
Specifications
| Range of product | Harmony Solid State Relays |
| Device short name | SSL |
| Network number of phases | 1 phase |
| [Uc] control circuit voltage | 16...30 V DC |
| Connections - terminals | Flexible cable with cable end,clamping capacity: 0.2...2.5 mm² (AWG 24...AWG 14), Solid cable with cable end,clamping capacity: 0.2...2.5 mm² (AWG 24...AWG 14) |
| Output switching mode | Zero voltage switching |
| Mounting support | Screw socket |
| [In] rated current | 2 A |
| Output voltage | 24...250 V AC |
| CLAMPING FORCE | < 0.5 N.m, 4.4 lb-in |
| Capacitance unbalance | 1.5 pF input/output |
| Minimum switching voltage | 16 V DC turn-on |
| Maximum switching voltage | 5 V DC turn-off |
| Input impedance | 3.43 kOhm |
| Solid state output type | Zero voltage switching, SCR output |
| Load current | 0.07…2 A |
| Transient Overvoltage | 600 V AC |
| Surge current | 120 A for 16.6 ms, 115 A for 20 ms |
| Maximum voltage drop | <1.1 V on-state |
| Maximum I²t for fusing | 285 A².s for 10 ms at 50 Hz, 260 A².s for 8.3 ms at 60 Hz |
| Maximum leakage current | 4 mA off-state |
| DV/dt | 500 V/µs off-state at maximum voltage |
| Response time | 0.5 cycle (turn-on), 0.5 cycle (turn-off) |
| Overvoltage category | III |

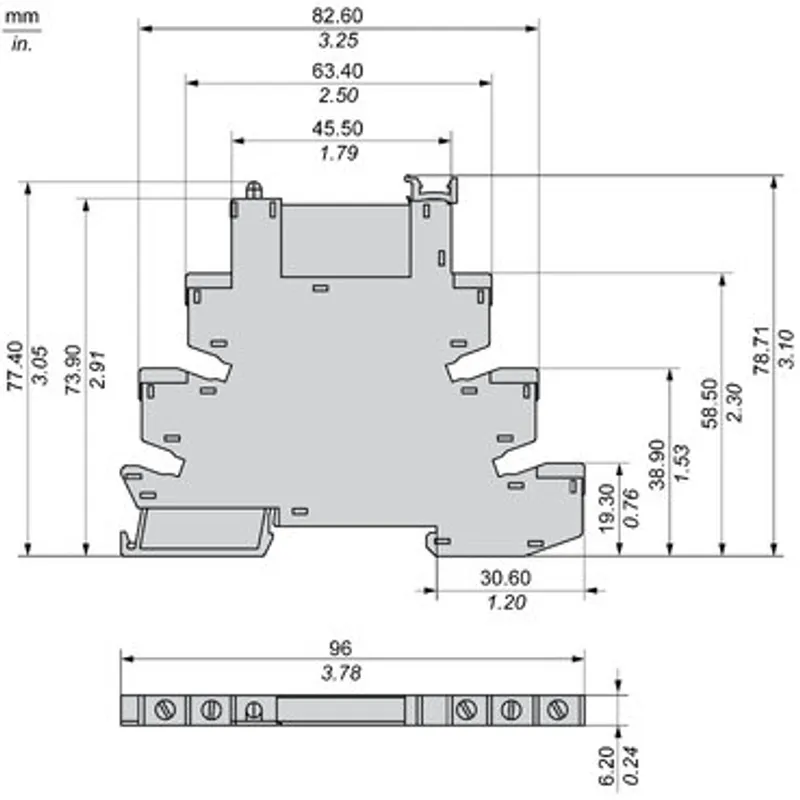

| Width | 6.2 mm |
| Height | 96.5 mm |
| Depth | 79.5 mm |
| Net weight | 0.0285 kg |
| Device presentation | Complete product |
| Flame retardance | V0 conforming to UL 94 |
| Dielectric strength | 2500 V for input/output |
| Pollution degree | 2 |
| Standards | IEC 60950-1, IEC 61000, IEC 62314, IEC 61984, EN 61984 |
| Product certifications | UL, CSA, CE, UL 508, CSA22.2 No. 14-10, GOST |
| Marking | CURus, CSA, CE, EAC |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | -20…70 °C |
| Ambient air temperature for storage | -20…85 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 0.500 cm |
| Package 1 Width | 8.000 cm |
| Package 1 Length | 9.700 cm |
| Package 1 Weight | 28.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 30 |
| Package 2 Height | 9.200 cm |
| Package 2 Width | 10.200 cm |
| Package 2 Length | 20.000 cm |
| Package 2 Weight | 897.000 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 60 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 2.540 kg |
| Warranty (in months) | 18 |
