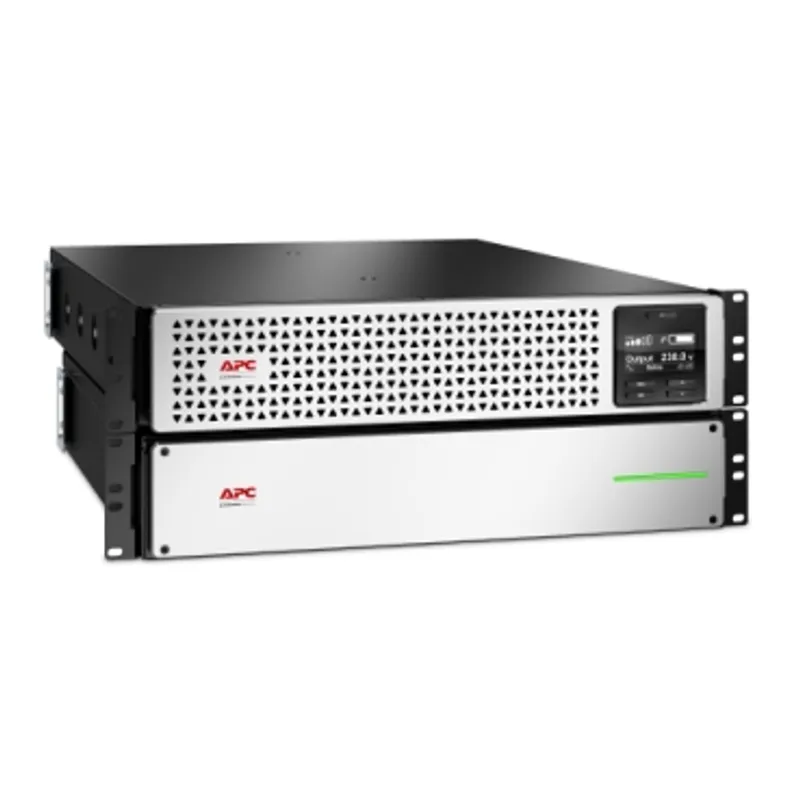

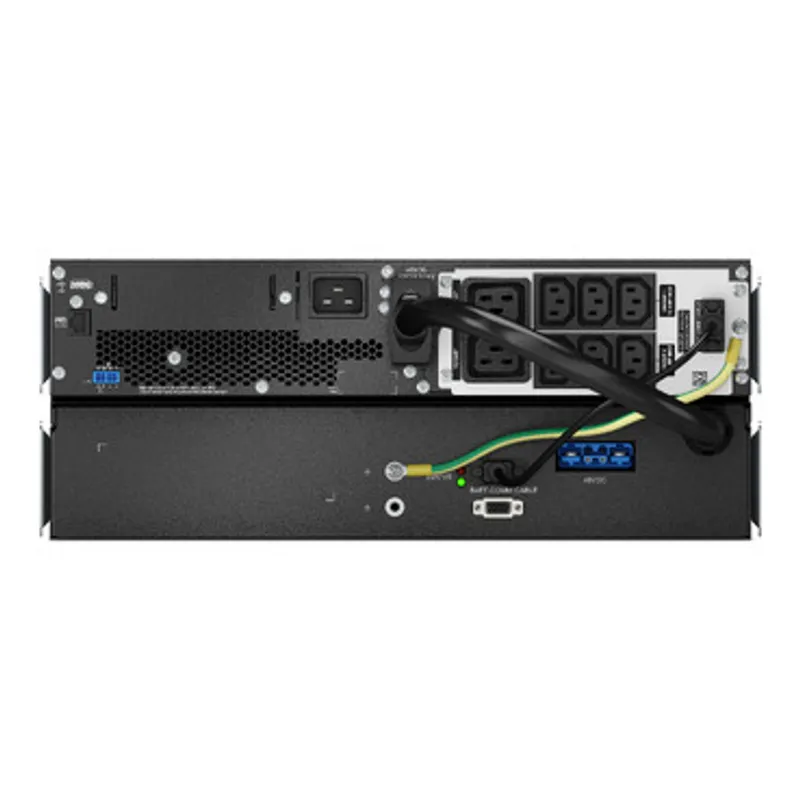

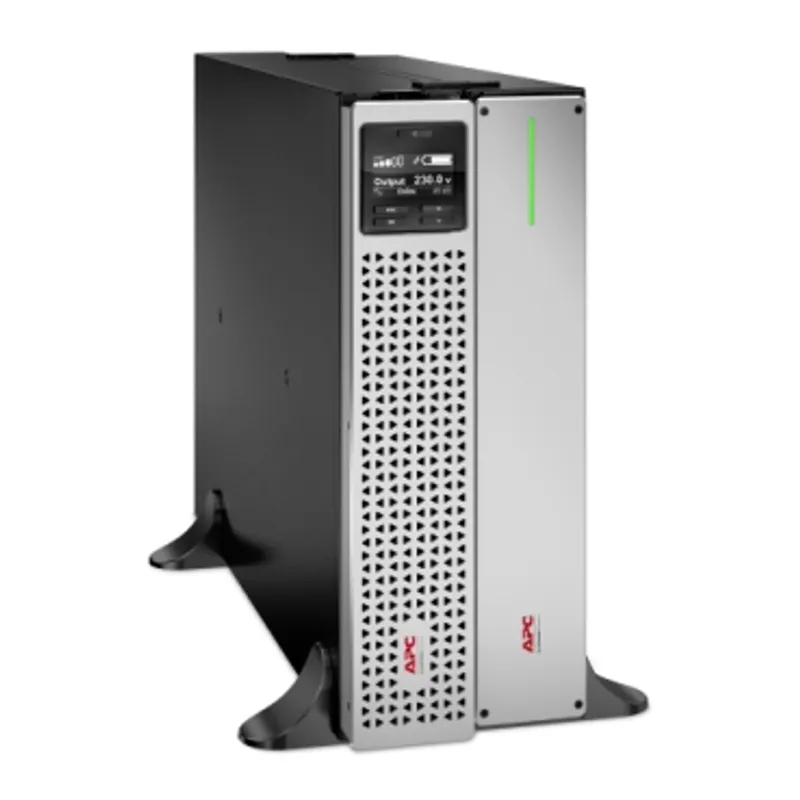

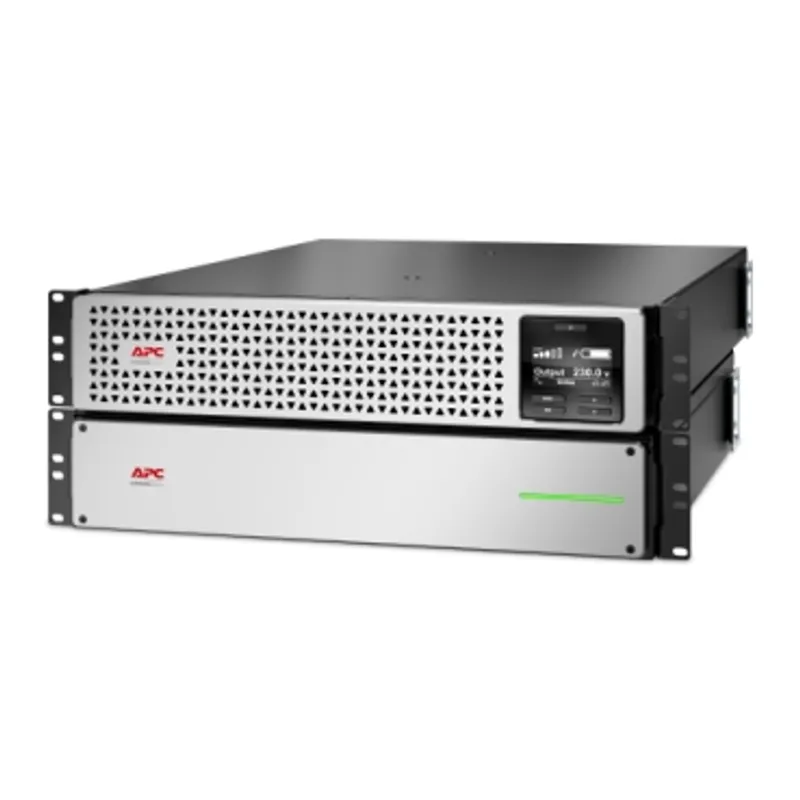

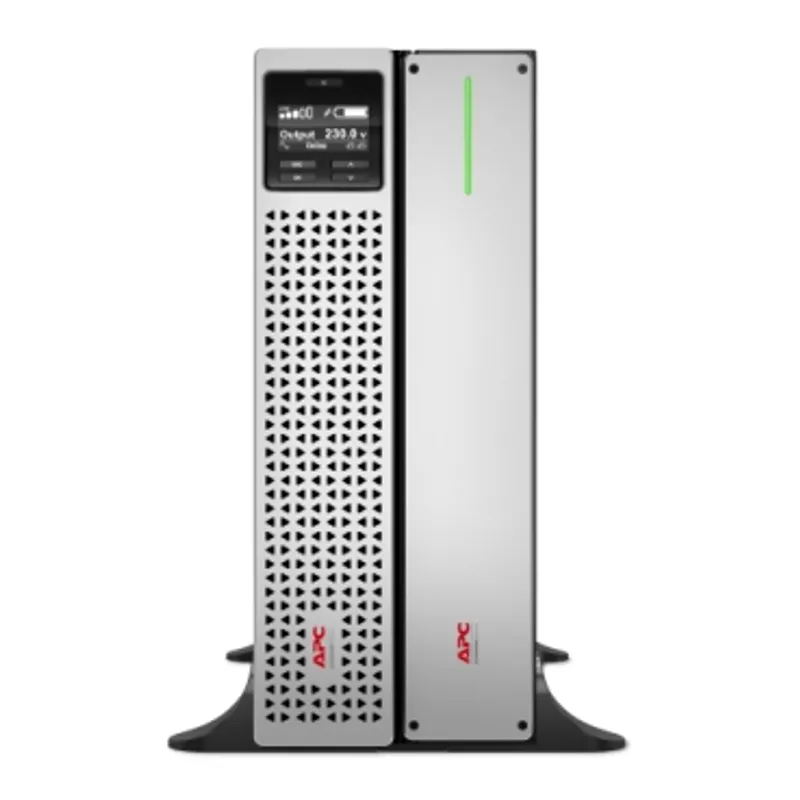

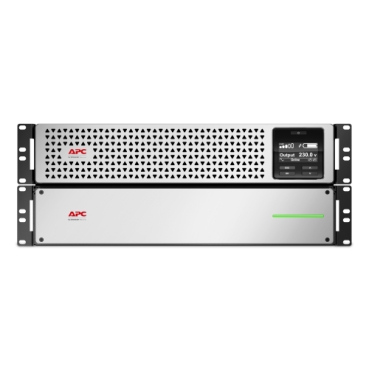

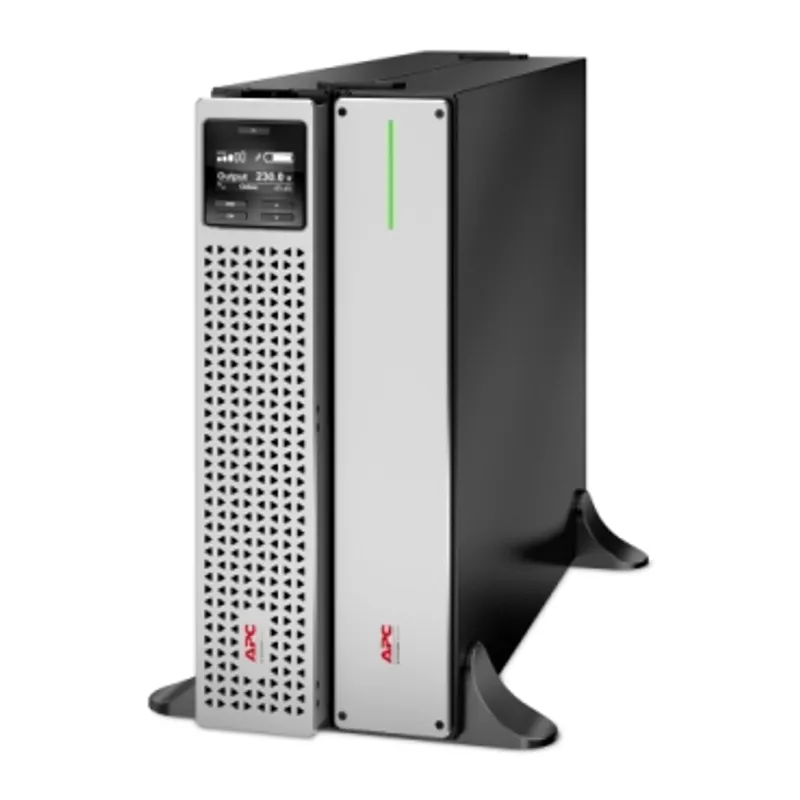

APC Smart-UPS On-Line, 3kVA, Lithium-ion, Rackmount 4U, 230V, 6x C13+2x C19 IEC outlets, SmartSlot, Extended long runtime, Rail kit included
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | APC Smart-UPS On-Line |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 43.2 kg |
Shipping & availability
When can SRTL3000RM4UXLI be shipped?
SRTL3000RM4UXLI is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up SRTL3000RM4UXLI in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for SRTL3000RM4UXLI and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SRTL3000RM4UXLI, subject to availability and destination.
At 2700W/3000VA this Smart-UPS On-Line SRTL3000RM4UXLI Lithium-Ion battery backup system provides high-density, double conversion on-line pure sine wave power. In addition to cleaner, quieter power protection, this UPS is only around half size and weight of comparable UPS systems with similar runtime and has flexible rack and tower installation options. A new extended runtime battery pack provides longer runtime in a small 2U footprint while tripling the life expectancy of the UPS. SRTL 1-3kVA UPSs with this rong runtime battery pack is perfect for applications critical for runtime.
Specifications
Specifications
| Presentation | High density, double-conversion on-line power protection with long runtime |
| Lead time | Usually in Stock |
| Max. Capacity Used | |
| Main Input Voltage | 230 V AC 1 phase |
| Input voltage | 220 V |
| Input Connection Type | IEC 60320 C20 |
| Input voltage limits | 160...275 V |
| Network frequency | 40...70 Hz auto-sensing |
| Output voltage | 220 V |
| Rated power in W | 2700 W |
| rated power in VA | 3000 VA |
| Output connection type | 6 IEC 60320 C13 |
| Bypass type | Built-in bypass |
| Crest factor | 3 : 1 |
| Harmonic distortion | Less than 2 % |
| Maximum configurable power in VA | 3000 VA |
| Maximum configurable power in W | 2700 W |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Battery type | Li-Ion (Lithium-Ion) |
| Emergency power off | Yes |
| Free slots | 1 |
| Alarm | Audible and visible alarms : prioritized by severity |
| UPS connectivity | Serial port, USB port |
| Surge energy rate | 432 J |
| Number of rack unit | 4U |
| Cable length | 1.8 m |
| Number of cables | 1 |
| Colour | Black with silver front bezel |
| Height | 171 mm |
| Width | 432 mm |
| Depth | 639 mm |
| Net weight | 43.2 kg |
| Mounting preference | No preference |
| Mounting mode | Rack-mounted with included kit |
| Two post mountable | 0 |
| USB compatible | Yes |
| Mounting position | Horizontal, Vertical |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Additional specification | Lithium-Ion |
| Redundant | No |
| Range of product | Smart-UPS On-Line |
| Product or component type | Uninterruptible power supply (UPS) |
| Product certifications | CE, UK PSTI |
| Marking | CE Mark |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -20…50 °C |
| Storage altitude | 0…15240 m |
| IP degree of protection | IP20 |
| Relative humidity | 0…95 % non-condensing |
| Storage Relative Humidity | 0…95 % non-condensing |
| Acoustic level | 50 dBA |
| Heat dissipation | 317 Btu/h |
| Operating altitude | 0...10000 ft |
| Run Time | View Runtime Graph |
| Battery voltage | 48 V |
| Extended runtime | 1 |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery life | 5…10 year(s) |
| Battery charger power | 158 W rated |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 24.5 cm |
| Package 1 Width | 60 cm |
| Package 1 Length | 81 cm |
| Package 1 Weight | 56.5 kg |
| Warranty (in months) | 60 |
