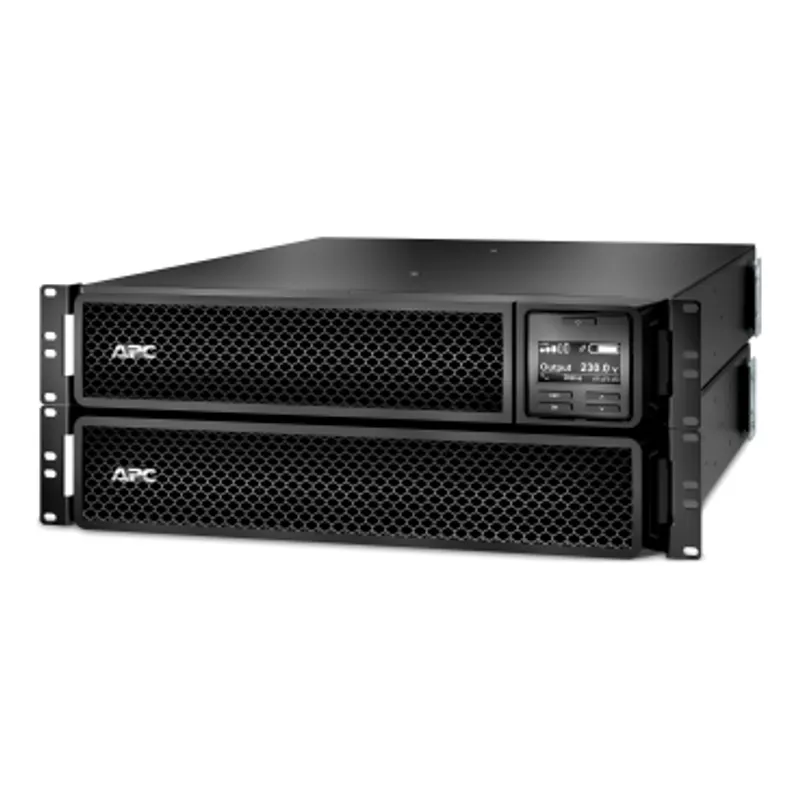

APC Smart-UPS On-Line, 2200VA, Rackmount 2U, 230V, 8x C13+2x C19 IEC outlets, Network Card, Extended runtime, W/ rail kit
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | APC Smart-UPS On-Line |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 25 kg |
Shipping & availability
When can SRT2200RMXLI-NC be shipped?
SRT2200RMXLI-NC is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up SRT2200RMXLI-NC in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for SRT2200RMXLI-NC and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SRT2200RMXLI-NC, subject to availability and destination.
This APC Smart-UPS SRT2200RMXLI-NC is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2200VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with BS1363A British, IEC 320 C20, and Schuko CEE 7/EU1-16P inputs, 8x IEC 320 C13 and 2x IEC 320 C19 outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
Specifications
Specifications
| Presentation | High density, double-conversion on-line power protection with scalable runtime. |
| Lead time | Usually in Stock |
| Max. Capacity Used | |
| Main Input Voltage | 230 V AC 1 phase |
| Input voltage | 220 V, 240 V |
| Input Connection Type | BS1363A British, IEC 60320 C20, Schuko CEE 7 / EU1-16P |
| Input voltage limits | 100...275 V adjustable (half load) |
| Network frequency | 40...70 Hz auto-sensing |
| Output voltage | 220 V, 240 V |
| Rated power in W | 1980 W |
| rated power in VA | 2200 VA |
| Output connection type | 8 IEC 60320 C13, 2 IEC Jumpers, 2 IEC 60320 C19 |
| Bypass type | Built-in bypass |
| Crest factor | 3 : 1 |
| Harmonic distortion | Less than 2 % |
| Maximum configurable power in VA | 2200 VA |
| Maximum configurable power in W | 1980 W |
| UPS type | On-Line |
| Wave type | Sine wave |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Battery type | Lead-acid battery |
| Emergency power off | Yes |
| Free slots | 1 |
| Preinstalled device | Network management card 3 with environmental monitoring |
| Alarm | Audible and visible alarms : prioritized by severity |
| UPS connectivity | Serial port, USB port, Pre-installed network management card 3 |
| Surge energy rate | 340 J |
| Number of rack unit | 2U |
| Cable length | 2.4 m |
| Number of cables | 1 |
| Colour | Black |
| Height | 85 mm |
| Width | 432 mm |
| Depth | 584 mm |
| Net weight | 25 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted with kit sold separately |
| Two post mountable | 0 |
| USB compatible | Yes |
| Mounting position | Horizontal |
| Provided equipment | CD with software, Country-specific detachable power cord, Documentation CD, Installation guide, Network management card, Rack mounting hardware, Rack mounting brackets, Rack mounting support rails, USB cable, Warranty card |
| Number of power module | 1400 |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Additional specification | High density |
| Redundant | No |
| Range of product | Smart-UPS On-Line |
| Product or component type | Uninterruptible power supply (UPS) |
| Product certifications | CE, EAC, RCM, VDE, UK PSTI |
| Marking | CE Mark |
| Standards | EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -20…50 °C |
| Storage altitude | 0…15240 m |
| IP degree of protection | IP20 |
| Relative humidity | 0…95 % non-condensing |
| Storage Relative Humidity | 0…95 % non-condensing |
| Acoustic level | 55 dBA |
| Heat dissipation | 535 Btu/h |
| Operating altitude | 0...10000 ft |
| Run Time | View Runtime Graph |
| Efficiency | View Efficiency Graph |
| Battery voltage | 72 V |
| Extended runtime | 1 |
| Number of battery filled slots | 1 |
| Number of battery free slots | 0 |
| Battery recharge time | 3 h |
| Number of battery replacement quantity | 1 |
| Battery life | 3…5 year(s) |
| Replacement battery | APCRBC141 |
| Battery charger power | 122 W rated |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 24.5 cm |
| Package 1 Width | 60 cm |
| Package 1 Length | 81.5 cm |
| Package 1 Weight | 33.105 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 3 |
| Package 2 Height | 90.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 111.315 kg |
| Warranty (in months) | 36 UPS|24 Battery |
