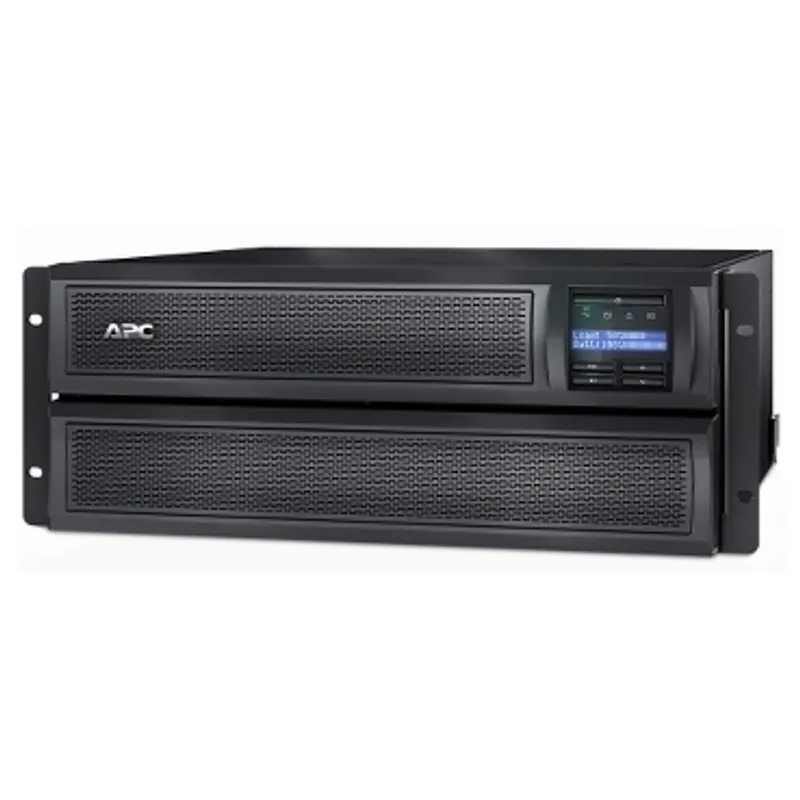

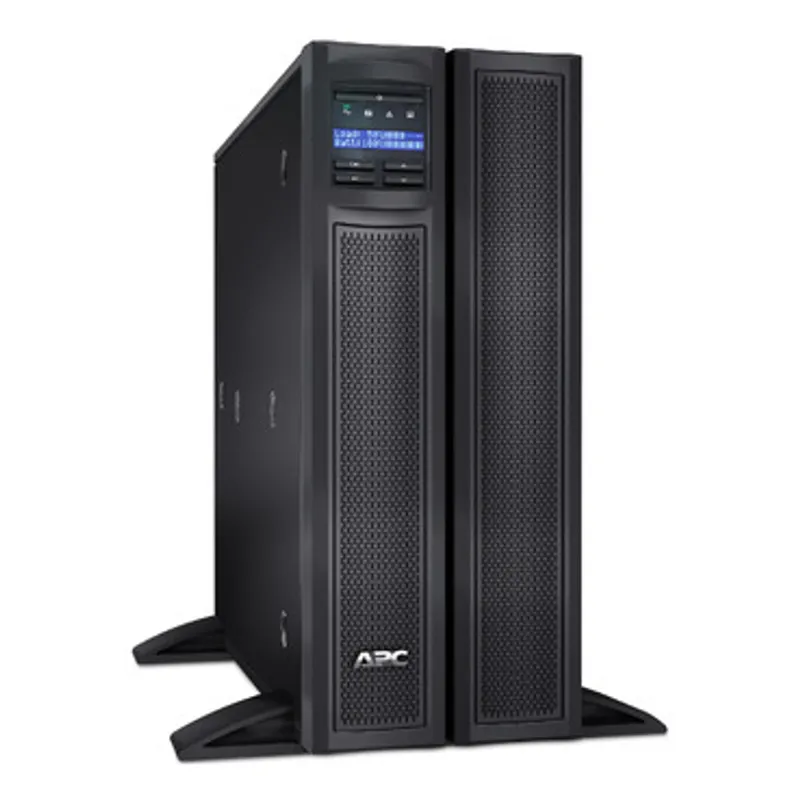

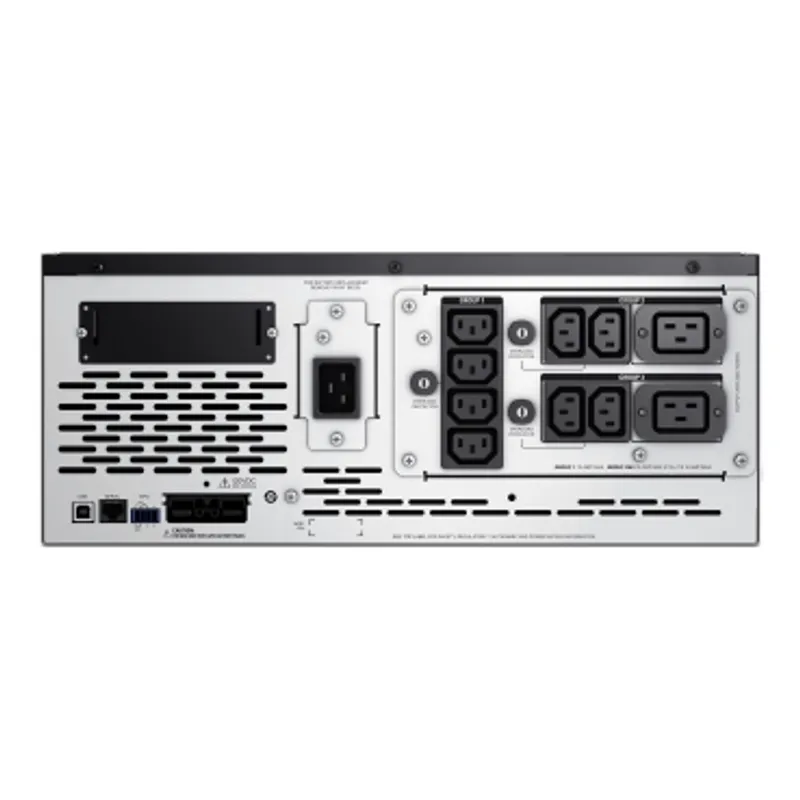

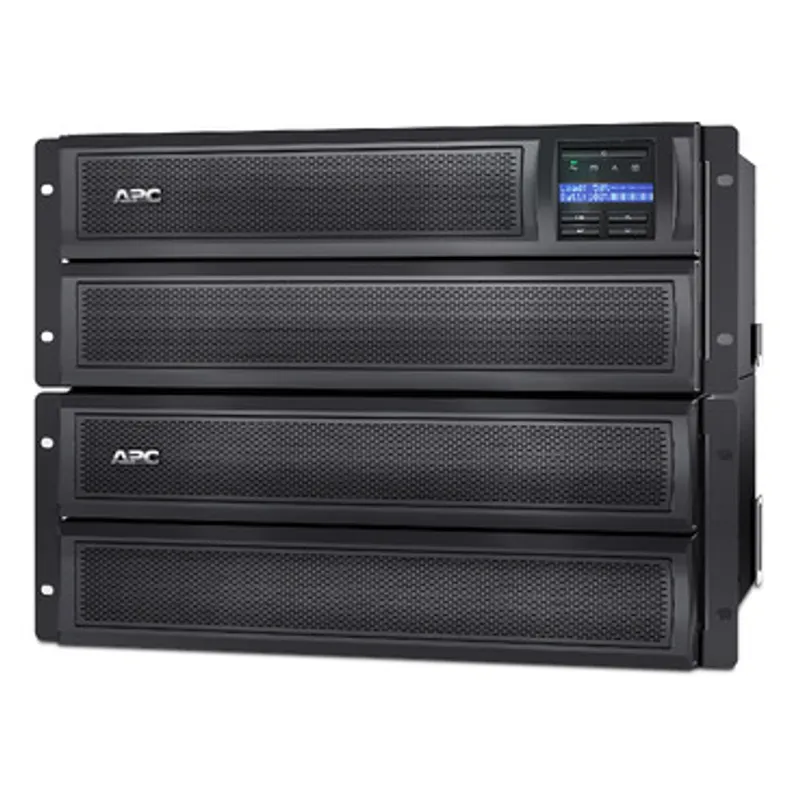

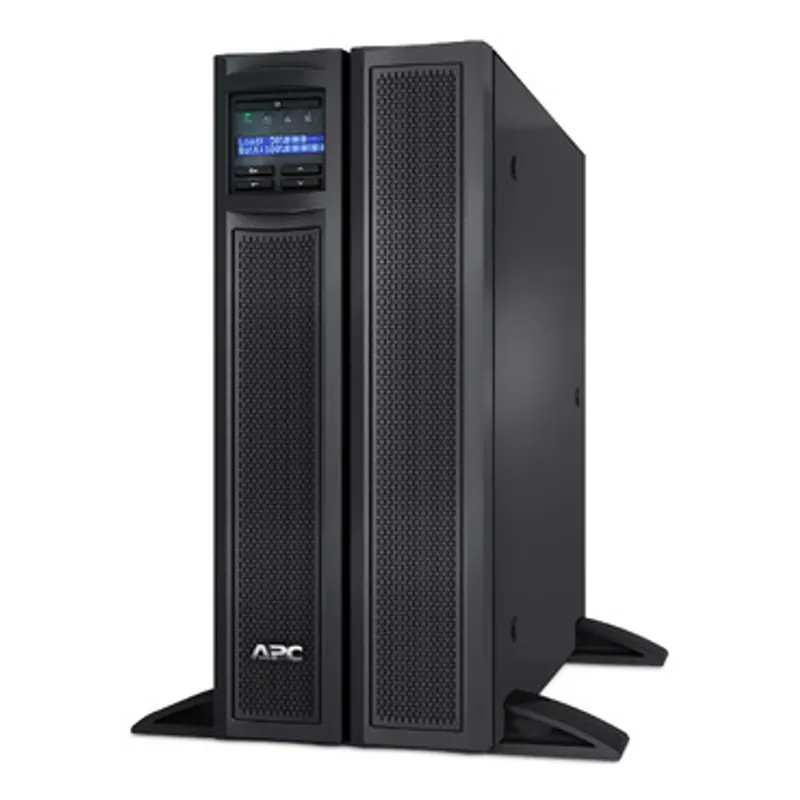

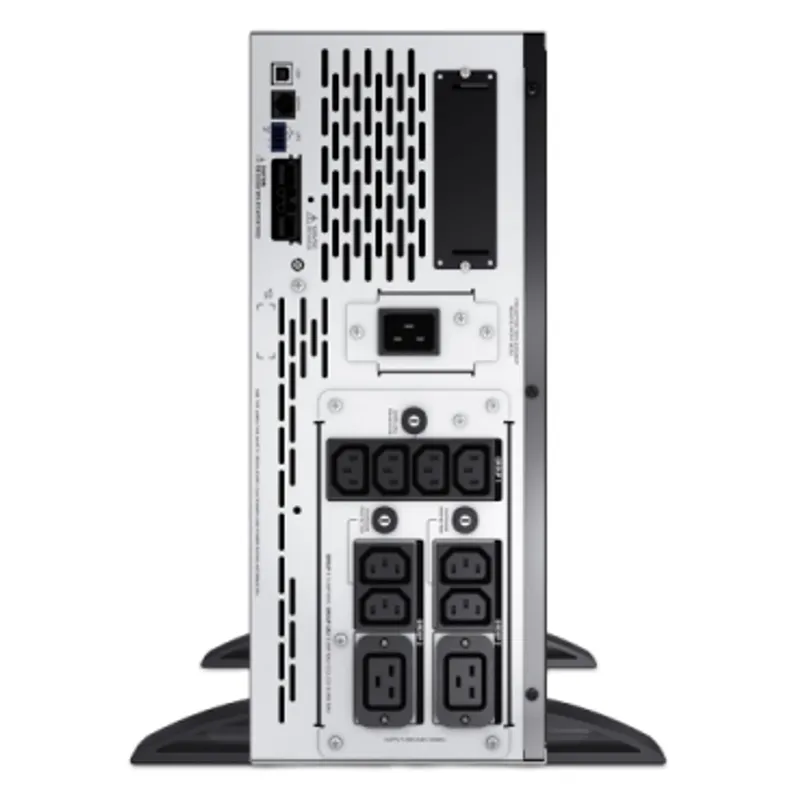

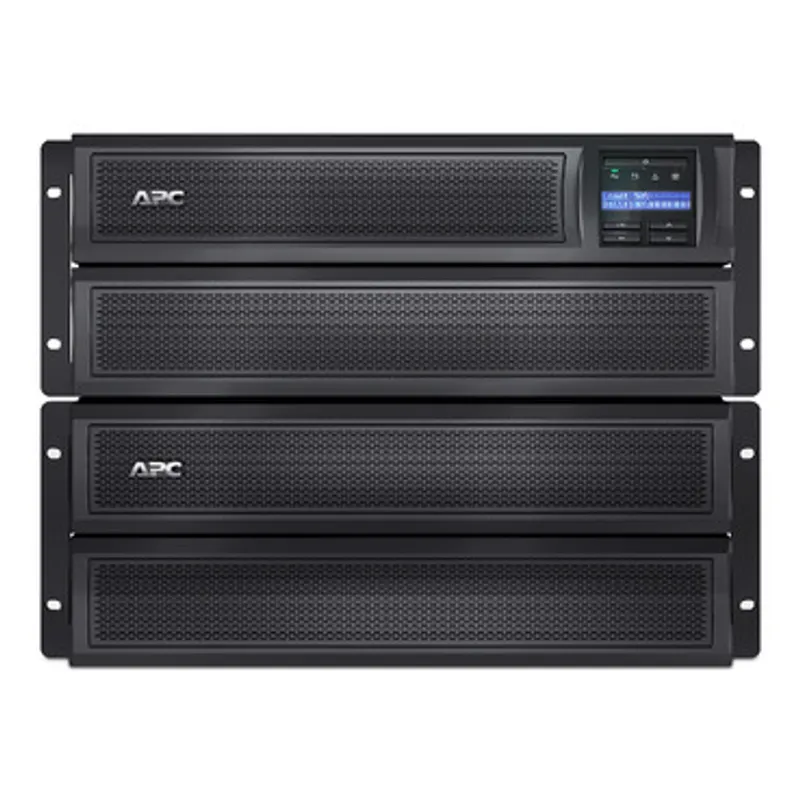

APC Smart-UPS X, Line Interactive, 3kVA, Rack/tower convertible 4U, 200V-240V, 8x C13+2x C19 IEC, SmartSlot, Extended runtime, Short depth
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | APC Smart-UPS |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 38.64 kg |
Shipping & availability
When can SMX3000HV be shipped?
SMX3000HV is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up SMX3000HV in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for SMX3000HV and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SMX3000HV, subject to availability and destination.
This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 3kVA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C20 input (includes BS1363A, IEC 320 C20 and Schuko CEE 7/EU1-16P power cords), 8x IEC 320 C13 and 2x IEC 320 C19 outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It comes with BS1363A British, IEC 320 C20, Schuko CEE 7/EU1-16P input, 8x IEC 320 C13 and 2x IEC 320 C19 outlets, and 2x IEC jumper cables. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
Specifications
Specifications
| Presentation | Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices. |
| Lead time | Usually in Stock |
| Max. Capacity Used | |
| Main Input Voltage | 208 V AC, 230 V AC |
| Input voltage | 220 V, 240 V |
| Input Connection Type | IEC 320 C20, Schuko CEE 7 / EU1-16P, BS1363A British |
| Input voltage limits | 140...280 V |
| Network frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Output voltage | 208 V, 220 V, 240 V |
| Rated power in W | 2700 W |
| rated power in VA | 3000 VA |
| Output connection type | 8 IEC 320 C13, 2 IEC Jumpers, 2 IEC 320 C19 |
| Crest factor | 3 : 1 |
| Harmonic distortion | Less than 5 % |
| Maximum configurable power in VA | 3000 VA |
| Maximum configurable power in W | 2700 W |
| Transfer time | 6 ms typical : 10 ms maximum |
| UPS type | Line interactive |
| Wave type | Sine wave |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Battery type | Lead-acid battery |
| Control panel | LED status display with on line : on battery : replace battery and overload indicators |
| Emergency power off | Yes |
| Free slots | 1 |
| Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
| UPS connectivity | Serial port, USB port, Available expansion slot |
| Surge energy rate | 645 J |
| Noise suppression | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Number of rack unit | 4U |
| Cable length | 1.8 m |
| Number of cables | 1 |
| Colour | Black |
| Height | 432 mm |
| Width | 178 mm |
| Depth | 483 mm |
| Net weight | 38.64 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Tower |
| Two post mountable | 1 |
| USB compatible | Yes |
| Provided equipment | CD with software, Documentation CD, Smart UPS signalling RS-232 cable, User manual, USB cable, Rack mounting brackets |
| Number of power module | 0 |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Additional specification | Extended run |
| Redundant | No |
| Range of product | Smart-UPS |
| Product or component type | Uninterruptible power supply (UPS) |
| Product certifications | CE, EAC, IRAM, RCM, TISI, VDE, UK PSTI |
| Standards | EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| Relative humidity | 0…95 % |
| Storage Relative Humidity | 0…95 % |
| Acoustic level | 55 dBA |
| Heat dissipation | 184 Btu/h |
| Operating altitude | 0...10000 ft |
| Run Time | View Runtime Graph |
| Efficiency | View Efficiency Graph |
| Extended runtime | 1 |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 3 h |
| Number of battery replacement quantity | 1 |
| Battery life | 3…5 year(s) |
| Replacement battery | APCRBC143 |
| Battery charger power | 245 W rated |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 33.000 cm |
| Package 1 Width | 59.500 cm |
| Package 1 Length | 64.500 cm |
| Package 1 Weight | 47.630 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 114.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 297.780 kg |
| Pallet unit layers | 2 |
| Pallet layers | 4 |
| Warranty (in months) | 36 UPS|24 Battery |
