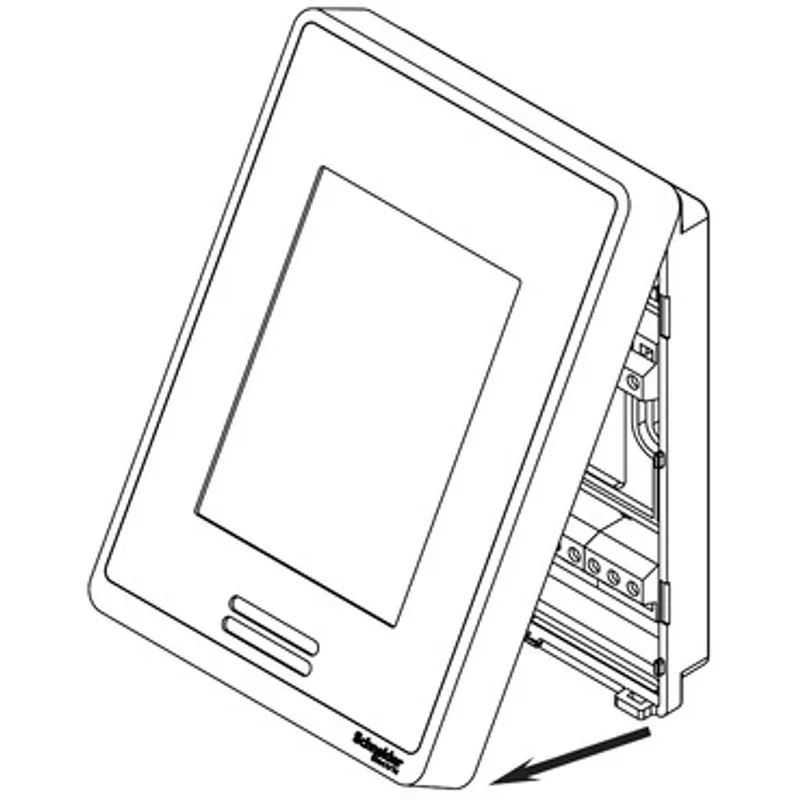

Roof Top Unit, Heat Pump & Indoor Air Quality Controller, BACnet MS/TP, RH sensor & control, PIR motion sensor, Zigbee Pro, Silver Case/Fascia

Name: Roof Top Unit, Heat Pump & Indoor Air Quality Controller, BACnet MS/TP, RH sensor & control, PIR motion sensor, Zigbee Pro, Silver Case/Fascia
Brand: Schneider Electric
SKU: SE8650U5B00P

MPN: SE8650U5B00P · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	SpaceLogic™ SE8000 Room Controller
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.34 kg

Shipping & availability

When can SE8650U5B00P be shipped?

SE8650U5B00P is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up SE8650U5B00P in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for SE8650U5B00P and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SE8650U5B00P, subject to availability and destination.

Specifications

AWG gauge	AWG 22...AWG 18
Width	86 mm
Market segment	Hotel, Lodging, Small commercial, Buildings, Healthcare, Non-critical buildings, Office, Residential, School
Device application	Staging equipment (RTU/HP)
Net weight	340 g
Product or component type	Roof top unit
Product name	SE8000 Series
Device short name	SE8600
Height	120 mm
Directives	2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive, 2014/53/EU - radio equipment directive
Housing colour	Silver
Ambient air temperature for storage	-30…50 °C
Depth	25 mm
Ambient air temperature for operation	0…50 °C
Measurement accuracy	Temperature: +/- 0.5 °C,, Humidity: +/- 5 %, 20...80 % RH (non-condensing), Humidity: +/- 10 %, 10...20 % (non-condensing), Humidity: +/- 10 %, 80...90 % (non-condensing)
Information displayed	Temperature: - 40...122 °F
Network frequency	60 Hz, 50 Hz
Communication port protocol	BACnet MS/TP, Zigbee Pro, Modbus RTU
Input voltage	0...10 V
Temperature setting range	12…37.5 °C cooling, 4.5…32 °C heating
Standards	EN/IEC 60730-1, EN/IEC 60730-2-9, EN/IEC 60730-2-13, CSA E60730-2-9, UL 60730-2-9, UL 60730-2-13, ICES-003, FCC part 15 Subpart B, ETSI EN 300 328:v2.1.1, ETSI EN 301 489-1:v1.9.2, FCC part 15 Subpart C, ETSI EN 301 489-17:v2.2.1, 2012, RSS 247
Relative humidity	0…75 %
[Us] rated supply voltage	24 V AC 50/60 Hz +/- 15 %
Output voltage	24 V AC/DC for relay output, 0...10 V DC for analog output, 0...10 V AC/DC for voltage output
Output type	5 xdiscrete, 5 xrelay output, 5 xdigital (relay), 4 xuniversal, 4 xanalog
Output current	1 A relay output, 3 A relay output (inrush)
Sensor type	10 kOhm T2 NTC thermistor temperature, Space RH sensor humidity, Single point calibrated bulk polymer RH sensor humidity
Input type	2 x discrete, 2 x dry contact, 5 x analog
Humidity setting range	30…95 %
Range	EcoStruxure Building Expert
Economizer	Yes
Humidity control	Yes
PIR cover	Yes
Scheduling	Yes
surface treatment	Untreated
Surface finish	Matt
Function available	HVAC control, Available with CO2/RH/T, Brightness sensor, Changes can be made directly over display, Code lock function, Easily configurable, Firmware update by USB, Fan control
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	8.6 cm
Package 1 Width	12.0 cm
Package 1 Length	2.5 cm
Package 1 Weight	245.0 g
Warranty (in months)	18
