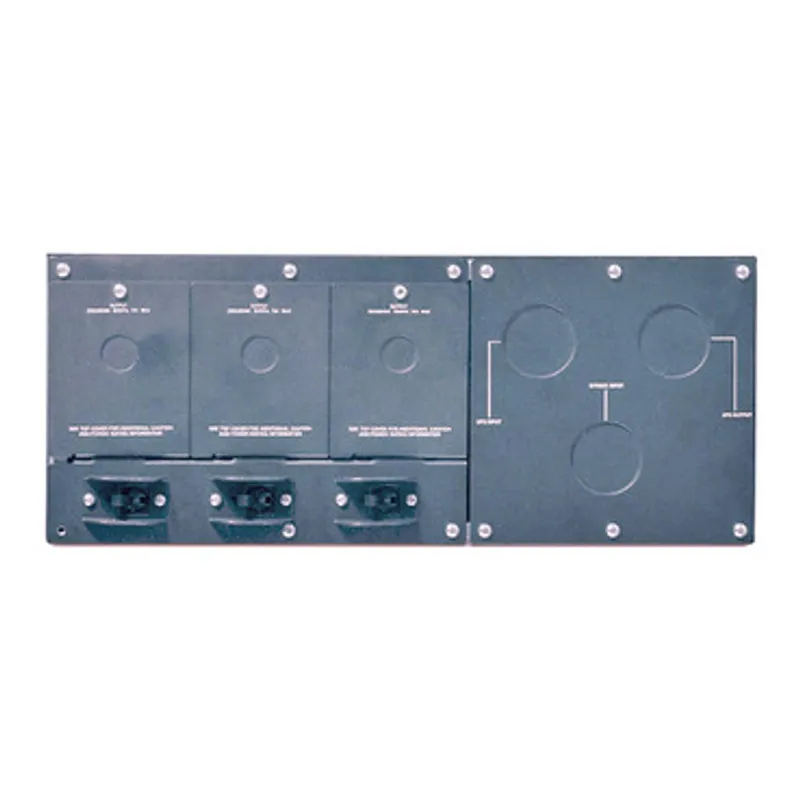

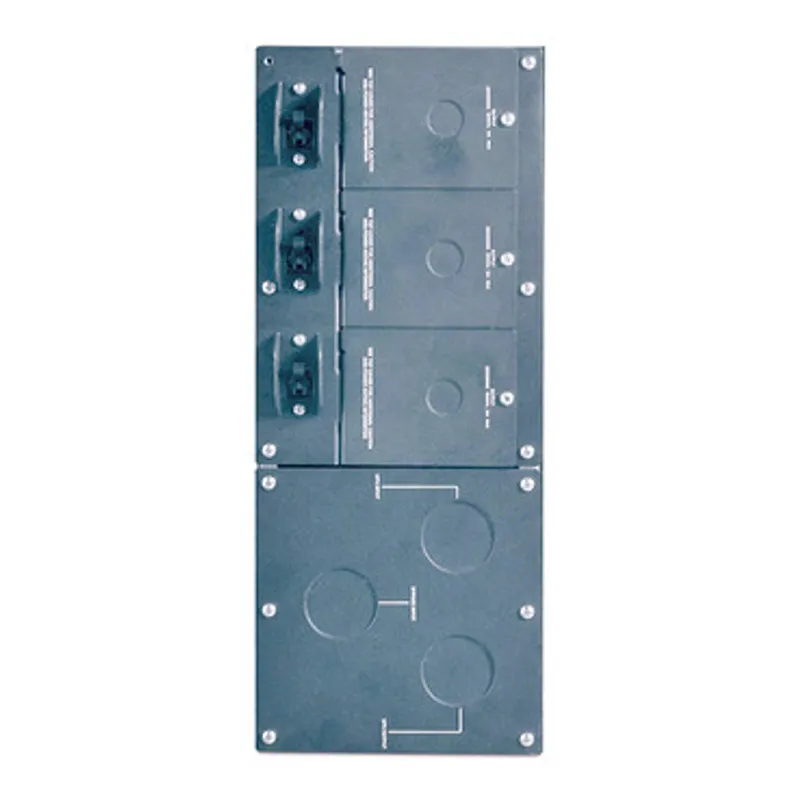

APC Service Bypass Panel- 230V; 100A; MBB; Hardwire input; (3) 30A Hardwire Output

Name: APC Service Bypass Panel- 230V; 100A; MBB; Hardwire input; (3) 30A Hardwire Output
Brand: Schneider Electric
SKU: SBP16KRMI4U

MPN: SBP16KRMI4U · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Maintenance Bypass Panels
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	21.82 kg

Shipping & availability

When can SBP16KRMI4U be shipped?

SBP16KRMI4U is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up SBP16KRMI4U in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for SBP16KRMI4U and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SBP16KRMI4U, subject to availability and destination.

Specifications

Lead time	Usually in Stock
Main Input Voltage	230 V
Product or component type	Bypass kit
Main Output Voltage	230 V
Output connector type	Hard wire 3-wire (H N + E) for 3 zone(s)
Number of rack unit	4U
Number of cables	1
Provided equipment	Installation guide, Rack mounting brackets, User manual
Range of product	Maintenance Bypass Panels
Colour	Black
Height	178 mm
Width	432 mm
Depth	673 mm
Net weight	21.82 kg
Mounting location	Front
Mounting preference	Lower
Mounting mode	Rack-mounted
Network frequency	50/60 Hz
Number of input connectors	1 hard wire 3-wire (H N + E), 1 hard wire 4-wire (3P + E)
Max line current	100 A
Input current limits	100 A
Load capacity	20000 VA
Power factor	0…1
Max current draw	100 A
Protection type	Circuit breaker
Efficiency	99 %
Product certifications	CSA, GOST
Standards	EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
Ambient air temperature for operation	-20…45 °C
Relative humidity	0…95 %
Operating altitude	0...15000 ft
Ambient air temperature for storage	-40…65 °C
Storage Relative Humidity	0…95 %
Storage altitude	0…15240 m
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	30.5 cm
Package 1 Width	61 cm
Package 1 Length	99.1 cm
Package 1 Weight	31.753 kg
Unit Type of Package 2	PAL
Number of Units in Package 2	8
Package 2 Height	129.5 cm
Package 2 Width	100 cm
Package 2 Length	120 cm
Package 2 Weight	266.08 kg
Warranty (in months)	24
